Vialit Adhesion Test Apparatus. Used to assess the adhesion property of aggregates to bitumen.

Ref. Standard

As Per IS, BS Standard

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC - 2338

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

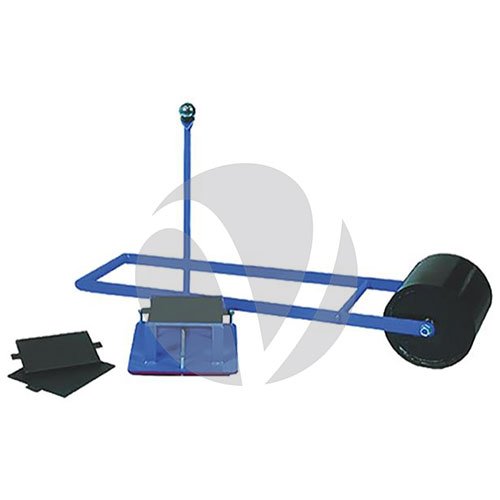

The method is a check on the adhesion of aggregates to be applied to the surface of wearing course rolled asphalt. Supplied complete with a metal basement with three vertical pointed rods to hold the flat steel plate, 50 cm. high vertical rod with a slot at the upper end for the steel ball to drop, a 512 g steel ball, 6 metal test plates, and a hand-operated rubber wheel roller. The mechanical aggregate deployment should be ordered separately.

SPECIFICATIONS

The apparatus consists of a metal basement with three vertical pointed rods to hold the test plate; vertical rod 50 cm high with a shot at the upper end for the steel ball to drop; a 512 g steel ball; a supply of 6 metal test plates; a hand-operated rubber-lined roller with lead shots ballast. The test plate, coated by bitumen on one face and spread by the aggregate chippings in a standard way is rolled by the roller and then placed on the three-point support of the basement.
The steel ball drops three times from the shot and the loose chippings are counted and checked.

FEATURES

  • Flat Steel Plates, 6 pcs.
  • Steel Ball, 512 g.
  • Rubber Wheel Roller, hand-operated.

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
