Vertical & Horizontal Laboratory Condenser VSLIC-HM17

short info

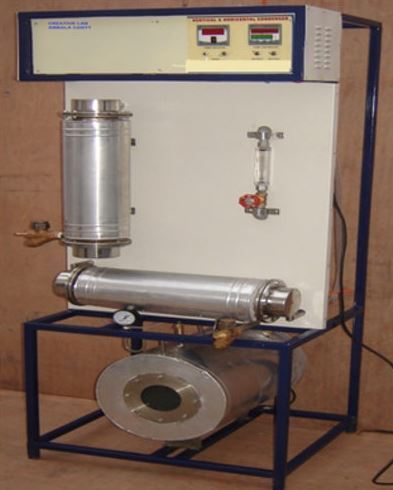

Shell Tube Type Condensers Are Widely Used In Various Industries. The Present Set-Up Offers A Comparative Study Of Vertical Horizontal Condenser, Which Can Be Operated One At A Time. Condenser Consists Of Stainless Steel Shell, With Stainless Steel Tubes. Cold Fluid Flows Through Inside The Tubes And Steam Flows Through The Shell. Valves Are Provided To Control The Flow Rates Of Cold Fluids. Flow Rate Of Cold Water Is Measured Using A Rota Meter.

Model

VSLIC-HM17

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Shell Tube Type Condensers Are Widely Used In Various Industries. The Present Set-Up Offers A Comparative Study Of Vertical Horizontal Condenser, Which Can Be Operated One At A Time. Condenser Consists Of Stainless Steel Shell, With Stainless Steel Tubes. Cold Fluid Flows Through Inside The Tubes And Steam Flows Through The Shell. Valves Are Provided To Control The Flow Rates Of Cold Fluids. Flow Rate Of Cold Water Is Measured Using A Rota Meter. Shell Is Fitted With Steam Traps From Where Condensate Is Collected In Measuring Cylinder. Temperature Of Inlet And Outlet Of Both Hot Cold Fluids Are Measured By Temperature Sensors.

Learning Objectives/Experiments:

  • To Determine The Overall Heat Transfer Co-Efficient And Film Co-Efficient For Vertical And Horizontal Condenser

Technical Specifications:

  • System : Steam To Water
  • Condensers: 2 Nos (Vertical Horizontal) Insulated By Ceramic Wool And Cladding By Aluminium Foil
  • Shell : Material Stainless SteelInner Dia 100 Mm, Length 500 Mm (Approx)
  • Tubes : Od 127mm, Length Of Tubes 500mm
  • Condensate Measurement : Measuring Cylinder Stopwatch
  • Water Flow Measurement : Rotameter
  • Steam Generator: Made Of Stainless Steel Fitted With Level Indicator, Pressure Gauge, Safety Valve, Drain And Insulated With Ceramic Wool Cladding With Aluminium Foil
  • Heaters: Nichrome Wire Heater (2 Nos)
  • The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure

Control Panel:

  • Digital Temp Controller: 01999°c (For Steam Generator)
  • Digital Temp Indicator: 0-1999°c, With Multi-Channel Switch
  • Temperature Sensors: Rtd Pt-100 Type
  • Standard Make On/Off Switch, Mains Indicator Etc
