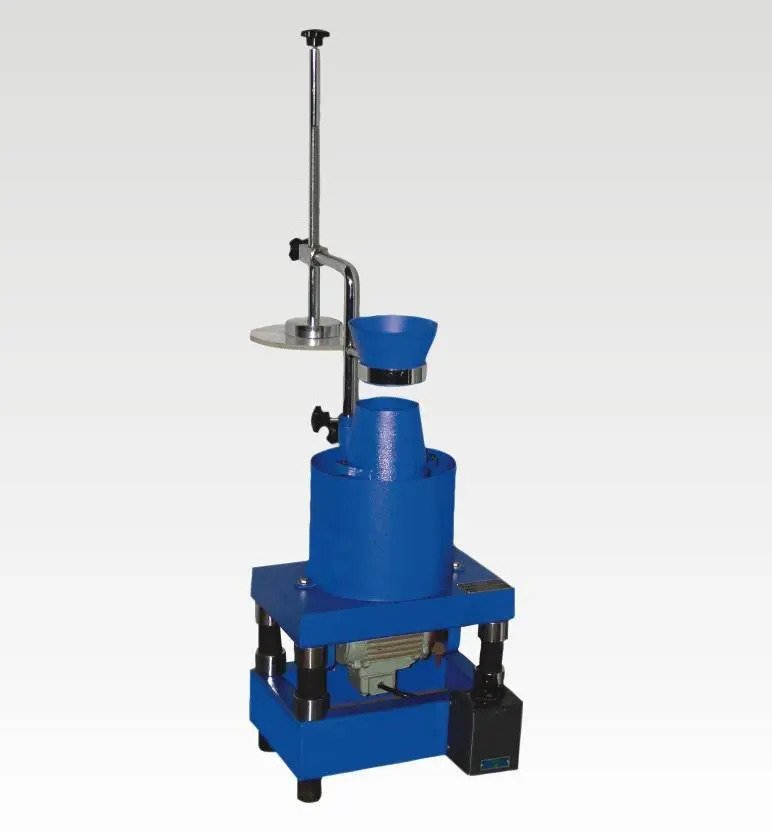

Vee Bee Consistometer VSLIC-C200

short info

Vee Bee Consistometer instrument is used for workability as well as consistency of fresh concrete. A slump Cone and a graduated rod supplied with the instrument helps the operator to find out slump values and vibration table with container and acrylic disc is used to find out workability of concrete expressed in Vee Bee degrees, which is defined as the time in seconds to complete required vibrating at which the fresh concrete flows out sufficiently to come in contract of the entire face of acrylic disc.

Standard

IS:10510, IS:1199, BS 1881(Part104)

Model

VSLIC-C200

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

The instrument is used for workability as well as consistency of fresh concrete. A slump Cone and a graduated rod supplied with the instrument helps the operator to find out slump values and vibration table with container and acrylic disc is used to find out workability of concrete expressed in Vee Bee degrees, which is defined as the time in seconds to complete required vibrating at which the fresh concrete flows out sufficiently to come in contract of the entire face of acrylic disc.

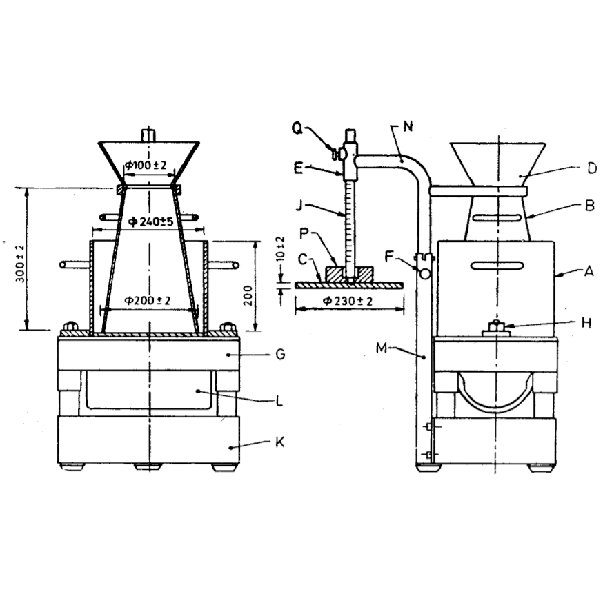

The equipment consists:

Used for estimation of consistency of concrete mix by determination of the time required for transforming sample of fresh concrete in the form of a frustum of a cone into a cylinder by standard vibration.

  • A slump cone 100 mm inside dia at top, 200 mm inside dia at base and 300 mm high.
  • One container for the slump cone with two clamps and lifting handles.
  • A vibrating table mounted on rubber shock absorbers and having a swivel arm attached on one side. The swivel arm carries a funnel on one side and a graduated rod with a Perspex disc on the other side. The rod is graduated in centimeters to measure the slump and volume in the cylinder after vibration.
  • A vibrating table size 380 mm long and 260 mm wide, resting upon elastic support at a height of about 305 mm above the floor, complete with Start/Stop switch, cord and plug.
  • A holder is fixed to the base in to which a swivel arm is telescoped with funnel and guide swivel arm is also detachable from the vibrating table.
  • The divisions of scale on the rod record the slump of the concrete in millimeters.
  • Supplied complete with a sheet metal container with lifting handles which can easily be fixed to the vibrating table.

Suitable for operation on 440 V, 50 Hz, 3 phase supply.


Related Searches

SPECIFICATIONS

Supplied complete with a sheet metal container with lifting handles which can easily be fixed to the vibrating table. A slump cone open at both ends with lifting handles and a tamping rod of size 16 mm dia and 600 mm long rounded at both ends.

FEATURES

The instrument is used for workability as well as consistency of fresh concrete. A slump Cone and a graduated rod supplied with the instrument helps the operator to find out slump values and vibration table with container and acrylic disc is used to find out workability of concrete expressed in Vee Bee degrees, which is defined as the time in seconds to complete required vibrating at which the fresh concrete flows out sufficiently to come in contract of the entire face of acrylic disc.

The equipment consists:

Used for estimation of consistency of concrete mix by determination of the time required for transforming sample of fresh concrete in the form of a frustum of a cone into a cylinder by standard vibration.

  • A slump cone 100 mm inside dia at top, 200 mm inside dia at base and 300 mm high.
  • One container for the slump cone with two clamps and lifting handles.
  • A vibrating table mounted on rubber shock absorbers and having a swivel arm attached on one side. The swivel arm carries a funnel on one side and a graduated rod with a Perspex disc on the other side. The rod is graduated in centimeters to measure the slump and volume in the cylinder after vibration.
  • A vibrating table size 380 mm long and 260 mm wide, resting upon elastic support at a height of about 305 mm above the floor, complete with Start/Stop switch, cord and plug.
  • A holder is fixed to the base in to which a swivel arm is telescoped with funnel and guide swivel arm is also detachable from the vibrating table.
  • The divisions of scale on the rod record the slump of the concrete in millimeters.
  • Supplied complete with a sheet metal container with lifting handles which can easily be fixed to the vibrating table.

Suitable for operation on 440 V, 50 Hz, 3 phase supply.

PRODUCT VIDEO

WORKING PRINCIPALNew
