Vane Shear Apparatus-Field Type VSLIC - 233

short info

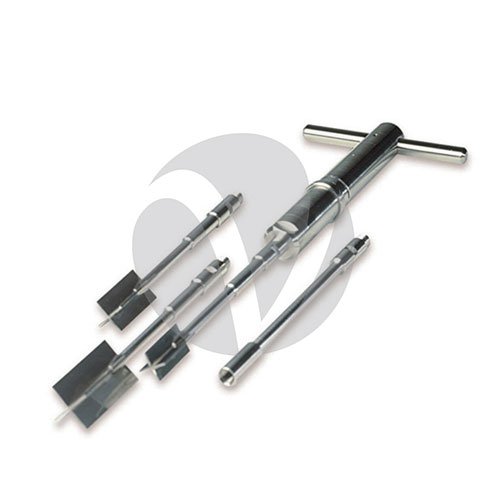

Vane Shear Apparatus-Field Type is designed for conducting an in situ vane shear test from the bottom of a borehole in saturated cohesive deposits for determining their in place shearing resistance.

Standard

ASTM : D2573

Model

VSLIC - 233

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

The vane shear test apparatus consists of a four-blade stainless steel vane attached to a steel rod that will be pushed into the ground. The height of the vane is usually twice its overall widths and is often equal to 10 cm or 15 cm.
The equipment consists of a torque applicator assembly mounted on a base. A gear wheel, which is marked in degrees, holds a torque ring and is geared to a crank.


Related Searches

SPECIFICATIONS

A typical vane shear test kit usually contains the following items:

  • Torque wrench.
  • Drive head.
  • Extension rods, usually D20/D22x1000 mm.
  • Spanner for extension rod.
  • 2 or 3 Vane sizes. Common sizes: 19×38 mm, 25x50mm, 30x60mm, 75.8×151.5 mm.
  • Transport Case.

FEATURES

  • It consists of a straight rod with four vanes on one end.
  • strength is less than 15 KN/m2.
  • The test can be conducted in a laboratory or in the field.

PRODUCT VIDEO

WORKING PRINCIPALNew
