Unconfined Compressive Strength Test Apparatus -UCS, Motorised
VSLIC-S215
Copyright @2023 Vertex Group
Copyright @2023 Vertex Group
Copyright @2023 Vertex Group
Copyright @2023 Vertex Group
short info

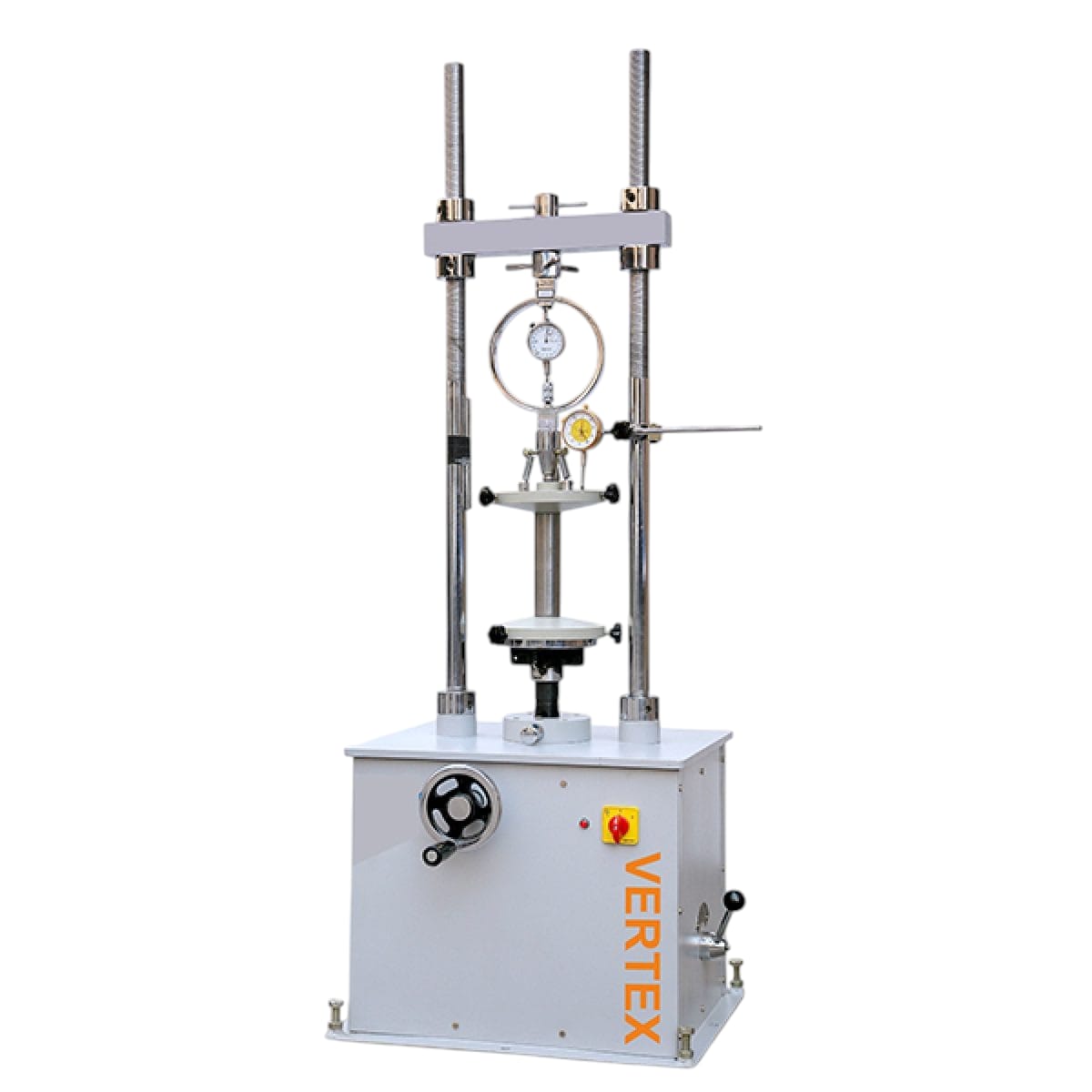

Unconfined Compressive Strength Test Apparatus screw operated load frame, capacity 5000kg(50kN) with a gear box and motor drive giving Rates of strain 1.25, 1.5, 2.5mm/min. , a pair of cone seating, adaptor for proving ring, and stain dial gauge bracket. Supplied with one pair of male/female coning tools for 38mm dia samples but without ring and dial gauge. Suitable for operation on 230 V, Single Phase A.C. Supply. Accessories:
Coning tools in pairs (Male & Female) for samples having diameter 38, 50, 75 & 100mm
Standard
IS 2720 (PART X) ASTM T 208
Model
VSLIC-S215
Origin
Indian
Make/ OEM
VERTEX
Warranty
This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.
All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.
What is unconfined compressive strength test of soil?
The unconfined compression test is the most popular laboratory test used to determine the Unconfined Compressive Strength (UCS) of a rock specimen. The unconfined compression test method is used primarily for saturated, cohesive soils recovered from thin-walled sampling tubes. But the test is inappropriate for dry sands or crumbly clays because these materials would fall apart without some land of lateral confinement.
Unconfined Compressive Strength (UCS) stands for the maximum axial compressive strain that a specimen can bear under zero confining stress.
Product Overview
Determination of soil shear strength is essential for designing the foundation of structures, soil and soil retaining structures, soil slopes, etc., Shear strength of soil depends on various factors and insitu soil conditions. Therefore, when laboratory tests in soil are performed to evaluate shear strength of soil, the insitu soil conditions and other factors should be simulated for obtaining meaningful results. For example, the Unconsolidated Undrained test on soil will yield the undrained strength, which can be used for finding the immediate stability of an excavation,
whereas a consolidated undrained test with measurement of pore pressure can be used to evaluate the effective strength parameters of soil for designing the long term stability of an earth fill dam. It is well known that the engineering behavior of soil depends on the effective stress
and not the total stress. The effective stress can be calculated by measuring the total stress and substracting the pore water pressure from it.
To cater to the needs of shear strength determination of soil we have range of Equipments
Models available:
Unconfined Compression Tester for load measurement, supplied with Load Frame 3 speed 50 kN, Proving Ring, 2kN and Dial Gauge, 0.01x25mm & Plain Platen with adaptor, Split Mould and Rubber Sheath
Unconfined Compression Tester for load measurement, supplied with Load Frame 4 speed 50 kN, Proving Ring, 2kN and Dial Gauge, 0.01x25mm & Plain Platen with adaptor, Split Mould and Rubber Sheath
The equipment consist of the following replaceable parts
Specifications : Consists of a spring operated load frame with arrangements for loading 38 mm x 76 mm samples, one set of four load springs of stiffness 0.2 kg, 0.4 kg, 0.8 kg, and 1.6 kg/mm, a calibrated mask and one set of 50 charts, in a metal carrying case.
Rate of Strain: 1.25, 1.5, 2.5mm/min
Spares & Accessories : Charts, set of 50 Calibrated mask. Spring set comprising one each of stiffness 2 N/mm, 4N/mm, 8N/mm and 16 N/mm Coning toll for 38 mm sample (female) Coning toll for 38 mm sample (male) Tripod stand wooden, for using the instrument in field.
FEATURES
Specifications : Consists of a spring operated load frame with arrangements for loading 38 mm x 76 mm samples, one set of four load springs of stiffness 0.2 kg, 0.4 kg, 0.8 kg, and 1.6 kg/mm, a calibrated mask and one set of 50 charts, in a metal carrying case.
Rate of Strain: 1.25, 1.5, 2.5mm/min
Spares & Accessories : Charts, set of 50 Calibrated mask. Spring set comprising one each of stiffness 2 N/mm, 4N/mm, 8N/mm and 16 N/mm Coning toll for 38 mm sample (female) Coning toll for 38 mm sample (male) Tripod stand wooden, for using the instrument in field.
PRODUCT VIDEO
WORKING PRINCIPALNew
Unconfined Compressive Strength Test of Soil, UCS test, lS: 2720 (Part 10): 1991
What is unconfined compressive strength test of soil?
The unconfined compression test is the most popular laboratory test used to determine the Unconfined Compressive Strength (UCS) of a rock specimen. The unconfined compression test method is used primarily for saturated, cohesive soils recovered from thin-walled sampling tubes. But the test is inappropriate for dry sands or crumbly clays because these materials would fall apart without some land of lateral confinement.
Unconfined Compressive Strength (UCS) stands for the maximum axial compressive strain that a specimen can bear under zero confining stress.
What is Unconfined Compressive Strength of Soil?
The unconfined compressive strength (σᵤ) is the maximum load per unit average cross-sectional area at which the cylindrical specimen of soil falls in compression.
What is the typical loading rate for the unconfined compression test?
The typical loadrate for the unconfined compression test should be 0.5 MPa/s to 1.0 MPa/s (in case of a stress-controlled load device) and the failure must occurs in approximately 10 minutes.
Scope: To determine the Unconfined Compressive Strength (UCS) of Soil.
IS Code For Determination of Unconfined Compressive Strength of Soil:-
IS: 2720 (Part 10): 1991
Apparatus Required For Unconfined Compressive Strength Test of Soils:-
Unconfined compression apparatus, proving ring type
Proving Ring of 2 kN capacity and 1N accuracy
Deformation Dial Gauge with 0.01mm
Loading frame consists of two metal plates
Sample Extractor
Sampling tube
Vernier Calipers
Stop watch
Oven–thermostatically controlled with interior of non-corroding material to maintain the temperature between 105ºC & 115ºC.
Weighing balances sensitive to 0.01g
Split mould, 38 mm diameter, 76 mm long
Specimen trimming tools
Large mould
Water content cans
Procedure of Unconfined Compressive Strength Test of Soil:-
Preparation of specimens:-
*The moulded specimen for the test will have a minimum diameter of 38 mm. The height to diameter ratio will be within 2 to 2.5.
*Measurement of height and diameter will be made with Vernier Callipers or any other suitable measuring device to the nearest 0.1mm.
For Undisturbed Specimens: Sample are extracted from the tube with the extruder such that the degree of disturbance is negligible. The specimen will be of uniform circular cross-section with ends perpendicular to the axis of the specimen.
For Remoulded Specimens: The specimen is prepared from a disturbed soil sample. The material will be wrapped in a thin rubber membrane and thoroughly worked with the fingers to assure complete remoulding. Care will be taken to avoid entrapped air, to obtain a uniform density.
For Compacted Specimens: When compacting disturbed material, it will be done using a mould of circular cross-section with diameter of 36mm. After the specimen is formed, the ends will be trimmed perpendicular to the long axis and removed from the mould.
Procedure:-
The soil specimen will be placed at the desired water content and density in the large mould.
The sampling tube will be pushed into the large mould.
The sampling tube will be removed fulfilled with the soil specimen. For undisturbed samples, the sampling tube will be pushed into the clay sample.
The soil sample will be saturated in the sampling tube by a suitable method.
The split mould will be coated lightly with a thin layer of grease. The mould will be weighed.
The sample will be extracted out of the sampling tube into the split mould, using the sample extractor and the knife.
The two ends of the specimen will be trimmed in the split mould. The mould with the specimen will be weighed.
The specimen will be removed from the split mould by splitting the mould into two parts.
The initial length, diameter and weight of the soil specimen will be measured with Vernier Callipers and the soil specimen will be placed on the bottom plate of the loading device.
The upper plate is adjusted to make contact with the specimen.
The dial gauge is adjusted to zero and the proving ring gauge seated.
Compression load is applied so as to produce axial strain at a rate of 0.5 to 2 percent per minute causing failure with 5 to 10.
The dial gauge reading, and the proving ring reading will be recorded. The reading may be taken at strains of 0, 0.1, 0.2, 0.5, 1, 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18 and 20 percent. The reading may be taken after every thirty seconds up to a strain of 6 percent and after every 60 seconds for a strain between 6% to 12% and after every 2 minutes or so beyond 12%.
The compression load (force) reading will be taken at interval of 0.5 mm of the deformation dial reading.
The test will be continued until failure surfaces have definitely developed or the stress-strain curve is well past its peak or until an axial strain of 20% is reached.16. The stress-strain curve is plotted. The compressive stress is taken as ordinate, and axial strain as abscissa.
If possible, the angle between the failure surface and the horizontal is measured.
The sample from the failure zone of the specimen is taken and the water content of the specimen is determined.
Observation:-
Compressive stress-axial strain curve:-

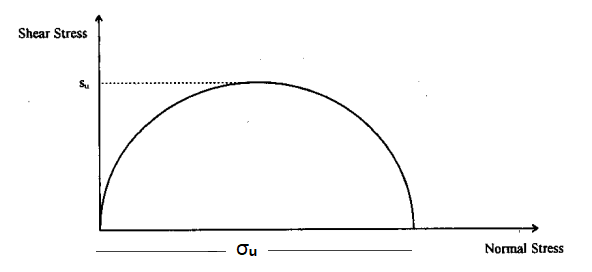

Fig: Mohr’s Circle for Unconfined Compression Test
Calculation:-
a)
Where,
e = Axial strain,
∆L = the change within the specimen length as read from the strain dial indicator, and
Lo = the initial length of the specimen.
b)
Where,
A = Corrected area of the specimen and
Ao = the initial average cross-sectional area of the soil specimen.
c)
Where,
σᵤ = Unconfined compressive strength,
P = the compressive force (axial load at failure), and
A = average cross-sectional area.
The undrained shear strength (Sᵤ) of the soil is equal to the one half of the unconfined compressive strength of the soil,
Report:-
The observations of the test will be suitably recorded and reported.
Why is unconfined compressive strength (UCS) test important?
The Unconfined Compression Test is an important laboratory test. It is used to determine the unconfined and undrained compressive strength of a cohesive soil in an inexpensive manner. Unconfined Compressive Strength (UCS) stands for the maximum axial compressive stress that a cohesive soil specimen can bear under zero confining stress. Unconfined compression test is one of the fastest and cheapest methods of measuring shear strength of soil.
