quick info

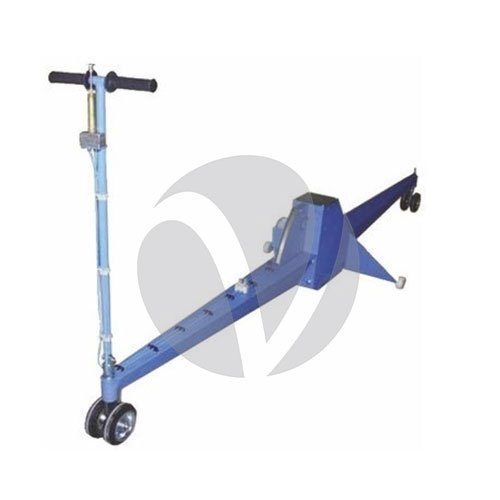

Travelling Beam Device with Autographic Recorder Supplied Without Recorder Charts.

Ref. Standard

As Per IS, BS Standard

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-B129

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

Deviation of the surface from a straight-line is shown on a scale calibrated in increments of 2 mm up to 10 mm and 5 mm up to 25 mm. A dye-marker is fitted which may be used to identify suspect areas. Outrigger wheels provide mobility on site. The device is supplied as three sub-assemblies which are quickly assembled on site. The Travelling Beam is supplied fitted with an autographic recorder providing a permanent record of the surface profile. Records up to 1 kilometer can be recorded on the special chart paper rolls used.

SPECIFICATIONS

The 3 meters long Travelling Beam Device is used to check for any irregularities in both concrete and bituminous road surfaces. A sensing unit comprising a wheel connected to an indicator provides a magnification of 4:1.

FEATURES

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
