short info

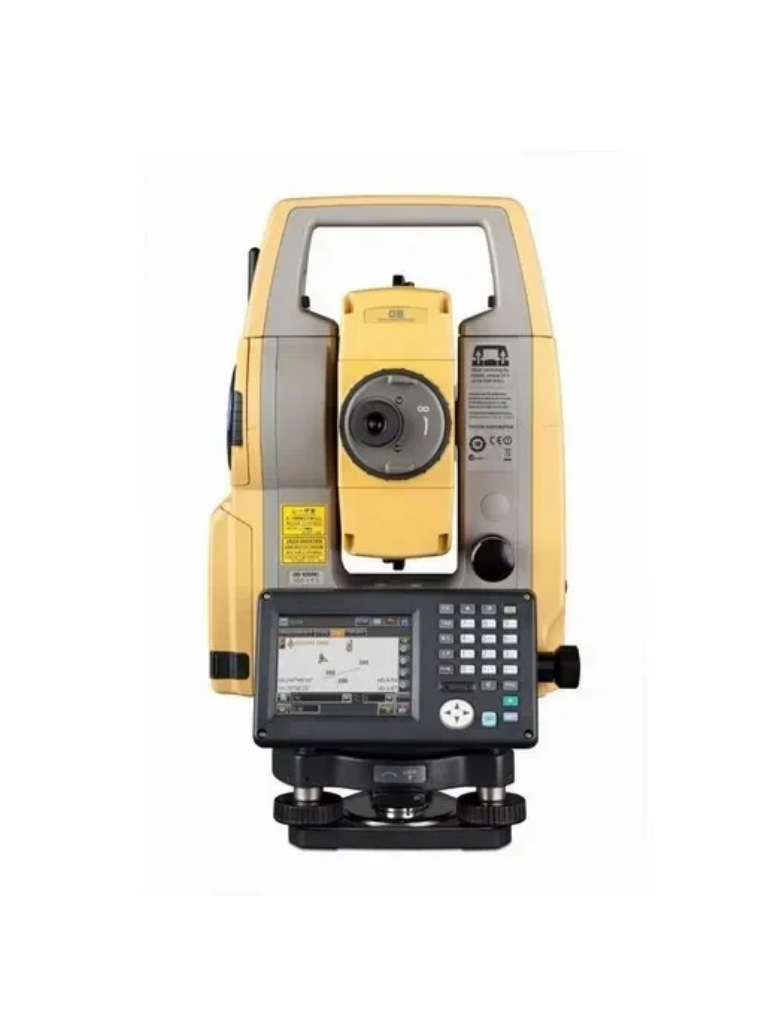

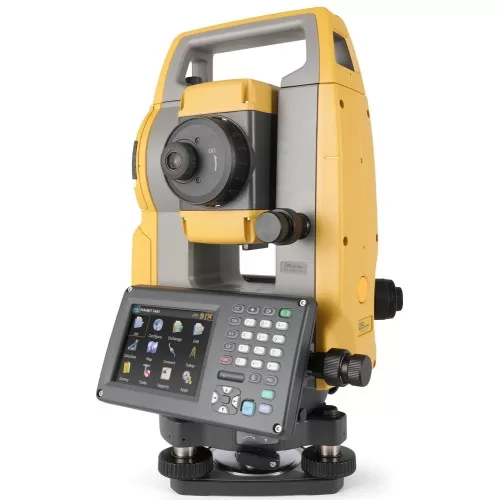

With the latest total station technology in an IP65 rated housing, the OS can handle whatever you need to accomplish. Built for on-the-go tasks with a far reaching, precise firing EDM, extended use batteries, and data collection software right on the instrument. Take charge of sites with world-class accuracy from the OS series by Topcon.

Model

OS-201

Origin

Indian

Make/ OEM

TOPCON

Brochure


  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

OS Series

Topcon’s new OS Series Total Stations – New Advanced Design with Superior Technology

The OS is a professional grade compact design total station. This all new advanced design provides an on-board data collection interface, exclusive LongLinkTM communication, and an incredibly powerful EDM.

Work directly on the bright, color touchscreen, or with the alpha-numeric keyboard to achieve higher levels of production with MAGNET Field on-board software.

Features

  • Advanced Security & Maintenance with New TSshield™
  • MAGNET Field On-board
  • Exclusive LongLink™ Communications Functionality
  • Fast and Powerful EDM
  • Advanced Angle Accuracy
The OS is the perfect total station for many field applications including:
 Land Surveying Property
• Land Surveying Topo & Stakeout
• Earthwork Volumes
• Building Interior Layout
• Construction of Roads
• Law Enforcement Mapping
Primary OS features include:
Exclusive LongLinkTM Ultra-Powerful, Advanced EDM
• 300m+ Wireless Link to Controller
• Field Controller at the Prism Pole
• More accurate code descriptions
• Collect point Images at the measurement point.
• 500m non-prism range
• 4000m prism range
• Red/Green Guidelight
• Coaxial red laser pointer
• Pinpoint, precise beamspot
Advanced Angle Encoder System EDM Trigger Key
• “Best in Class” 1” angle accuracy available
• Incorporates exclusive IACS
(Independent Angle Calibration System)
on 1” & 2” models
• Self calibration
• Proven High Accuracy Technology
• Perfect touch location
• Promotes angle stability
• No torque when measuring on-board
• Water/Dust proof
• Easy for gloved hands
Advanced OS features include: Standard OS package includes:
• Large Graphics
• Easy to Read
• Color Touchscreen
• Alphanumeric Keyboard
• 4-Way Navigation Button
• OS Total Station
• Battery and Charger (one battery and charger included)
• Lens Cap and Hood
• Tool Kit
• USB stick with digital Manual
• Quick Guide
• Carry Case and Carry Straps

Achieve higher levels of production with MAGNET Field on-board software

Part of the MAGNET Solution, MAGNET Field On-board runs directly on the OS total station touch screen. Utilize the on-board USB port to plug a USB flash drive into the side panel for fast file transfer. Or for more traditional transfer, use a USB mini cable and transfer files to MAGNET Office Tools.

With direct exchange between MAGNET Field On-board and MAGNET Office Tools, you will see an increase in overall productivity.

All of the total station functions are available directly on-board. In Survey, there is Topo, X-Section, Find Station, Tape Dimension, and Missing Line. In Stake, there is Points, Lines, Offsets, Surface, Point in Direction, Curve, Real-Time Roads, Road, Slope, and Linework staking. Plus many calculation functions like Inverse, Intersection, Curves, Area, Corner Angle, Offsets, Adjust, Traverse, and DTM.



SPECIFICATIONS

Topcon OS 101 Specification

Angle Measurement
Min. Resolution/Accuracy
OS-101 0.5”/1”
OS-102 1”/2”
OS-103 1”/3”
OS-105 (Single Display) 1”/5”
IACS (Independent Angle Calibration System) Standard on 1” & 2” models
Compensation Dual-axis compensator
Distance Measurement
Prism EDM Range 4000m
Prism EDM Accuracy 2mm+2ppm
Non-Prism Range 500m
Non-Prism Accuracy 3mm+2ppm (0.3-200m)
Measuring Time Fine: 0.9 sec
Rapid: 0.7 sec
Tracking: 0.3 sec
Communications
LongLink™ rover communications utilizing
Bluetooth® Class 1
USB 2.0 Slot (Host + Slave)
RS-232C Serial
General
Display/Keyboard Dual, LCD, Touchscreen
(OS-105 Single)
Battery Operation Up to 20 hours
Dust/Water Protection IP65
Wireless Connection Bluetooth® Class 1
Operating Range
-30C to +60C
-35C to +60C*
*special arctic version

FEATURES

Angular accuracy 1″
Prism distance 6000 m
Reflectorless distance 1000 m
Target sheet distance 500 m
Magnification 30х
Minimum focus distance 1.3 m
Telescope length 171 mm
Lens diameter 45 mm
Image Erect
FOV (at 100m) 1°30′
Resolution 2.5″
Cross hairs distance meter coefficient 100
Laser guidance Yes
Laser point Yes
Display Color 3.5 inch QVGA TFT LCD
Number of displays 2
Keyboard 29 keys with backlight
Serial port RS232C
USB USB 2.0 (Type A and mini B)
Bluetooth Yes
Built-in memory 1 GB
External memory USB flash memory (up to 32GB)
Compensator type liquid
Compensator operating range ±6′
Plummet type Optical
Built-in power BDC72 Li-ion (6000 mAh)
External power Yes
Operating time Approx. 20 hours
Charging time Approx. 8 hours
Ingress Protection IP65
Operating temperatures -20°C to +60°C
Storage temperatures -30°C to +70°C
Instrument dimensions 191 х 190 х 348 mm
Instrument weight 5.7 kg
Packaging dimensions 660 х 580 х 480 mm
Packaging weight 15 kg
Manufacturer’s warranty 24 months
Producing country Japan
