short info

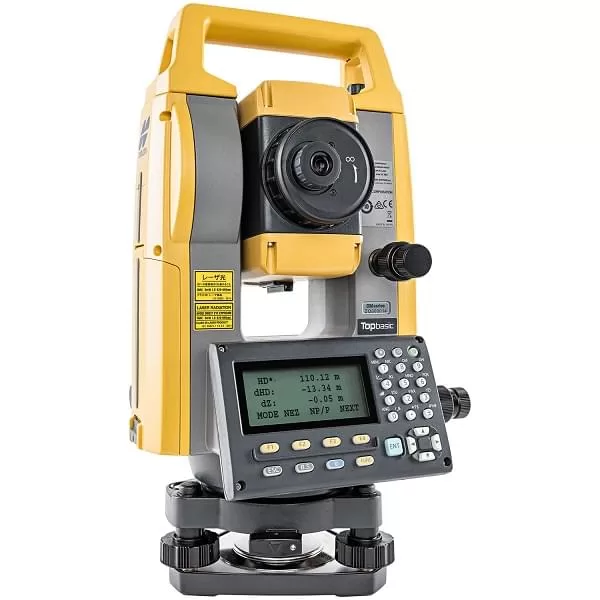

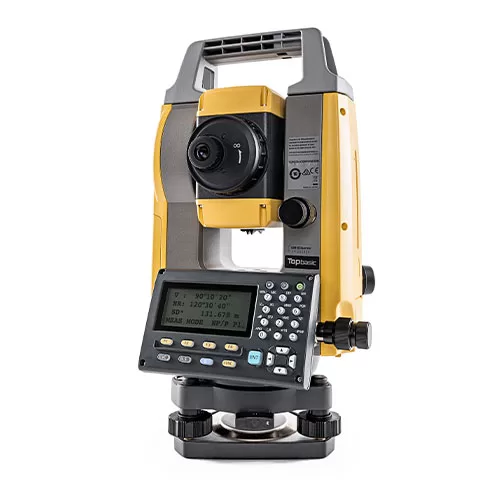

The Topcon GM-55 is the 5″ model in the GM-50 series of total stations.

The GM-50 Series is the perfect entry-level site layout and survey tool offering reliability and flexibility without sacrificing cost or functionality.

The sleek design is built tough, with a water and dustproof IP66 rating, integrated Bluetooth® capability and an internal antenna, enabling you to deliver measurements cable-free to your data controller, streamlining your equipment weight and workflow.

The GM-50 is also armed with a top line EDM, generous internal memory storage, and SDRbasic on-board software so you have everything you need to get the job done out in the field.

Model

GM55

Origin

Indian

Make/ OEM

TOPCON

Brochure


  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Topcon GM-55

  • Fast and Powerful Reflector less EDM
  • Fast and accurate pinpointing with phase shift technology.
  • Fast distance measurement of 0.9s regardless of object.
  • Minimum reflectorless measuring distance – just 30cm.
  • Improved collimation with a super-bright pointer.
  • Smaller EDM beam spot size for minimal distance measuring error.
  • Dependable measuring even at shallow incidence angles.
  • Ensures accurate reflective sheet distance measurement.

Japan Quality Products

We perform the tough environmental tests to ensure long-term operation even under the rough site environments.

GM-55 is thoroughly inspected with dust-proof and water-proof test chambers.

In addition, the various tests against vibration, drop, temperature, and humidity was successfully passed to achieve the best environmental spec. Also, the measuring distance accuracy test on base line and the instrument leveling and angle accuracy test and adjustment by collimator system ensure your satisfaction on GM Series product quality.

Standard Package Components

Main unit • Battery (BDC46C)

  • Battery charger (CDC68A)
  • Power Cable • Lens cap • Lens hood • Tool pouch • Precision Screwdriver
  • Lens brush • Hexagonal wrench ×2
  • Cleaning cloth • Quick Manual
  • Laser caution sign-board
  • Carrying case • Carrying strap IVBIA

High Quality, High Return!

  • Construction and Survey Application Software
  • Fast & Accurate & Powerful Measuring Distance Feature
  • 500m Long Range Reflectors Measurement
  • Rugged & Waterproof Design
  • Reliable Large Volume Internal Memory



SPECIFICATIONS

Topcon GM – 55 Total Station Specifications

Model GM-55
Telescope
Magnification / Resolving power 30x / 2.5″
Others Length : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30′ (26m/1,000m), Minimum focus: 1.3m (4.3ft.) Reticle illumination: 5 brightness levels
Angle measurement
Minimum Display 1”/5” (0.0002 / 0.001gon, 0.005 / 0.02mil)
Accuracy (ISO 17123-3:2001) 5″
Dual-axis compensator / Dual-axis liquid tilt sensor, working range: ±6′
Collimation compensation On/Off (selectable)
Distance measurement
Laser output*1 Reflectorless mode : Class 3R / Prism/sheet mode : Class 1
Minimum Display Fine / Rapid : 0.0001m (0.001ft. / 1/16 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable) Tracking / Road : 0.001m (0.005ft. / 1/8 in.) / 0.01m (0.02ft. / 1/2 in.) (selectable)
OS, Interface and Data management
Operating system Linux
Display / Keyboard Graphic LCD, 192 x 80 dots, backlight : on/off (Selectable) / Alphanumeric keyboard / 28 keys with backlight
Control panel location Serial RS-232C, USB2.0 (Type A for USB flash memory)
General
Laser-pointer Coaxial red laser using EDM beam
Dust and water protection / Operating temperature IP66 (IEC 60529:2001) / -20 to +60ºC (-4 to +140ºF)
Size with handle 183(W)x 174(D)x 348(H)mm (On single face)
Instrument height 192.5mm from tribrach mounting surface
Weight with battery & tribrach Approx. 5.1kg (11.3lb)
Power Supply
Battery Li-ion rechargeable battery BDC46C
Operating time (20ºC)*9 Approx. 14hours*10
Application program
On board • REM Measurement • 3D Coordinate Measurement • Resection • Stake Out • Topography Observation • Offset Measurement • Missing Line Measurement • Intersection • Surface Area Calculation • Route Surveying • Point to Line

FEATURES

● Integrated Construction and Survey Application Software
● Bluetooth communication
● Fast, accurate, and powerful EDM
● EDM accuracy to prism: 1.5mm + 2.0ppm
● EDM accuracy reflectorless: 2mm + 2ppm
● Reflectorless up to 500m
● Prism range up to 4,000 m
● Advanced angle accuracy (5″)
● Single keyboard
● IP66 dust and waterproof rating

PRODUCT VIDEO

WORKING PRINCIPALNew
