short info

The GM-105 Manual Total Station was designed from the ground up to deliver the latest technological advantages in a small, sleek design. It’s rugged waterproof/dustproof magnesium-alloy housing encases an ultra-powerful 6,000m prism range 1.5mm accuracy EDM, Best-in-class 1″ angle accuracy angle encoder system, and 28 hour battery-life power supply. The GM-100 also features dual axis compensation, 32 GB USB, Bluetooth to 10m and TSshield™ telematics for ultimate security and investment protection.

Designed to deliver the latest technological advantages in a sleek design, each GM-100 total station is equipped with a best-in-class EDM. The total station measures up to 5,000 meters to standard prisms (6,000 meters under good conditions) and up to 800 meters in reflectorless mode. Other features include a built-in laser plummet, dual-axis compensation, Bluetooth® connectivity, and a battery life of up to 28 hours. In addition to an internal memory of 50,000 points, the total station also features a USB 2.0 slot for up to 32GB of storage. TSshield™ technology provides ultimate security and maintenance capabilities for your total station thanks to a telematics-based multi-function communications module. If an activated total station is lost or stolen, just send a coded signal to the instrument and disable it – anywhere in the world. You can also access cloud-based Topcon servers for available software updates and firmware enhancements. Waterproof/dustproof IP66 design.

Model

GM – 101

Origin

Indian

Make/ OEM

TOPCON

Brochure


  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

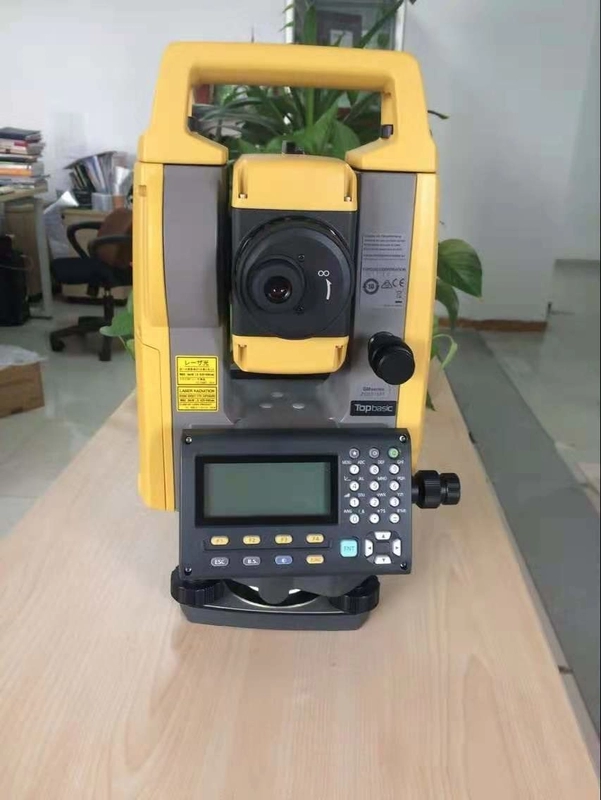

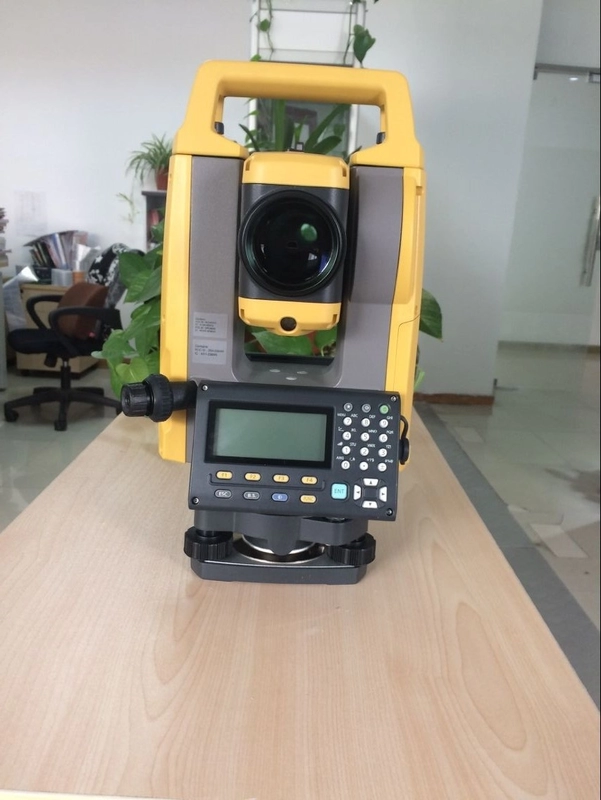

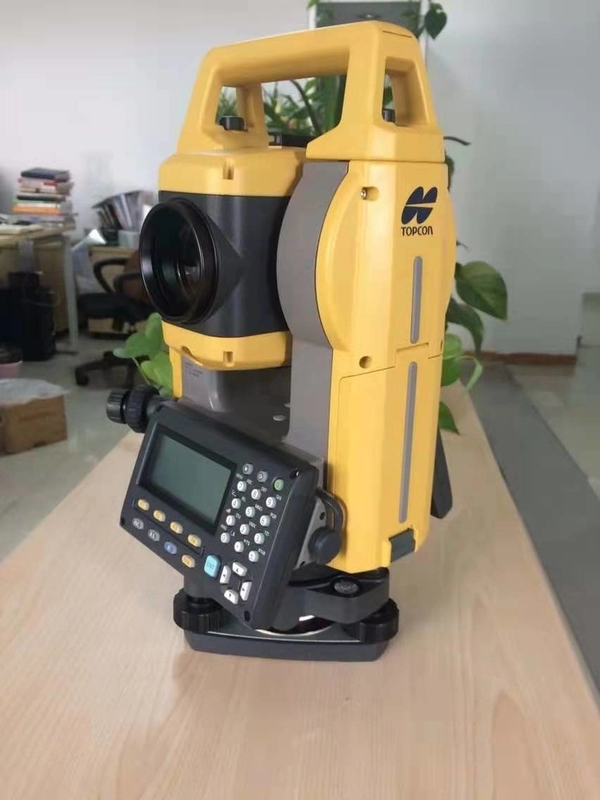

Topcon GM 101 Manual Total Station

This powerful, cost-efficient Manual Total Station was designed from the ground up to deliver the latest technological advantages in a small, sleek design. It features an ultra-powerful EDM, best-in-class angle accuracy encoder system to provide the accuracy, speed, and endurance needed on the most demanding job sites. Plus, with a rugged housing and extended battery life, you’ll be able to handle even the toughest conditions.

The GM-100 series also features dual-axis compensation, 32 GB USB, Bluetooth to 10m and TSshield™ telematics for ultimate security and investment protection.

  • 6,000m prism range 1.5mm accuracy
  • Easy access USB memory with 32 GB storage
  • 1″ angle accuracy encoder system with exclusive IACS
  • Rugged, waterproof/dustproof magnesium-alloy housing
  • 28 hour battery life (eco mode)



SPECIFICATIONS

Topcon GM 101 Manual Total Station Specifications

Magnification/ Resolving Power 32x / 2.5”
Accuracy 1”
Working Range +- 6′
Minimum Focus 1.3 meter (4.3 ft.)
Operating System Lynux
Display / Keyboard Graphic LCD 192×80 dots, backlit / Alpha Numeric Keyboard 28 keys
Dust and Water Protection IP 66
Operating Temperature  – 20 degree to +60 degree
Operating Time / Battery 28 hours / BDC70 (Li ion)
On Board REM Measurement, 3D Coordinate Measurement, Reselection, Stake Out, Topography Observation, Ofset Measurement, Surface Area Calculation, Route Surveying, Point to Line

FEATURES

Key Features

  • 1,000 m non-prism range
  • 6,000 m prism range
  • “Best-in-class” 1″angle accuracy
  • Up to 32 GB storage
  • Waterproof/dust-proof IP66
  • Environmentally protected
  • Compatible with industry standard thumb drives
  • 21 hour battery life in normal mode

PRODUCT VIDEO
