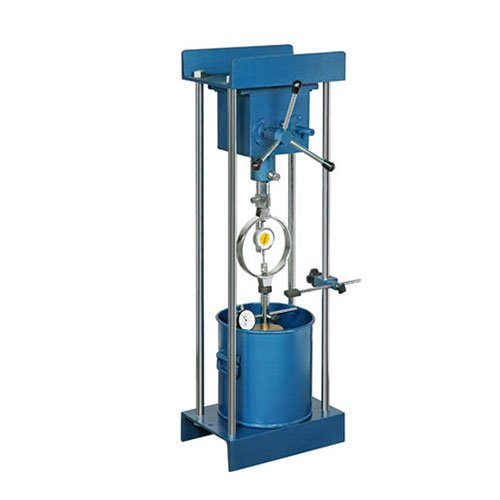

Swell Pressure Test Apparatus VSLIC-S209

short info

Test is performed as per IS:2720 (Part-XII). For measuring the swelling pressure of partially saturated soils when subjected to saturation.

The apparatus consists of :-

  • Load frame, 500kg (5kN) capacity, hand operated.
  • Mould with100 mm internal dia x 127.3 mm high, 1000 cm³ volume.
  • Proving Ring 250 kg (2.5 kN) capacity with load transfer bar and steel ball.
  • Soaking tank 25 cm dia x 20 cm high.
  • Dial gauge 0. 01 x 25mm

Standard

IS 2720(Part 41):1977

Model

VSLIC-S209

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

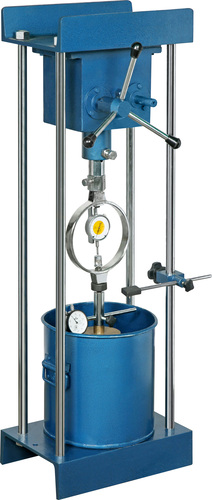

Swell Pressure Test Apparatus developed by soil specimens moulded to desired densities at known moisture contents when soaked in water. The load applied to restrain the Swelling is Transferred on to a load measuring proving ring through a perforated swell plate and a load transfer bar. The proving ring is attached to the lead screw of the hand-operated load frame. A soaking tank is provided for saturating the specimen and the base of the mould provided has channels and radial grooves with connecting holes.

Test is performed as per IS:2720 (Part-XII). For measuring the swelling pressure of partially saturated soils when subjected to saturation.

The apparatus consists of :-

  • Load frame, 500kg (5kN) capacity, hand operated.
  • Mould with100 mm internal dia x 127.3 mm high, 1000 cm³ volume.
  • Proving Ring 250 kg (2.5 kN) capacity with load transfer bar and steel ball.
  • Soaking tank 25 cm dia x 20 cm high.
  • Dial gauge 0. 01 x 25mm


Related Searches

SPECIFICATIONS

The outfit comprises the following.

  • One loading unit Hand. operated 5000 kg capacity with two rates of travel.
  • One Gunmetal mould, 100mm dia x 127.3 cm height X 1000 cc volume with base plate & collar.
  • One perforated swell plate 100mm dia X 16mm thick.
  • One spacer 100mm dia X 12.7mm thick.
  • Two porous stone of 100mm dia X 12.7mm thick.
  • One load transfer bar.
  • One steel ball & one soaking tank, 250mm dia x 210mm high.
  • Dial gauge 0.01mm X 25mm travel.
  • Proving ring of 2.5 KN capacity with calibration chart and carrying case.

FEATURES

The equipment consists of the following replaceable parts:

  • VSLIC-S20301 : Load Frame, Hand operated, Capacity 5KN
  • VSLIC-S20302 : Mould 100mm dia X 127.3 mm Height (1,000 ml Volume) with base plate and collar.
  • VSLIC-S20303 : Proving ring, 25KN capacity.
  • VSLIC-S20304 : Dial gauge 25mm travel,0.01 mm least count.
  • VSLIC-S20305 : perforated swell plate 100mm dia X 16 mm thick.
  • VSLIC-S20306 : spacer 100mm dia X 12.7 mm thick.
  • VSLIC-S20307 : pair of porous stones 100 mm dia X 12.7 mm thick.
  • VSLIC-S20308 : Load Transfer Bar.
  • VSLIC-S20309 : Steel Ball.
  • VSLIC-S20310 : Soaking tank, 250 mm dia X 210 mm high.
