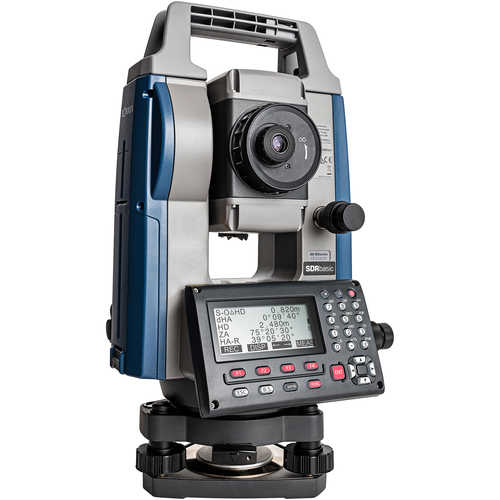

Sokkia iM-55 Total Station Sokkia iM-55

short info

The Sokkia iM 55 Total Station is the perfect entry-level site layout and survey tool offering reliability and flexibility without sacrificing cost or functionality. The Sokkia iM 50 Series Total Station’s sleek design is built tough, with a water and dust-proof IP66 rating, integrated Bluetooth® capability and an internal antenna, enabling you to deliver measurements cable-free to your data controller, streamlining your equipment weight and workflow.

Standard

5″ Accuracy, Fast distance measurement of 0.9s..

Model

Sokkia iM-55

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

The Sokkia iM 55 Total Station is the perfect entry-level site layout and survey tool offering reliability and flexibility without sacrificing cost or functionality. The Sokkia iM 50 Series Total Station’s sleek design is built tough, with a water and dust-proof IP66 rating, integrated Bluetooth® capability and an internal antenna, enabling you to deliver measurements cable-free to your data controller, streamlining your equipment weight and workflow.

Sokkia iM-55 Reflectorless Total Station is also armed with a top line EDM, generous internal memory storage, and SDRbasic on-board software so you have everything you need to get the job done out in the field.

  • 5″ Accuracy, Fast distance measurement of 0.9s..
  • Reflectorless operation from 30cm to 500m.
  • 50,000-point internal memory
  • Upto 32GB USB Pen Drive Support
  • Coaxial EDM beam and laser-ponter provide fast and accurate aiming.
  • Ensures accuracy even with reflective sheets.
  • IP66 dust-proof waterproof rating.
  • Rugged metal chassis and heavy duty handle.
  • Standard usage temperature range -20° to 60°C.


Related Searches

SPECIFICATIONS

Key Features of Sokkia iM 55 Reflectorless Total Station

Perfect for entry-level site layout and surveying, the Sokkia iM-55 Reflectorless Total Station is a smart measuring device that offers reliable and accurate results with a friendly price. The Sokkia iM 50 Series Total Station features a reflectorless range up to 1,640 feet and up to 13,123 feet with a single prism. Featuring an advanced angle accuracy, it also comes with an integrated Bluetooth connectivity option and an internal antenna for a cable-free operation.

This Sokkia total station features a coaxial red laser with EDM beam technology and comes with a 30x magnification with 2.5-inch resolving power. It is provided with a ±6-degree range dual-axis compensation that allows reliable measurements on any terrain. Also, it includes an SDRbasic on-board software and a 50,000-point internal memory for a smooth surveying operation.

With an IP66 rating, the Sokkia iM50 is total dust-proof and water resistant. It features a graphic LCD display that has a 28-key alphanumeric keyboard with back-light. In addition, it uses a rechargeable Li-ion battery that operates up to 14 hours which is the best companion for a long work day.

FEATURES

Sokkia Total Station iM55 Technical Specifications:

Model Sokkia iM 55 Total Station
Telescope
Magnification / Resolving Power 30x / 2.5″
Length 171mm
Objective aperture 45mm (48mm for EDM)
Image Erect
Field of View 1°30′ (26m / 1,000m)
Minimum focus 1.3m
Reticle illumination 5 brightness levels
Angle Measurement
Display Resolution 1″/5″ (0.0002 / 0.001gon, 0.005 / 0.02mil)
Accuracy (ISO 17123-3:2001) 5″
Dual Axis Compensator Working range ±6′ (±111 mgon)
Collimation Compensation On/Off (selectable)
Distance Measurement
Laser output (Reflectorless mode) Class 3R / Prism / sheet mode: class 1
Range reflectorless mode 0.3 to 500m (1,640ft.)
Range prism mode 1.3 to 4,000m (4.3 to 13,120ft.)
Measuring Time
Fine Measurement Mode 0.9 sec.(Intial 1.5 sec.)
Rapid Measurement Mode 0.6 sec.(Intial 1.3 sec.)
Tracking Measurement Mode 0.4 sec.(Intial 1.3 sec.)
Interface and Data Management
Display / Keyboard Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / alphanumeric keyboard / 28 keys with backlight
Control panel location Single side
Data storage (Internal memory) Approx. 50,000 points
Data storage (Plug-in memory device) USB flash memory (max. 32GB)
Interface Serial RS-232C, USB2.0 (Type A for USB flash memory)
Bluetooth modem (optional)* Bluetooth Class 1.5, Operating range: up to 10m
General
Laser pointer Coaxial red laser using EDM beam
Levels Graphic 6′ (Inner Circle)
Circular Level 10’/2mm
Optical Magnification: 3x
Minimum focus: 0.5m from tribrach bottom
Dust and water protection IP66 (IEC 60529:2001)
Operatig temperature -20°C to 60°C
Size with handle (w x d x h mm) 183 x 174 x 348mm
Weight with batter and tribrach Approx. 5.1kg
Power Supply
Battery (BDC46C) Detachable battery Li-ion rechargeable battery
Operating time (20°C) BDC46C Approx. 14 hours (In use of ECO mode. Fine single measurement every 30sec)
