Soil Permeability Apparatus VSLIC-S200

short info

The permeability test of soil, as per IS:11209, is intended to determine the coefficient of permeability, which describes how easily water can flow through soil. This parameter is essential for understanding groundwater movement, soil drainage properties, and designing earth structures like dams, retaining walls, and foundations.

Standard

IS 2720 (PART-XV), IS:12287, BS:1377, ASTM D2435

Model

VSLIC-S200

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • DESCRIPTION

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL
  •  New
    REVIEW

OVERVIEW

Compliance Standards:

IS : 2720 (Part 17)‑1986, IS : 11209‑1985, IS : 9198

Purpose:

To study the permeability characteristics of all type of soil samples (For both Re‑molded as well as undisturbed specimen) under different conditions of Laboratory as well as in the field.

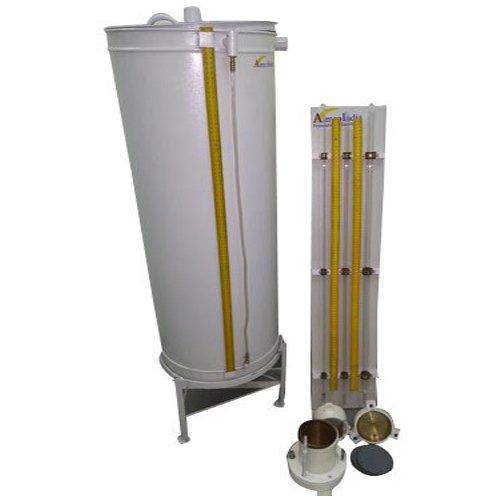

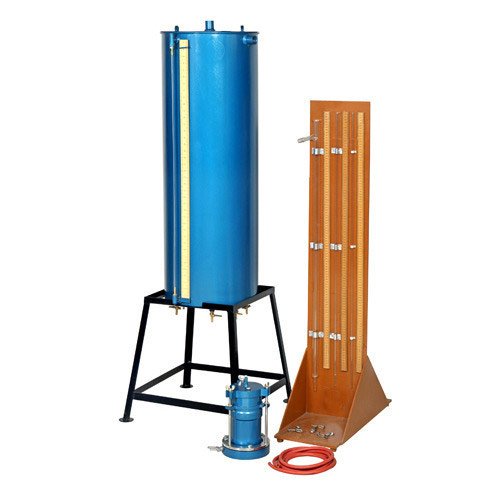

Set up consists of following parts and accessories:

  1. Gunmetal mould 100mm dia x 127.3mm height x 1000ml volume, with collar of 100mm dia X 60mm high (as per IS:11209 ‑ 1985)
  2. Drainage base plate
  3. Drainage cap
  4. Metallic clamping ring
  5. Two porous stone for base and cap
  6. Dummy plate
  7. Air release valve
  8. Rubber tube of 3 meter length
  9. Pinch cock for rubber tube
  10. Over head tank made of G.I. sheet with six outlet at bottom and inlet port on top (For constant head test)
  11. With a set of three glass stand pipes approximately 6mm, 10mm and 20mm diameter x 1 meter length mounted on a wooden board
  12. The end of the glass tube is serrated to connect rubber tube of 3 meter length with pinch cock.
  13. Compaction device available at extra cost

Also available as per ASTM D5856/BS 1377-5/ISO 17892-11


Related Searches

SPECIFICATIONS

Compliance Standards:

IS : 2720 (Part 17)‑1986, IS : 11209‑1985, IS : 9198

Purpose:

To study the permeability characteristics of all type of soil samples (For both Re‑molded as well as undisturbed specimen) under different conditions of Laboratory as well as in the field.

Set up consists of following parts and accessories:

  1. Gunmetal mould 100mm dia x 127.3mm height x 1000ml volume, with collar of 100mm dia X 60mm high (as per IS:11209 ‑ 1985)
  2. Drainage base plate
  3. Drainage cap
  4. Metallic clamping ring
  5. Two porous stone for base and cap
  6. Dummy plate
  7. Air release valve
  8. Rubber tube of 3 meter length
  9. Pinch cock for rubber tube
  10. Over head tank made of G.I. sheet with six outlet at bottom and inlet port on top (For constant head test)
  11. With a set of three glass stand pipes approximately 6mm, 10mm and 20mm diameter x 1 meter length mounted on a wooden board
  12. The end of the glass tube is serrated to connect rubber tube of 3 meter length with pinch cock.
  13. Compaction device available at extra cost

Also available as per ASTM D5856/BS 1377-5/ISO 17892-11

FEATURES

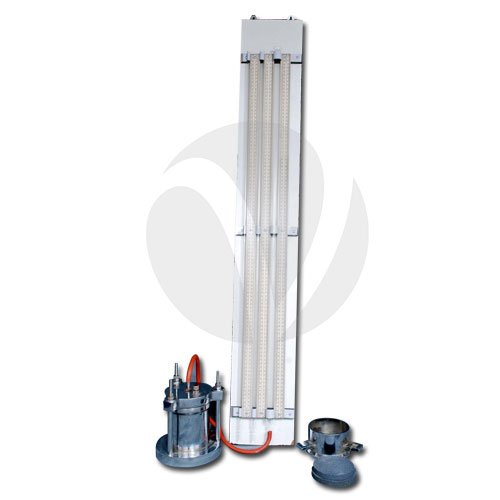

Falling Head Permeability Test Apparatus

  • Used to determine the permeability of fine-grained soils such as clay-like or silty soils.
  • The specimen is confined within the permeameter which is connected to the manometer tube filled with water.
  • The sample must be completely sutured with water before
    the test.
  • the operator will check the rate of fall of the water in
    the tube passing through the test specimen.
  • The set consists of Permeameter stand with three manometer tubes each Ø 3, 4, and 6mm for the different degrees of permeability, soaking reservoir with cock, tubing, and connectors.
