Sand Absorption Cone and Tamper VSLIC-C248

short info

Sand Absorption Kit is used for determining the slump of fine aggregate in the determination of bulk and apparent specific gravity and absorption of fine aggregate.

Standard

ASTM C 128 AASHTO-T-84

Model

VSLIC-C248

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

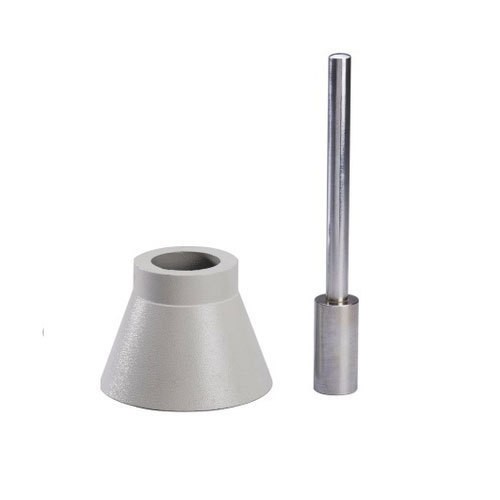

A metal tamping rod weighing 12 ounces and having a flat circular tamping faces 1 inch in diameter. This item is also used for determining the specific gravity and absorption of fine aggregates.




Related Searches

SPECIFICATIONS

Technical Specification:-

  • The equipment comprises of -A conical metal mould 1.5-inch dia at the top, 3.5-inch dia at the base and 2.7/8 inch in height.
  • A metal stamping rod weighing 12 ounces and having a flat circular tamping face 1 inch in diameter.
  • Made of steel
  • Upper open dia.40mm±3mm
  • Lower open dia. 90mm±3mm
  • Height 75mm±3mm slump cone set
  • Material made: cast iron
  • Metal bar
  • Abraham Cone Upper Dia 40 mm
  • Abraham Cone Lower Dia 90mm
  • Abraham Cone Height 75 mm
  • Tamping Rod Base Dia 25 mm
  • Made of a very rigid and strong steel

FEATURES

  • Robust construction.
  • Supreme finish.
  • Smooth operations.
  • Highly efficiency.

PRODUCT VIDEO

WORKING PRINCIPALNew
