short info

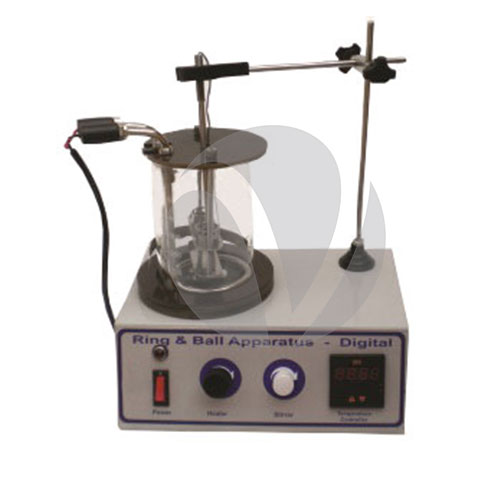

The Ring and Ball Apparatus is a compact user-friendly apparatus. It has magnetic stirrer with the heating facility and digital display of temperature, the heating can be adjusted through knob in Ring and ball and can be controlled through the integral PIO controlled in Ring and Ball Apparatus ( Semi-Automatic).

Standard

ASTM D36

Model

VSLIC-B101

Origin

Indian

Make/ OEM

VERTEX

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

This apparatus is meant for the determination of the softening point of bituminous materials. Softening point is that the temperature at which the specimen under test becomes soft enough to allow a steel ball of specific dimension to fall a required distance under test condition. To determine the temperature at which a sample of bituminous material loaded by 9.5mm dia steel ball drops from a specified distance when heated under specified conditions.



SPECIFICATIONS

Used for determining the softening point of bituminous materials. Comprising:

  • Brass rings (2 pieces included in the set).
  • Steel balls 9.5 mm dia. (2 pieces included in the set).
  • Ball centering guide (2 pieces included in the set).
  • Glass vessel.
  • Pouring plate.
  • Ring holder/assembly.
  • Glass thermometer, -2 +80°C, 0.2°C graduation.

FEATURES

Accessories

  • Aluminium plate.
  • Stirrer with electronic adjustment from 100 to 1200 r.p.m.
  • Wattage: 700 W.
  • Overall dimensions: 170x230x150 mm.

PRODUCT VIDEO

WORKING PRINCIPALNew
