quick info

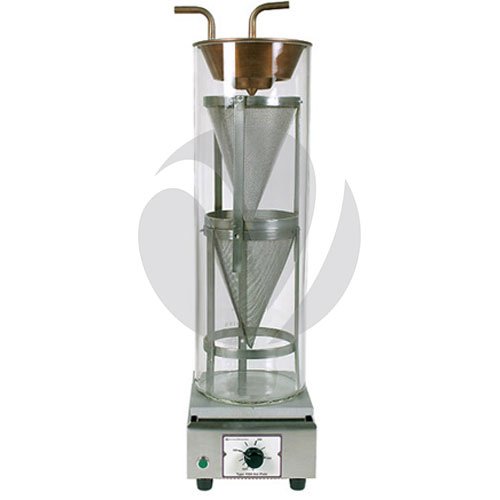

Reflux Extractor apparatus working on the same operation principle of consisting of cylindrical glass jar supporting two metal cones of stainless steel cloth and a metal condenser on top of the jar.

Ref. Standard

ASTM D 2172

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-5121

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

Reflux extraction is the least expensive method for determining asphalt content in bituminous pavement mixtures. Hot plates generate solvent vapor that passes around and through sample contained in two-wire mesh cones lined with filter paper. Reflux solvent condensing on the water-cooled condenser percolates through the sample repeatedly until the bitumen is extracted.

SPECIFICATIONS

Reflux Extractors are offered in nominal capacities of 1,000g and 2,000g and include a Hot Plate, Extraction Jar, two interlocking wire mesh Cones with bail handles, copper Condenser with water inlet/outlet tubes, Filter Paper, Insulating Pad and instructions.

FEATURES

  • A cost-effective option for asphalt content determinations in bituminous pavement mixtures
  • The choice between 1,000g and 2,000g capacities
  • All-in-one solution with necessary items for procedure included

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
