quick info

These instruments are for determining the viscosity of all oils, expressed in Redwood seconds at the temperatures of test as called for by IP 70. Both types of viscometers, Redwood No.1 and Redwood No. 2 electrical heating models are available.

Ref. Standard

As Per IS Standard

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-OP105

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

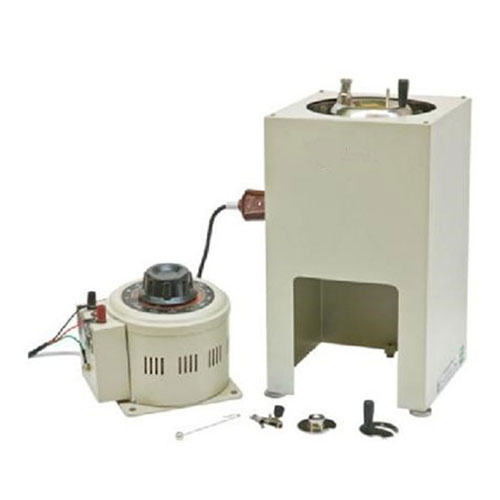

The viscometer consists of a heavily silver-plated brass oil cup with a precision stainless steel jet assembled in a chromium-plated bath fitted with a heating tube or heating element and drain cock. The bath and cup assembly is mounted on a stand with leveling feet. Each unit is supplied complete with silver plated ball valve, sprit level with cover, thermometer clip, and receiver of capacity 50ml.

Suitable for operation on 220V, 50Hz, single-phase, AC supply.

SPECIFICATIONS

Redwood viscometer No.I

  • Gas Heated Model (Without burner).
  • Electric Heated Model (Without any control).
  • Electric Heated Model with separate energy regulator control.
  • Electric Heated Model with a solid-state electronic regulator.
  • Electric Heated Model with voltage varies copper coil type.

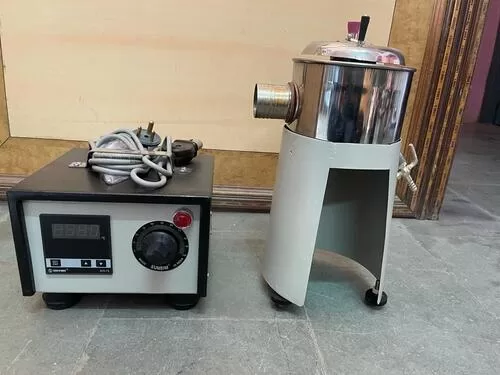

  • Electric Heated Model with Digital temperature controller cum indicator.

Redwood viscometer No.II

  • Gas Heated Model (Without burner).
  • Electric Heated Model (Without any control).
  • Electric Heated Model with separate energy regulator control.
  • Electric Heated Model with the solid-state electronic regulator.
  • Electric Heated Model with voltage varies copper coil type.

FEATURES

Redwood viscometer apparatus are widely used in Petroleum Laboratories, Industries, Oil Refineries, Educational Institutions, Research Organisations for standardization and determines the Viscosity of Petroleum products, which flows in a Newtonian liquid except cut back Bitumens and road oils at the set temperature, They conform to the requirement of IP 70. Two adaptions of Redwood Viscometers are available. Redwood Viscometers No. I for liquids having Redwood Flow 20 seconds to 2000 Seconds and Redwood Viscometers No. II exceeds 2000.

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
