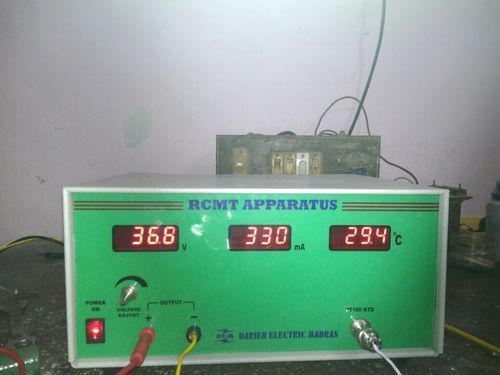

RCMT Apparatus VSLIC-O002

short info

The chloride penetration depth can then be measured from the visible white silver chloride precipitation, after which the chloride migration coefficient can be calculated from this penetration depth.

Model

VSLIC-O002

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

  • DC voltage : 0-60 volt DC
  • Current : 0-1000 mA DC
  • Temperature sensor : PT 100 RTD
  • Range : 0-99.9 deg C
  • Power input : 230 volt 50 Hz AC supply UPS supply is preferred because of continuous test
  • RCMT Test chamber : Plastic Tank 370 mm x 270mm x 280mm L x W x H – 1no
  • Plastic supports – 2nos
  • Silicone rubber mould 100mm ID x 150mm height -1no
  • Stainless steel clamp 20mm width 105- 110mm dia adjustable -1no
  • Vernier caliper – 1no
  • Foot Scale -1no Silver nitrate spray bottle – 1no
  • Stainless steel anode Electrode – 1no
  • Stainless steel Cathode electrode -1 no.
  • Connecting cable -2 nos
  • Hammer – 1no
  • Migration coefficient in concrete specimen


Related Searches

SPECIFICATIONS

  • DC voltage : 0-60 volt DC
  • Current : 0-1000 mA DC
  • Temperature sensor : PT 100 RTD
  • Range : 0-99.9 deg C
  • Power input : 230 volt 50 Hz AC supply UPS supply is preferred because of continuous test
  • RCMT Test chamber : Plastic Tank 370 mm x 270mm x 280mm L x W x H – 1no
  • Plastic supports – 2nos
  • Silicone rubber mould 100mm ID x 150mm height -1no
  • Stainless steel clamp 20mm width 105- 110mm dia adjustable -1no
  • Vernier caliper – 1no
  • Foot Scale -1no Silver nitrate spray bottle – 1no
  • Stainless steel anode Electrode – 1no
  • Stainless steel Cathode electrode -1 no.
  • Connecting cable -2 nos
  • Hammer – 1no
  • Migration coefficient in concrete specimen

FEATURES

  • DC voltage : 0-60 volt DC
  • Current : 0-1000 mA DC
  • Temperature sensor : PT 100 RTD
  • Range : 0-99.9 deg C
  • Power input : 230 volt 50 Hz AC supply UPS supply is preferred because of continuous test
  • RCMT Test chamber : Plastic Tank 370 mm x 270mm x 280mm L x W x H – 1no
  • Plastic supports – 2nos
  • Silicone rubber mould 100mm ID x 150mm height -1no
  • Stainless steel clamp 20mm width 105- 110mm dia adjustable -1no
  • Vernier caliper – 1no
  • Foot Scale -1no Silver nitrate spray bottle – 1no
  • Stainless steel anode Electrode – 1no
  • Stainless steel Cathode electrode -1 no.
  • Connecting cable -2 nos
  • Hammer – 1no
  • Migration coefficient in concrete specimen

PRODUCT VIDEO

WORKING PRINCIPALNew
