short info

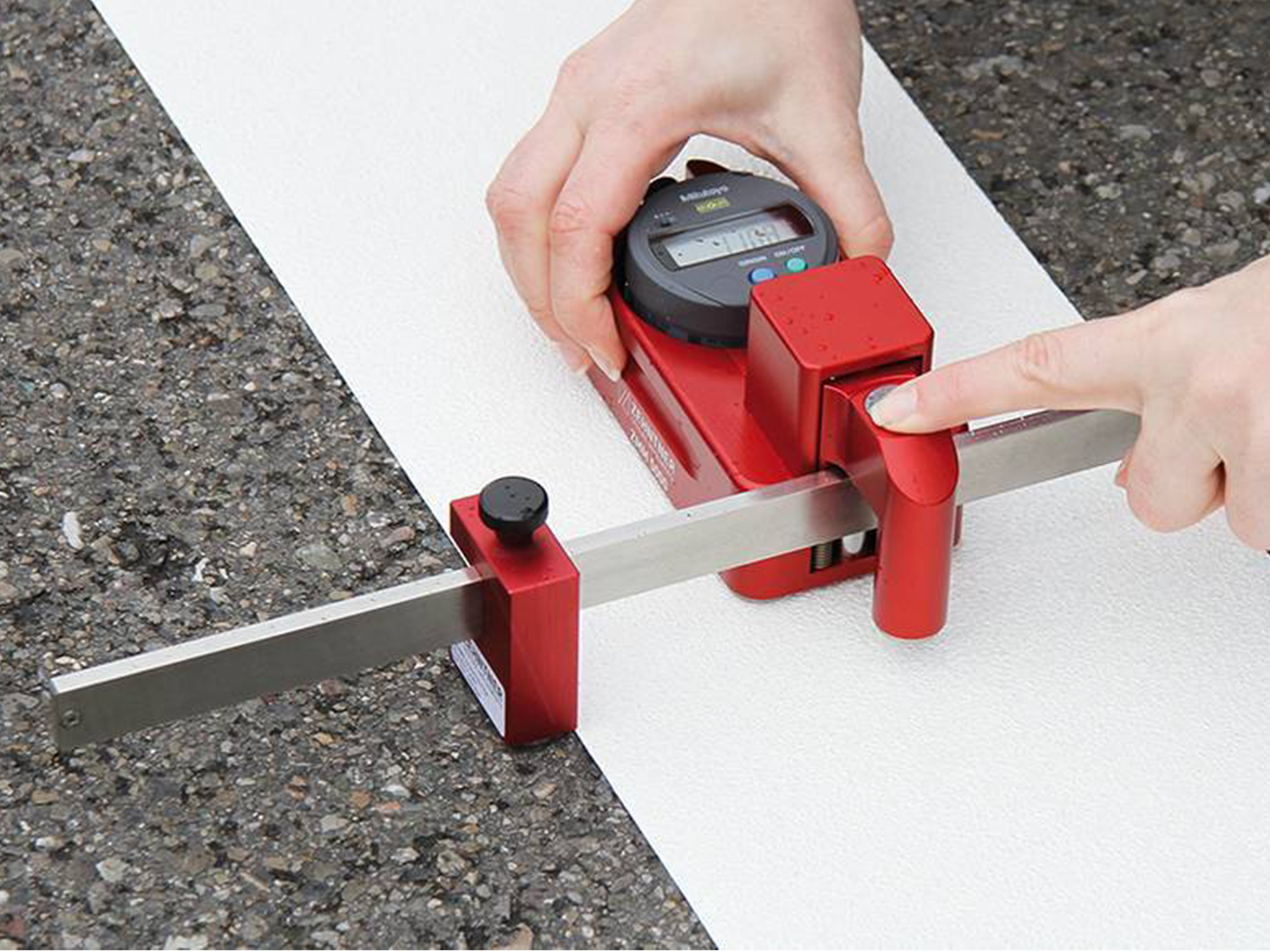

The rapid determination of dry film thickness of road markings and similar coatings.
Model
Origin
Make/ OEM
Specification
| Material | red anodised aluminium |
| Measuring range | version 5000.mm: -12.5 mm to +12.5 mm version 5000.inch: -0.5“ to +0.5“ changeable to -12.5 mm to +12.5 mm |
| Resolution | 10 µm (0.4 mil) |
| Bearing area (WxL) | min. 67 mm x 100 mm (2.64“ x 3.94“) |
| Display | digital |
| Dimensions (LxWxH) | 180 mm x 70 mm x 80 mm (7.1“ x 2.8“ x 3.15“) |
| Weight | 880 g (1.9 lbs) |
| Standards | EN 13197, ZTV M 13 |
| Warranty | 2 years, 1 year digimatic indicator |
