OVERVIEW

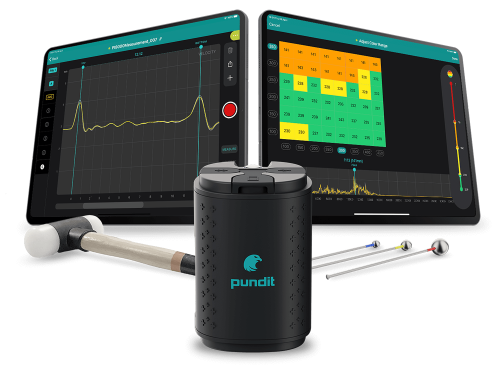

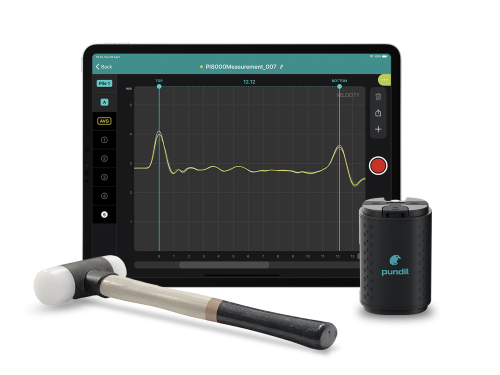

The Pundit PI8000 is a combined Sonic Echo pile integrity and impact echo test system. Pile integrity tests are used to confirm new piles are free of voiding and defects, and the test is also commonly used to assess the length of unknown piles.

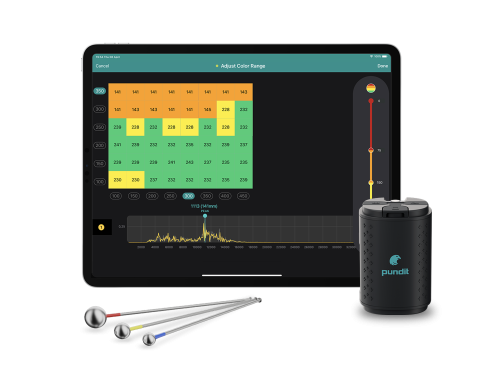

Impact echo testing is used to test the thickness of concrete plates like walls and floor slabs, and to detect voiding, delamination and defects in concrete.

SPECIFICATIONS

Technical Specifications

Range: >35 kHz, +/- 50 g
Resonant Frequency: > 50 kHz
Sampling Rate: 400 kSPS
Weight: 144 g (Including battery)
Battery: Standard AA, alkaline or rechargeable
Dimension: 85 x 56 x 59 mm

FEATURES

Pile Integrity Features

Integrated with Workspace, Screening Eagle’s hub for test data
Impact monitoring for efficient data collection
Exclude or delete invalid impacts
Handle large diameter piles with multiple sensor locations visually recorded, stored in a single Workspace file
Apply filter settings to all piles of the same type simultaneously
Compare piles for quick identification of outliers
Assign a status to each pile and log iPad GPS positioning
Add text, voice notes and photos to your measurement data
Create reports and share them instantly with colleagues
