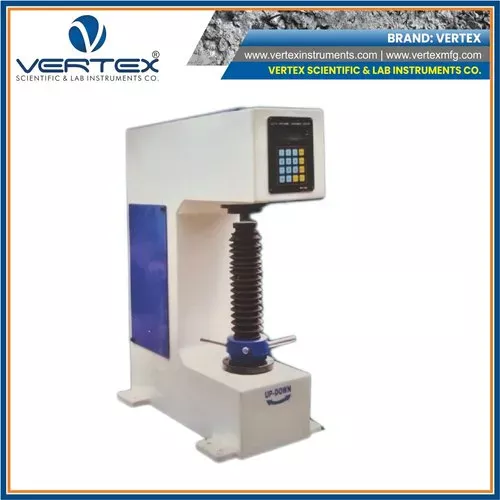

This is motorized machine having automatic loading/unloading cycle suitable for production testing.
The machine body is having a taper front look and large size read-out in the front. The machine is powder coated for better look. The paint shade do not fade and machine looks like new over years.
The elevating screw of machine is guided in a hardened and ground bush, not allowing movement of elevating screw more than 0.05 mm when raised to full height. The accuracy is retained for years together due to hardened bush.
A hardened and ground stepped bush is fixed on top of main screw for location and rest surface. This guarantees no change in results due to rough handling of test table or test piece. It means a trouble free long life machine accuracy.
An antifriction linear bearing with almost no clearance is provided for a perfect vertical movement of loading plunger with minimum friction. This enables testing of small dia. Pin or ball upto 3 mm dia.
These models are provided with automatic working cycle and digital LCD display with 0.1 Rockwell resolution. This insures productivity with better accuracy.
IS:1586 (Part 2) 2012 for Rockwell and Rockwell superficial test. IS:1500 (Part 2) 2013 for Brinell hardness test.

SPECIFICATIONS

S.NO.	Technical Parameters	Specification
1.	Type	Digital rockwell cum Brinell hardness tester including Rockwell scale A,B,C,D,E,F,G,H,K,L,M,P,R,S,V confirming to IS: 1586, ISO 6508-1 for measurement
2.	Operation Cycle	Automatic Load/dwell/Unload
3.	Preliminary Test Force	98.07N (10kgf)
4.	Additional Test Force	490.3, 882.6, 1373, 1471, 2354N (50, 90, 140, 177.5, 240 kgf)
5.	Total Test Force	588.4, 980.7, 1471, 1839, 2452 N (60,100,150,187.5,250 kgf)
6.	Depth of throat	133mm
7.	Dwell Time	1 to 99 Seconds
8.	Test force Selection	By external Dialing
9.	Set position	With LCD Indicator
10.	Input	Key board entry through membrane switches for scale GO-NO GO & dwell time selection.
11.	Resolution	0.1 Rockwell
12.	Output	Data export to PC or serial printer Serial PC interface & windows software for Rockwell Scale, USB Connectivity
13.	Test Results	Sr. No. of results, hardness scale, hardness value, high/good/low indication.
14.	Calibration	Instrument to be calibrated by an NABL accredited lab.
15.	Power Supply	230 V Ac, 50Hz, Single Phase

Accessories: –

Testing table 50mm dia- 01No.
Testing table 200mm dia- 01No.
Testing table 38mm dia with V groove for job 6-45mm-01No.
Diamond Indenter- 02 Nos.
Tungsten Carbide Ball Indentor 1/16” with 2 spare balls.
Test Block Rockwell “C” (NABL Certified)-01 No. HRC scale
Test Block Rockwell “B” (NABL Certified)-01 No. HRC scale
Test Block BHN (100-225 BHN & 225 to 300 BHN) (NABL Certified)
Brinell Micrscope- 01 No.
Steel ball 2.5mm ball Indenter-01 No. with 02 spare balls
Steel ball 5.0mm ball Indenter-01 No. with 02 spare balls
Steel ball 19mm ball Indenter-01 No.
Fixtures/Anvil for twist drill 2.0 mm to 10.0 mm (like 2.5, 3.2, 4.5..etc)
Allen spanner set
Wooden Box for standard accessories
Power Cable-01 No.

COMPUTERISED BRINELL MICROSCOPE & SOFTWARE FOR BRINELL HARDNESS MEASUREMENT

Measuring Range of Ball impression 0-3mm
Least Count 001mm
Hardness measurement mode in software AUTO, SEMI-AUTO & MANUAL
Calibration Facility To be Available in software

FEATURES

This is motorized machine having automatic loading/unloading cycle suitable for production testing.
The machine body is having a taper front look and large size read-out in the front. The machine is powder coated for better look. The paint shade do not fade and machine looks like new over years.
The elevating screw of machine is guided in a hardened and ground bush, not allowing movement of elevating screw more than 0.05 mm when raised to full height. The accuracy is retained for years together due to hardened bush.
A hardened and ground stepped bush is fixed on top of main screw for location and rest surface. This guarantees no change in results due to rough handling of test table or test piece. It means a trouble free long life machine accuracy.
An antifriction linear bearing with almost no clearance is provided for a perfect vertical movement of loading plunger with minimum friction. This enables testing of small dia. Pin or ball upto 3 mm dia.
These models are provided with automatic working cycle and digital LCD display with 0.1 Rockwell resolution. This insures productivity with better accuracy.
IS:1586 (Part 2) 2012 for Rockwell and Rockwell superficial test. IS:1500 (Part 2) 2013 for Brinell hardness test.
