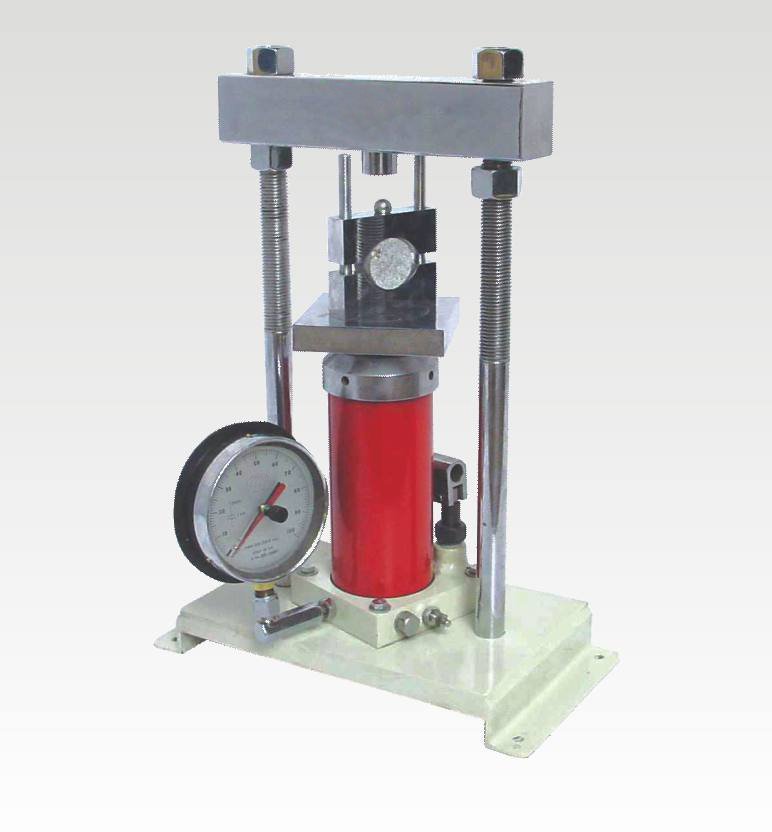

Premium Brazilian Test Apparatus with 100kN Pressure Gauge VSLIC-R111

short info

Brazilian Test is a test for indirect measurement of tensile strength of rocks. The apparatus for carrying out this test, meets the essential requirements of IS:10082-1982 for use with ‘NX’ size core samples.

Standard

IS:10082-1982

Model

VSLIC-R111

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Brazilian Test is a test for indirect measurement of tensile strength of rocks. The apparatus for carrying out this test, meets the essential requirements of IS:10082-1982 for use with ‘NX’ size core samples.

The equipment comprises the following :-

  • A loading frame, 100kN Capacity, having a base and a cross head joined together with two solid pillars with nuts. At the top, the pillars have long threads for height adjustment. On the base, a 100kN hydraulic jack is centrally fixed between the pillars. This jack has an integral pumping unit and oil reservoir. A 100kN capacity pressure gauge is fixed to the jack for indicating the load on the specimen. An operating handle for the jack is also provided.
  • One Brazilian Attachment for ‘NX’ core size specimen with thickness half the diameter. It has two loading jaws. The lower jaw has two guide pins fixed with it and the upper jaw has two guide holes for the guide rods to hold the two jaws aligned. The upper jaw has a spherical seating on the upper side to seat a ball for self-alignment. Supplied complete with the steel ball.


Related Searches

SPECIFICATIONS

Brazilian Test is a test for indirect measurement of tensile strength of rocks. The apparatus for carrying out this test, meets the essential requirements of IS:10082-1982 for use with ‘NX’ size core samples.

The equipment comprises the following :-

  • A loading frame, 100kN Capacity, having a base and a cross head joined together with two solid pillars with nuts. At the top, the pillars have long threads for height adjustment. On the base, a 100kN hydraulic jack is centrally fixed between the pillars. This jack has an integral pumping unit and oil reservoir. A 100kN capacity pressure gauge is fixed to the jack for indicating the load on the specimen. An operating handle for the jack is also provided.
  • One Brazilian Attachment for ‘NX’ core size specimen with thickness half the diameter. It has two loading jaws. The lower jaw has two guide pins fixed with it and the upper jaw has two guide holes for the guide rods to hold the two jaws aligned. The upper jaw has a spherical seating on the upper side to seat a ball for self-alignment. Supplied complete with the steel ball.

FEATURES

Brazilian Test is a test for indirect measurement of tensile strength of rocks. The apparatus for carrying out this test, meets the essential requirements of IS:10082-1982 for use with ‘NX’ size core samples.

The equipment comprises the following :-

  • A loading frame, 100kN Capacity, having a base and a cross head joined together with two solid pillars with nuts. At the top, the pillars have long threads for height adjustment. On the base, a 100kN hydraulic jack is centrally fixed between the pillars. This jack has an integral pumping unit and oil reservoir. A 100kN capacity pressure gauge is fixed to the jack for indicating the load on the specimen. An operating handle for the jack is also provided.
  • One Brazilian Attachment for ‘NX’ core size specimen with thickness half the diameter. It has two loading jaws. The lower jaw has two guide pins fixed with it and the upper jaw has two guide holes for the guide rods to hold the two jaws aligned. The upper jaw has a spherical seating on the upper side to seat a ball for self-alignment. Supplied complete with the steel ball.

PRODUCT VIDEO

WORKING PRINCIPALNew
