quick info

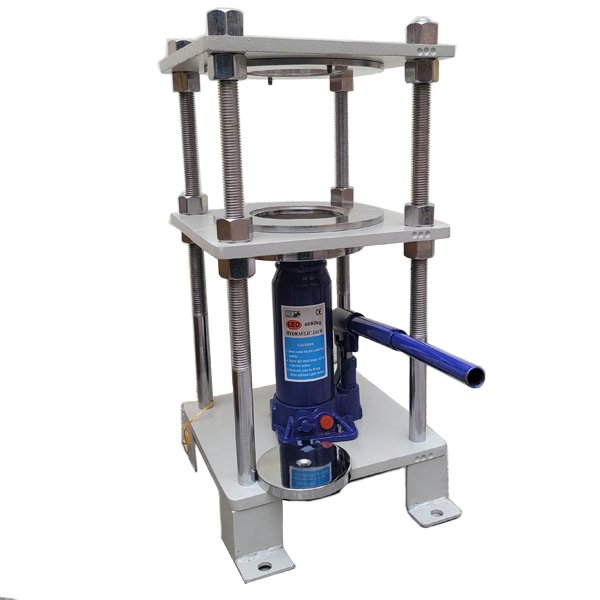

The Marshall-CBR  Sample Extractor Used to extrude samples having dia. 4”, 6”, 100 mm, and 150 mm. It can, therefore, extrude CBR, Marshall, and Proctor specimens.



Ref. Standard

ASTM D1559, ASTM D55, ASTM D692781, AASHTO T245, AASHTO T193

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-2568

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

Controls range includes a series of small and compact compression machines that can be used for several tests:

  • CBR tests on soils;
  • Marshall tests on asphalt;
  • uniaxial and unconfined tests on soils and rocks;
  • compression tests on low strength concrete, cement, and ground cement samples;
  • flexure tests on beams, mortar, tiles, and any other compression or flexure test performed under displacement and/or load closed-loop control within machine capacity.

SPECIFICATIONS

It is used for extracting 4 ”, 6” diameter, 100 mm, and 150 mm long samples. It is suitable to be used to extract CBR, Marshall, and Proctor samples.

The Sample Extractor is moved by a hydraulic jack with a power of 50 kN, having a piston length of 130 mm + 90 mm.

It is supplied with 2 Adapters for 4 ”, 6” diameter, 100 mm, and 150 mm long samples. for 60mm dia specimen.

FEATURES

  • Less maintenance.
  • Sturdy construction.
  • Easy installation.

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
