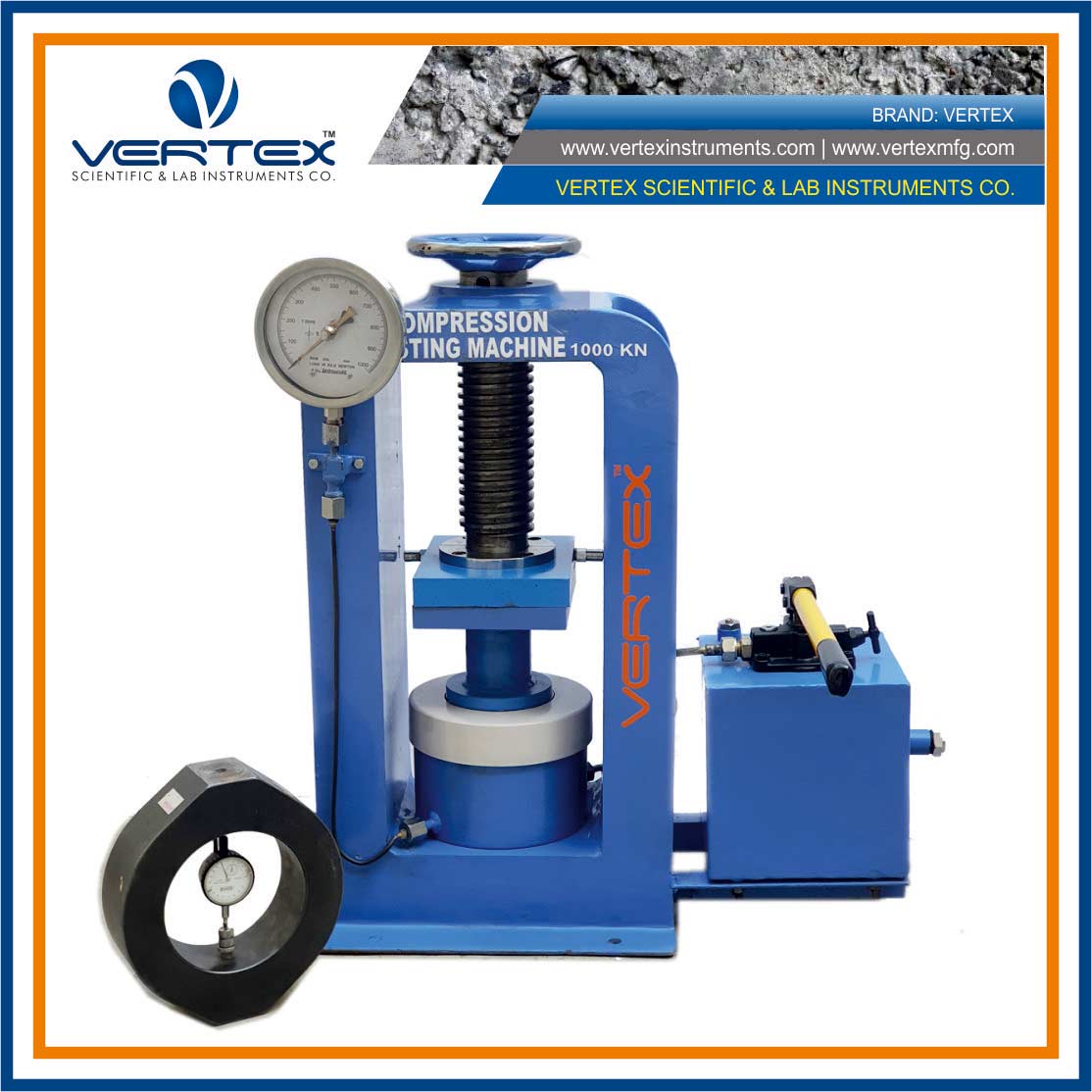

Manual Compression Testing Machine-1000kN-Polyhydron Pump VSLIC-C274

short info

For determination of compressive strength of cement by testing concrete cylinders, cubes. The machine works on hydraulic pressure gauge marked in 5 KN division and is fitted with maximum red pointer, in addition to the live pointer.

Standard

IS: 14858:2000, IS:516

Model

VSLIC-C274

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

For carrying out Compressive Strength Test on mortar and concrete cubes.

The frame is a totally welded type or pillar type to give structural stability. Even with some eccentric loading, the frame’s stability is not affected at all. The lower plate of the frame has integral jack/bolted jack and the upper plate carries the spherical seating. A special type of pump with concentric plunger is attached to the loading unit. Pressure can be created to the maximum with minimum possible effort. The outer plunger is for filling the gap without taking load and gets automatically disconnected on closing of the gap.

Pressure gauge is fixed at an angle for the ease of readings and is calibrated against standard dynamometer calibrated by either NPL or NCCBM.

Accuracy of the machine is maintained within ±2% as per IS 516, BS 1610 grade Ior on special request can be calibrated asper BS 1881, DIN 51220.

Price and Technical specifications mentioned here are subject to change as per the features and application, customer requirements and prevailing market conditions. Please refer to us for the final rates and offer.


Related Searches

SPECIFICATIONS

For carrying out Compressive Strength Test on mortar and concrete cubes.

The frame is a totally welded type or pillar type to give structural stability. Even with some eccentric loading, the frame’s stability is not affected at all. The lower plate of the frame has integral jack/bolted jack and the upper plate carries the spherical seating. A special type of pump with concentric plunger is attached to the loading unit. Pressure can be created to the maximum with minimum possible effort. The outer plunger is for filling the gap without taking load and gets automatically disconnected on closing of the gap.

Pressure gauge is fixed at an angle for the ease of readings and is calibrated against standard dynamometer calibrated by either NPL or NCCBM.

Accuracy of the machine is maintained within ±2% as per IS 516, BS 1610 grade Ior on special request can be calibrated asper BS 1881, DIN 51220.

FEATURES

  • 1000 KN (100 Tons) Capacity (Economy Channel Model)
  • Molds of Various sizes 15 cm x 15 cm x cubes, 10 cm x 10 cm x cubes, 7.06 cm x 7.06 cm cubes, 15 cm x 30 cm cylindrical molds
