Our organization holds specialization in the manufacturing, suppliying and exporting of high quality Losses in Pipes Apparatus. An apparatus for determination of losses due to sudden enlargement, contraction, bends, elbows in pipes control valve, tapping for pressure measurement etc. the unit is to be supplied with 15cm, and 25mm. Pipes, differential Manometer stop clock etc.

Model

VSLIC-FM09

Origin

Indian

Make/ OEM

VERTEX

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

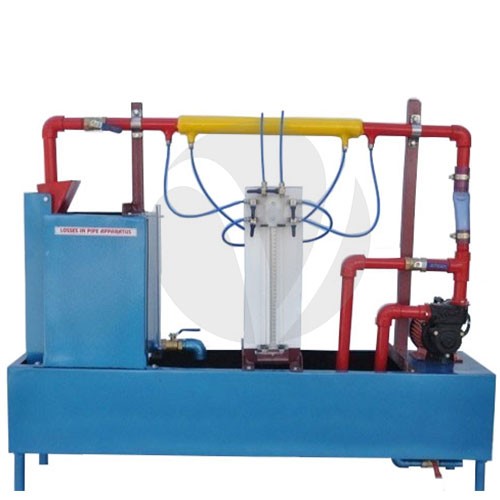

Our organization holds specialization in the manufacturing, suppliying and exporting of high quality Losses in Pipes Apparatus. An apparatus for determination of losses due to sudden enlargement, contraction, bends, elbows in pipes control valve, tapping for pressure measurement etc. the unit is to be supplied with 15cm, and 25mm. Pipes, differential Manometer stop clock etc. A liquid flowing through a pipe will experience energy losses due to viscous resistance. This apparatus is used to measure the losses due to Sudden Enlargement Sudden Contraction Large bend Gate Valve.

The apparatus consists of:

  • A Centrifugal pump of 25mm X 25mm with VS HP Motor (ISI Make)
  • M.S. Sump Tank 80 Ltr. to collect the water.
  • M.S Measuring Tank 40 Ltr fitted with pizometer tube to measure the discharge. Damper is used to collect the water in M.S.MEASURING TANK for certain time.
  • G.I pipe of internal dia 25.4mm (1″) and Gunmetal
  • ISI mark Control value and regulating valves are used to circulate water.
  • Bye-pass line is also used to regulate the discharge.

The apparatus consists of:

  • Large bend made up of G.I.
  • Sudden enlargement from 15mm dia to 32mm dia.
  • Sudden contraction from 32mm dia to 15mm.
  • Gunmetal gate valve of 15mm dia. A U tube manometer is connected to pet cock through plastic tubing to measure head difference.
  • The tanks are well epoxy painted inside to prevent rust hence increase the life of tank.

Experimental capabilities:

  • To determine the loss coefficient for different type of fittings.
  • Comparison of pressure drops across two different types
