short info

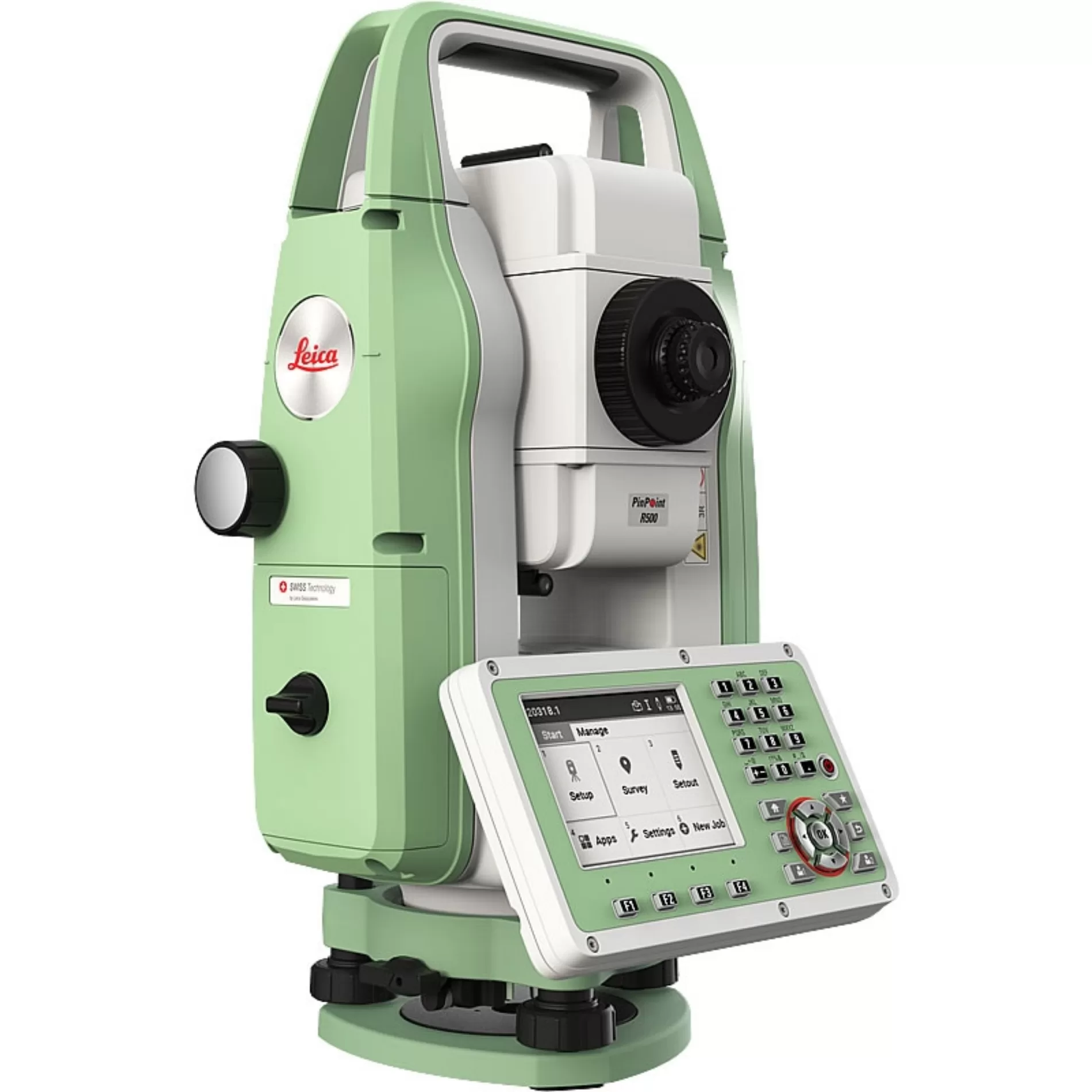

The Leica FlexLine TS03 high-quality, manual total stations are based on a proven product concept that has been revolutionising the world of measurement and survey for nearly 200 years. The instruments are equipped with a comprehensive application-based software package – Leica FlexField software – that enables most survey and stakeout tasks to be carried out easily and efficiently. The new FlexLine manual total stations work reliably and deliver accurate results even in harsh environments.

Model

TS03

Origin

Indian

Make/ OEM

Leica

Brochure


  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Key Feature of Leica Flexline TS 03 Reflectorless Total Station

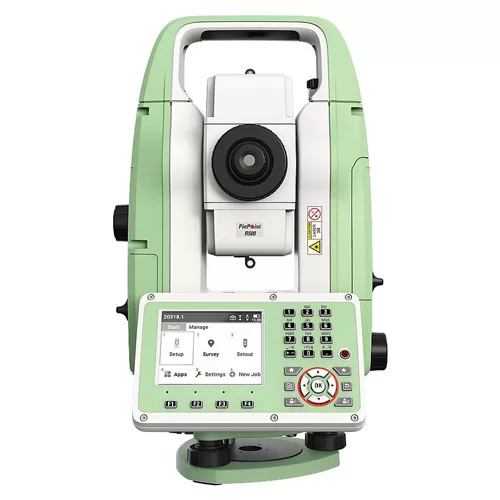

Leica FlexLine TS03 is a classic manual total station for standard measuring tasks, enabling you to carry out most survey and layout tasks easily and efficiently.

Be it building construction, civil engineering or surveying and mapping – the Leica TS03 helps you tackle your daily challenges and tasks trouble-free:

  • Managing directors of construction departments benefit from minimal downtime of your survey crews to deliver projects under budget and in time.
  • Survey managers can rely on the highest product durability in the market, which increases your planning certainty.
  • Surveyors work faster by measuring more points per day with less measurement errors and rework.

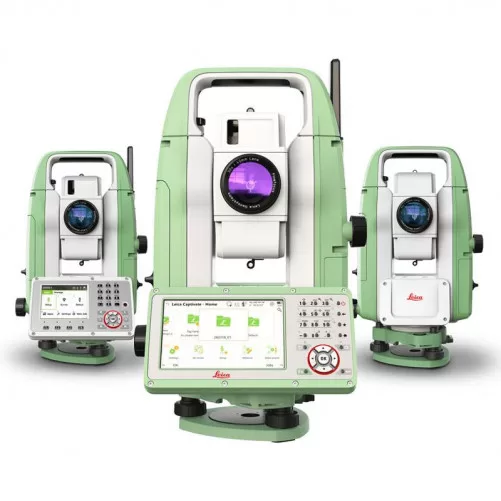

Leica FlexLine: The new generation of manual total stations
The new Leica FlexLine series is based on a proven product concept, revolutionising the world of measurement and survey for nearly 200 years. Unlike any other manual total stations in the market, Leica Geosystems manual total stations focus on providing the highest quality, the lowest total cost of ownership and the longest durability in the industry, enabling users to work with purpose-driven solutions for the best performance results.

Leica FlexField software: Comprehensive, intuitive and easy to use
The Flexline TS03 Total Station is equipped with the Leica FlexField software, an intuitive, easy-to-use and familiar software. Guided workflows and easy to understand graphics and icons ensure a low learning curve when working in the field. The software makes the interpretation of measurement values or text no longer necessary and guarantees a faster and simple operation when you need it. With its pinpoint distance measurement system, you will be able to measure to both prisms and any surfaces.

The Leica FlexLine TS03 Reflectorless Manual Total Station is one of the top-class instruments with an accurate EDM (Electronic Distance Measurement) technology that offers a reflectorless range up to 1,640 feet (500 m). This manual total station operates a range of 11,483 feet (3,500 m) using a single prism. It is also equipped with a broad application-based Leica FlexField software for better surveying and stakeout performance.

The FlexLine TS 03 total station features a quadruple axis compensation that has a setting accuracy of up to 0.5 second and range of ±4’. For better target viewing, the TS03 telescope has a 30x magnification, 3” resolving power and a focusing range of 5.05 feet to infinity. It utilizes a Laserclass 2 laser plummet that covers a diameter of 0.1 inches at 4.9 feet instrument height. To easily manage data, it has an RS232 interface and a USB stick/SD card interface, which can accommodate 2GB internal flash memory and a 1GB SD card RAM.



SPECIFICATIONS

Leica Total Station Flexline TS03 Technical Specifications:

Leica FlexLine TS03
ANGULAR MEASUREMENT
Accuracy Hz and V Absolute, continuous, diametrical 2’’ / 3’’ / 5’’
  • Display resolution: 0.1″ (0.1 mgon)
  • Quadruple axis compensation
  • Compensator setting accuracy: 0.5″ / 1″/ 1.5″ / 2″
  • Compensator range: +/- 3.78′ (+/- 0.07gon)
  • Electronic level resolution: 2″
  • Circular level sensitivity: 6′ / 2mm
yes
DISTANCE MEASUREMENT
Range
  • Prism (GPR1, GPH1P): 1.5m to 3.500m
  • Prism GPR1 (Long Range mode) > 10.000m
yes
Non-Prism / Any surface
R500 yes
R1000 no
Accuracy / Measurement time Single prism

  • Precise+ / Once: 1mm + 1.5ppm (typical 2.4s)
  • Precise&Fast / Once&Fast: 2mm + 1.5ppm (typical 2s)
  • Tracking / Continously: 3mm + 1.5ppm (typical < 0.15s)
  • Averaging: 1mm + 1.5ppm
  • Long Range mode / > 4km: 5mm + 2ppm (typical 2.5s)
yes
Non-Prism / Any surface

  • 0 m – 500m: 2mm + 2ppm (typical 3-6s)
  • > 500m: 4mm + 2ppm (typical 3-6s)
yes
Laser dot size
  • At 30m: 7mm x 10mm
  • At 50m: 8mm x 20mm
  • At 100m: 16mm x 25mm
yes
Telescope
  • Magnification: 30x
  • Resolving power: 3”
  • Focusing range: 1.55m / 5.08ft to infinity
  • Field of view: 1°30’ / 1.66gon / 2.7m at 100m
yes
GENERAL
Display and keyboard 3.5“ (inch), 320 x 240 px QVGA, grayscale, 28 keys yes
2nd keyboard no
Key illumination no
Operation
  • Endless drives for HZ & V
  • Trigger-Key: user definable with 2 functions
yes
Power management Exchangeable Lithium-Ion battery yes
Operating time with GEB361 up to 30h
Operating time with GEB331 up to 15h
Battery charging time with
GKL341 charger for GEB361 / GEB331 3h 30min / 3h
GKL311 charger for GEB361 / GEB331 6h 30min / 3h 30min
Data storage
  • Internal memory: 2GB Flash
  • Memory card: SD card 1GB or 8GB
  • USB memory stick: 1GB
yes
Processor
  • TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™
  • Operating system – Windows EC7
yes
Interfaces RS2327, USB device yes
Bluetooth®8, WLAN9 no
Mobile Data sidecover: LTE-Modem for internet access no
Guide Light (EGL)
  • Working range: 5m to 150m
  • Position accuracy: 5cm at 100m
  • Wavelength red /orange: 617nm / 593nm
no
Laser plummet
(Laserclass 2)
Accuracy

  • Plumb line deviation: 1.5mm at 1.5m instrument height
  • Diameter of laser point: 2.5mm at 1.5m instrument height
yes
AutoHeight module for automatic instrument height measurement (Laserclass 2) Accuracy

  • Distance accuracy: 1.0mm @ 1m
  • Distance range: 0.7m to 2.7m
no
Weight 4.3kg
Environmental specifications Working temperature range: –20°C to +50°C yes
Arctic version: –35°C to +50°C no
Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing yes
Military Standard 810G, Method 506.5 yes

FEATURES

  • 2″, 3″ & 5″ angular accuracy
  • 1.5m to 3500m Single Prism Range
  • Prism GPR1 (Long Range mode) > 10.000 m
  • R500 EDM – 500m Reflectorless Range
  • 2 GB Internal Memory Approx 100,000 Points
  • USB Memory Stick & SD Memory Card support
  • 3.5″, 320 x 240px QVGA, grayscale and full alpha numeric keyboard
  • Quadruple Axis Compensation, IP66 Protection, Laser Plummet for Centering
