short info

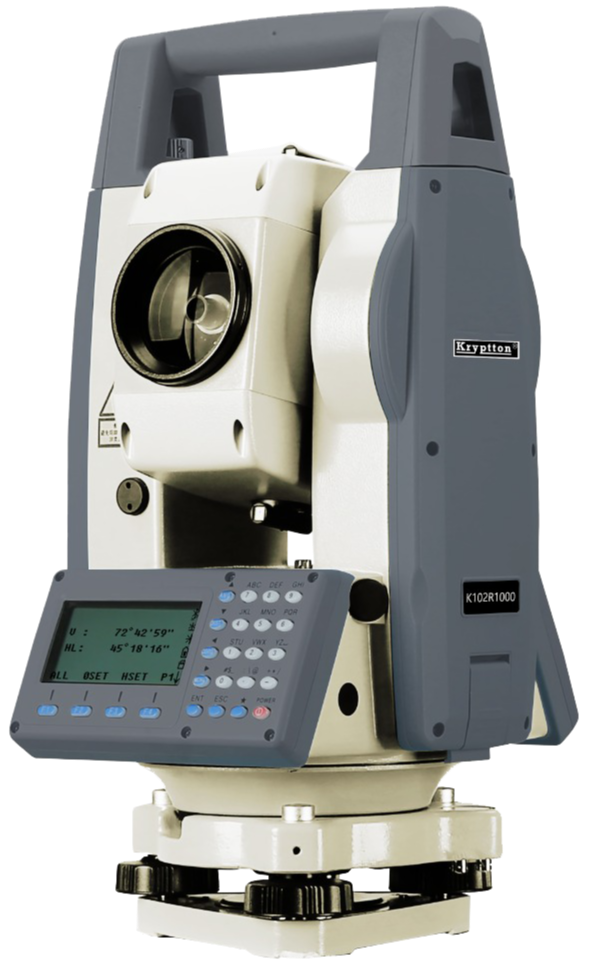

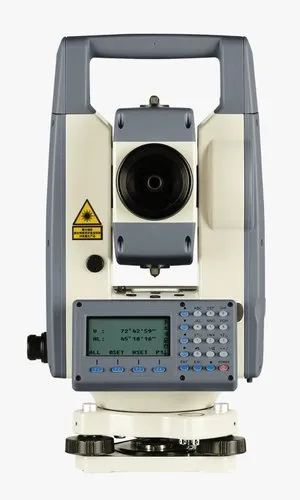

TOTAL STATION  K100R1000 (Kryptton MAKE)

Having 30x Magnification, (1”,  2″,  5″) Least Count and 1” Accuracy, Minimum Focus 1mDual Axis Compensator, Graphical Display 192×96 Pixels, 32 LINUX Base or Dot Metrix Operating System, Absolute Encoding Systems & 1,20,000 POINTS INTERNAL MEMORY, 16 GB Pen Drive, Dedicated Trigger Key, Bluetooth, (COGO Program, REM, MLM, Distance Offset, Resection, Road Survey, Angle Offset etc.), Distance Measuring Range of 5Km. with Single Prism, Without Prism 1000m, Alphanumeric Key Board (Dual Display), Road Alignment Programs, Dust & Water Proof IP65

Model

K100R1000

Origin

Indian

Make/ OEM

Kryptton

Brochure


  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

TOTAL STATION  K100R1000 (Kryptton MAKE)

Having 30x Magnification, (1”,  2″,  5″) Least Count and 1” Accuracy, Minimum Focus 1mDual Axis Compensator, Graphical Display 192×96 Pixels, 32 LINUX Base or Dot Metrix Operating System, Absolute Encoding Systems & 1,20,000 POINTS INTERNAL MEMORY, 16 GB Pen Drive, Dedicated Trigger Key, Bluetooth, (COGO Program, REM, MLM, Distance Offset, Resection, Road Survey, Angle Offset etc.), Distance Measuring Range of 5Km. with Single Prism, Without Prism 1000m, Alphanumeric Key Board (Dual Display), Road Alignment Programs, Dust & Water Proof IP65, along with following accessories: –



Accessories with Total Station

Battery Charger ZC01 (01 No.), Battery ZB01 (02 Nos.),

Pen Drive 16GB (along with Software & Manual) (01 No.),

Rain Cover (01 No.), Tool Kit (01 set), Target Sheet (01 No.),

Tool Kit (01 No.), Carrying Case (01 No.).



EXTERNAL ACCESSORIES for WORK (Including in PRICE)

Prism with Holder & Target (01 No.),

Prism Pole (01 No.)

Heavy Duty Fiberglass Tripod Dual Lock (01 No.)



SPECIFICATIONS

Product Details:

Model Name/Number K100R1000
Brand Kryptton
Usage/Application Land Survey
Distance Measurement 1000m
Angle Measurement Accuracy 1″, 2″, 5″
Minimum Readout 1mm
Features Z Cordinate, REM, MLM, Data Collect, Point to Line, Road Survey, Area Measurement etc.
Color Grey
Battery Operation Li-ion Battery ZB01 3100mAh
Display Panel LCD Display Double Side
Display Type Black & White Display with Contrast
Keyboard Alphanumeric Keyboard
Magnification 30x
Measuring Time 1″
Wireless Communication Bluetooth
Field Of View 1deg 30min.
Internal Memory 1,20,000 Points
Least Count 1″
Weight 5.5kg.
IP66 Protection IP65
Warranty 2 Years
Axis Compensator Dual Axis
Bluetooth Yes
Dimension 50x30x40cm
Max Measuring Distance 5000m with Prism
Non Prism Range 1000m
Screen Black & White
Tangent Drives Dedicated Red Trigger Key (for fast Survey Work)
Waterproof Rating IP65
Storage Temperature -40degC + 70degC
Reflective sheet Yes
Carrying case Yes
Data Storage 1,20,000 Points
Pole Material Aluminum
Data Interface USB Drive
Reading System Linux Base or Dot Metrix Operating System
Mini Focus 1m
Operatig Temperature -20degC + 60degC
Optical plummet Laser Plummet
Trigger key Yes
Reflector less 1000m
IP IP65

FEATURES

Product Details:

Model Name/Number K100R1000
Brand Kryptton
Usage/Application Land Survey
Distance Measurement 1000m
Angle Measurement Accuracy 1″, 2″, 5″
Minimum Readout 1mm
Features Z Cordinate, REM, MLM, Data Collect, Point to Line, Road Survey, Area Measurement etc.
Color Grey
Battery Operation Li-ion Battery ZB01 3100mAh
Display Panel LCD Display Double Side
Display Type Black & White Display with Contrast
Keyboard Alphanumeric Keyboard
Magnification 30x
Measuring Time 1″
Wireless Communication Bluetooth
Field Of View 1deg 30min.
Internal Memory 1,20,000 Points
Least Count 1″
Weight 5.5kg.
IP66 Protection IP65
Warranty 2 Years
Axis Compensator Dual Axis
Bluetooth Yes
Dimension 50x30x40cm
Max Measuring Distance 5000m with Prism
Non Prism Range 1000m
Screen Black & White
Tangent Drives Dedicated Red Trigger Key (for fast Survey Work)
Waterproof Rating IP65
Storage Temperature -40degC + 70degC
Reflective sheet Yes
Carrying case Yes
Data Storage 1,20,000 Points
Pole Material Aluminum
Data Interface USB Drive
Reading System Linux Base or Dot Metrix Operating System
Mini Focus 1m
Operatig Temperature -20degC + 60degC
Optical plummet Laser Plummet
Trigger key Yes
Reflector less 1000m
IP IP65
