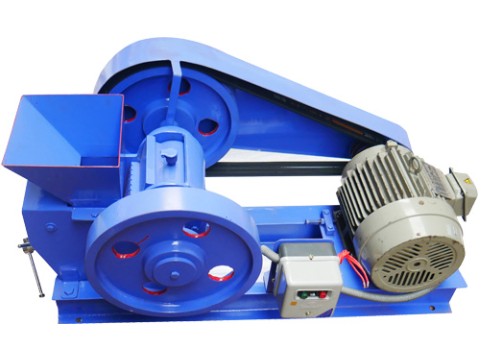

Jaw Crusher VSLIC-A122

short info

A Jaw Crusher is one of the main types of primary crushers in a mine or ore processing plant. The size of a jaw crusher is designated by the rectangular or square opening at the top of the jaws (feed opening).

Standard

AS PER IS STANDARD

Model

VSLIC-A122

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

For instance, a 24 x 36 jaw crusher has an opening of 24″ by 36″, a 56 x 56 jaw crusher has an opening of 56″ square. Primary jaw crushers are typical of the square opening design, and secondary jaw crushers are of the rectangular opening design. However, there are many exceptions to this general rule.
A Jaw Crusher reduces large size rocks or ore by placing the rock into compression. A fixed jaw, mounted in a “V” alignment is the stationary breaking surface, while the movable jaw exerts a force on the rock by forcing it against the stationary plate. The space at the bottom of the “V” aligned jaw plates is the crusher product size gap or the size of the crushed product from the jaw crusher. The rock remains in the jaws until it is small enough to pass through the gap at the bottom of the jaws.


Related Searches

SPECIFICATIONS

Designed to speed-up the crushing of aggregates, Ores, Mineral, Coal, and similar materials.

  • Compact and rugged for laboratory and small production units.
  • Manganese steel jaws adjustable up to 6 mm opening.
  • 250kg materials can be crushed in approx. eight hours
  • Discharging opening adjustment range: 3-10mm
  • Supported by a strong steel frame.
  • Suitable to crush any type of stone up to 45mm.
  • Suitable for cement and chemical laboratories.

FEATURES

  • Dual disc design makes the working of the device smooth and the final product is of uniform size.
  • Made to match international quality standards.
  • Available at competitive rates to match the market trend.
