In most industrial processes including reactors, heat is to be added or extracted to control the process. The addition and removal of heat is done by passing steam or water in a jacket fitted to the outside of the vessel or passing steam or cold water in helical coil inside the vessel. For effective heat transfer and even distribution of heat, the liquid inside is continuously agitated. The present set-up offers us a comparative study of Jacket Helical coil, which can be operated simultaneously. It is a stainless steel jacketed vessel with helical coil of copper is fitted inside.

Model

VSLIC-HM12

Origin

Indian

Make/ OEM

VERTEX

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

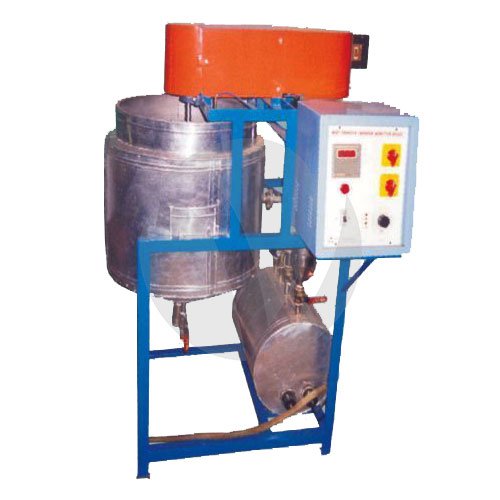

In most industrial processes including reactors, heat is to be added or extracted to control the process. The addition and removal of heat is done by passing steam or water in a jacket fitted to the outside of the vessel or passing steam or cold water in helical coil inside the vessel. For effective heat transfer and even distribution of heat, the liquid inside is continuously agitated. The present set-up offers us a comparative study of Jacket Helical coil, which can be operated simultaneously. It is a stainless steel jacketed vessel with helical coil of copper is fitted inside.

Technical Specifications:

  • System : Steam to Water
  • Vessel : Material stainless steel fitted with 4 baffles
  • Dia. 250, Depth 350 mm (Approx.)
  • Jacket : Width 25 mm. Insulated with ceramic wool
  • and Cladded with aluminum foil.
  • Helical Coil : Material Copper, OD 16mm, ID 13mm.
  • Agitator : Stainless steel Impeller fitted on a shaft
  • coupled to a variable speed motor and Drive.
  • Condensate Measurement : Measuring Cylinder Stopwatch
  • Water Flow Measurement : Rotameter.
  • Steam Generator : Made of stainless steel fitted with level
  • The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure
