Used for making flow tests for consistency of mortars in tests of hydraulic cements and pozzolanic materials.

It comprises the following :-

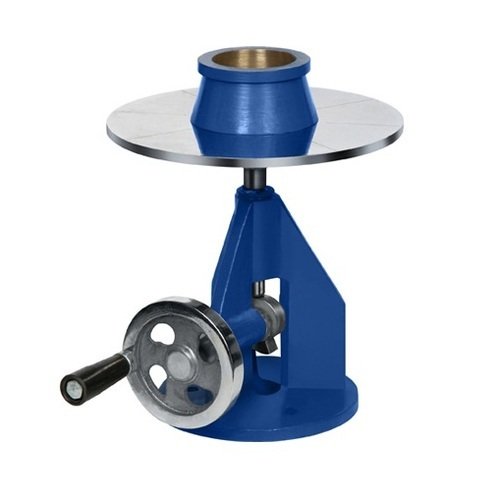

  • A machined table top 250 mm dia of Gun metal fitted with a vertical shaft. Total weight 4.00 ± 0.05 kg.
  • A cast iron frame with a machined base and a smooth vertical hole at the top for the table shaft. It has a horizontal shaft carrying a cam at one end and a hand wheel at the other. The cam allows 12 mm free drop of the table.
  • A conical mould 100 mm inside dia at bottom, 70 mm inside dia at top and 50 mm high.

Standard

IS: 1199, AASHTO T126

Model

VSLIC-C107

Origin

Indian

Make/ OEM

VERTEX

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

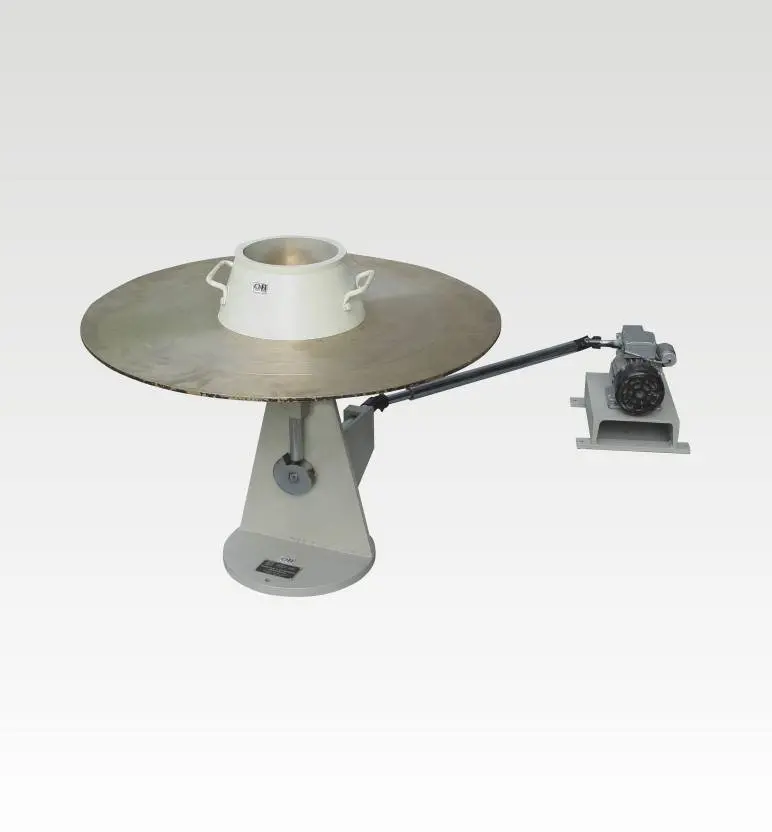

The hand operated model is fitted with a hand wheel. The motor operated model is driven by a motor speed reducer through a mechanical coupling at the rate of 1 revolution per second. The number of drops is preset on a counter and the machine stops automatically at the end of the cycle.

EN model, the table is manufactured from stainless steel and has a 300 mm diameter table. The conical mould is made of brass and has dimensions of 100 mm base dia. x 70 mm top dia. x 60 mm height.

ASTM model; the table is manufactured from brass and has 254 mm diameter. The conical mould is made of brass has dimensions of 100 mm base dia. X 70 mm top dia. X 50 mm height. Both models are supplied complete with brass flow mould and tamper.

Used for making flow tests for consistency of mortars in tests of hydraulic cements and pozzolanic materials.

It comprises the following :-
  • A machined table top 250 mm dia of Gun metal fitted with a vertical shaft. Total weight 4.00 ± 0.05 kg.
  • A cast iron frame with a machined base and a smooth vertical hole at the top for the table shaft. It has a horizontal shaft carrying a cam at one end and a hand wheel at the other. The cam allows 12 mm free drop of the table.
  • A conical mould 100 mm inside dia at bottom, 70 mm inside dia at top and 50 mm high.

Used for determination of fluidity of cement concrete mixture where the nominal size of aggregate does not exceed 38 mm.

It consist of the following ;-

  • A brass table top 762 mm dia, finely machined at the top and having reinforcing ribs at the bottom. A vertical shaft is fitted to the underside of the table in the centre.
  • A steel frame with machined base and a polished smooth vertical hole for the table shaft. A horizontal shaft carries a cam at one end and a hand wheel at the other. The cam is adjusted to give a free drop of 12.5 mm to the table top.
  • A conical mould in the form of frustum of a cone 250 mm inside dia at base, 170 mm inside dia at top and 120 mm high. It is provided with two lifting handles.



SPECIFICATIONS

Technical Specification

Table Diameter 254 mm 300 mm
Cone Base/Top Diameter 100.0 mm /70.0 mm 100.0mm /70.0 mm
Cone Height 50.0 mm 60.0 mm
Drop Height 12.7 mm 10.0 mm

Technical Specification

Dimensions Manual 260x260x270 mm
Motorized 470x360x350 mm
Weight (approx.) Manual 13 kg
Motorized 36 kg
Power 180 W ( Motorized )

FEATURES

Technical Specification

Table Diameter 254 mm 300 mm
Cone Base/Top Diameter 100.0 mm /70.0 mm 100.0mm /70.0 mm
Cone Height 50.0 mm 60.0 mm
Drop Height 12.7 mm 10.0 mm

Technical Specification

Dimensions Manual 260x260x270 mm
Motorized 470x360x350 mm
Weight (approx.) Manual 13 kg
Motorized 36 kg
Power 180 W ( Motorized )
