short info

  • Digital Jar Test Apparatus/Jar Tester/ Digital Flocculator with RPM & Timer
  • VERTEX manufactures Jar test Apparatus for testing water-soluble polymers.
  • Most importantly used with conventional wastewater treatment processes such as coagulation, flocculation, and sedimentation in the water, wastewater treatment, flock formation test in water treatment plants, and other industrial applications.
  • It is a Laboratory mixing and stirring equipment for the water treatment industry.
  • Vertex is known for its customization & better quality product with the best price in India.

Standard

As Per Standard

Model

VSLIC-E109

Origin

Indian

Make/ OEM

VERTEX

Brochure


  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Vertex manufactures Jar test Apparatus for testing water-soluble polymers. Most importantly used with conventional wastewater treatment processes such as coagulation, flocculation, and sedimentation in the water, wastewater treatment, flock formation test in water treatment plants, and other industrial applications. It is a Laboratory mixing and stirring equipment for the water treatment industry. Vertex is known for its customization & better quality product with the best price in India.

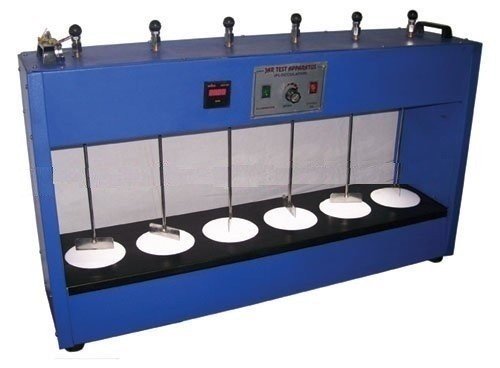

Jar Test Flocculator used for a uniform stirring of samples in a water testing laboratory. The unit is provided with speed regulator for variable speed, S.S. Stirring shafts with adjustable height, S.S. propeller, and tube light is provided at base for illumination). This efficient machine is manufactured using quality materials and advanced technology. Digital Flocculator can be customized to manual and fully automatic operation with digital display.

The digital Jar test apparatus is a very advanced instrument for Jar Test Calculation in Treatment plants. Jar Test Experiment determines the coagulation and flocculation with the help of the jar Test apparatus. Jar test Experiments depend on the objective of the experiments which is based on sedimentation, the performance of coagulants & PH results. The jar test procedure for water treatment helps in the jar test for an optimum dosage of alum. Jar Test Coagulation can be determined only when you test samples in the jar at a speed of 4 RPM to 16 RPM. High speed will not allow coagulating the treated water when undergoing the Jar test.

Jar Test Apparatus Principle – Digital Flocculator works on the principle of stirring from the top by spindles at low RPM speed. Low-Speed stirring provides information on coagulation & flocculation of untreated water in the jar. Speed regulator can fix the speed and display will show accurate results of RPM. Jar Test calculation is based on the coagulation and which develop in a jar only after mixing of Samples at low-speed RPM.



SPECIFICATIONS

Application:
  • ETP
  • STP
  • R&D laboratory
  • Hotel Industry
  • Industrial Complexes
  • Water Research Industry



Features:
  • Finds usage as Laboratory mixing and stirring equipment
  • Efficient and Economical handling of Flocculation matter
  • Used for water treatment Application
  • Correct estimation of dosing of alum and other coagulants
  • Equipment designed for flock formation tests in water
  • Equipment saves expense through putting end to unnecessary chemical waste
  • Six paddle stirrer presence that supports a determination of the exact amount of input needed to trigger flocculation
  • Easy regulation of stirrer speed
  • Stainless steel stirring paddles
  • Housing made of mild steel sheet in a powder-coated finish
Jar test Apparatus Specifications:
No. of Jar (Stirrer options) 2 4 6
Speed range 2 to 250 RPM (Made available in variable speed control)
Pre-set programs 2
Timer Digital timer supports – 0 to 99 minutes
Controls Keypad Touch-sensitive
Digital Display LED, digital rpm indicator support
Power 220 v ac supply, 50 Hz, 100 W
Temperature 35 oC
Accuracy +/-  2 RPM
Size Standard and Customized
Body Powder-coated body finish

We offer on year warranty with ten years of spare parts availability to all available models for customer satisfaction. We believe in better quality and great after-sales support.

FEATURES

Features:
  • Finds usage as Laboratory mixing and stirring equipment
  • Efficient and Economical handling of Flocculation matter
  • Used for water treatment Application
  • Correct estimation of dosing of alum and other coagulants
  • Equipment designed for flock formation tests in water
  • Equipment saves expense through putting end to unnecessary chemical waste
  • Six paddle stirrer presence that supports a determination of the exact amount of input needed to trigger flocculation
  • Easy regulation of stirrer speed
  • Stainless steel stirring paddles
  • Housing made of mild steel sheet in a powder-coated finish

PRODUCT VIDEO

WORKING PRINCIPALNew
