short info

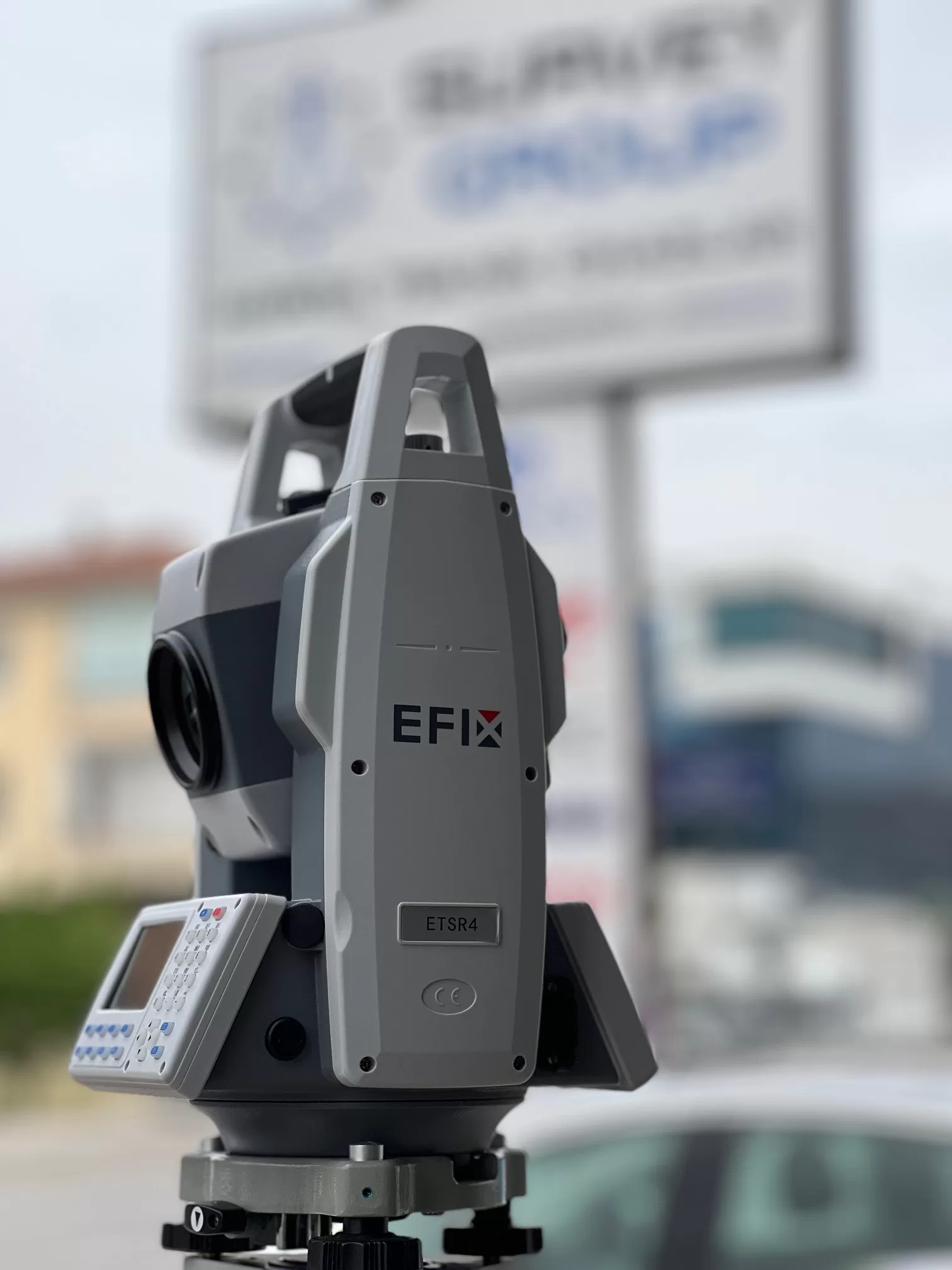

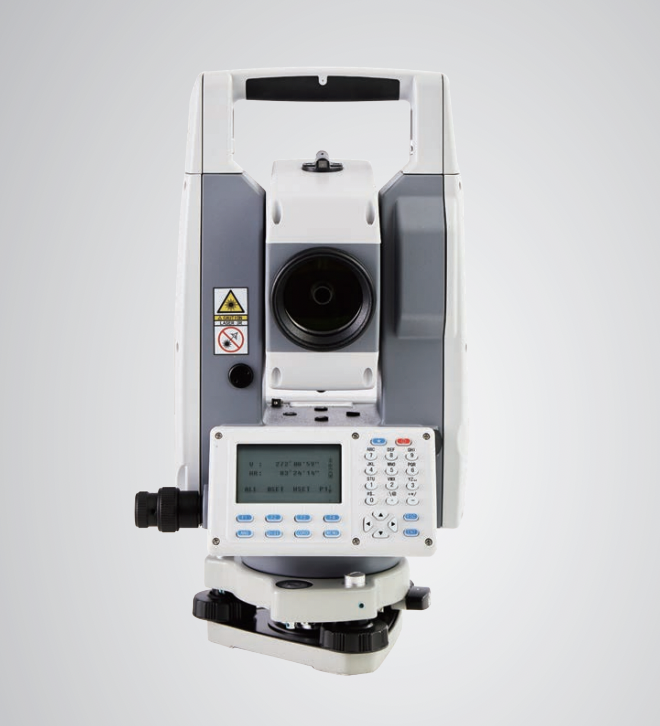

The ETSR4 is a universal, easy-to-use, reflectorless total station that offers longer range, higher accuracy and faster measurement speeds. With a reflectorless measurement range of up to 1000 metres and angular accuracy of up to 2″, the ETSR4 is designed

Model

ETSR4

Origin

Indian

Make/ OEM

EFIX

Brochure


  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

HIGH EDM PERFORMANCE
· Ultra-fast measurement in just 0.3 seconds.

· Reflectorless measurement range of up to 1000 m for greater flexibility

and convenience in the field

· Distance measurement up to 5000 m with a prism, enabling accurate

long-distance measurements

CONVENIENT DATA COMMUNICATION

· Store up to 30,000 points in the internal memory allowing for ample

data storage capacity

· Recording capacity up to 245,760,000 points with external 32 GB USB
flash drive expansion storage. This enables efficient data management
and easy transfer of road data for stakeout in .csv, .dat, .txt formats
with just one step
· Integrated Bluetooth® connectivity supports real-time communication
and control with mobile devices via field survey software



SPECIFICATIONS

Product Specification

Magnification 32X
Resolving Power 2.5 inch
Angle Measurement Accuracy 2 second
Number of Prism Single
Distance Measurement 5 km
Material Aluminum
Minimum Readout 0.5 mm
Minimum Focus 0.5m
Battery Backup 12 hrs
Data Storages 50000 points
LCD Display Panel Double Side
Usage/Application Construction, Mining, Surveying

FEATURES

The ETSR4 is a universal, easy-to-use, reflectorless total station that offers longer range, higher accuracy and faster measurement speeds. With a reflectorless measurement range of up to 1000 metres and angular accuracy of up to 2″, the ETSR4 is designed to handle even the most complex surveying tasks with ease. EFIX total station features built-in Bluetooth technology for real-time communication and control with field survey software. Its USB flash drive interface for easy data transfer eliminates the difficulties of cumbersome data management. The high-resolution LCD screen and 28-key alphanumeric keypad, together with a variety of built-in measurement programs, provide a clear and intuitive user interface that is easy to understand and operate. The replaceable battery is designed for up to 8 hours continuous use, so operators can work all day without worrying about losing power in the field. From land surveying, cadastral and property mapping to road and utility surveying, the ETSR4 is the perfect solution for surveying and construction professionals.

PRODUCT VIDEO

WORKING PRINCIPALNew
