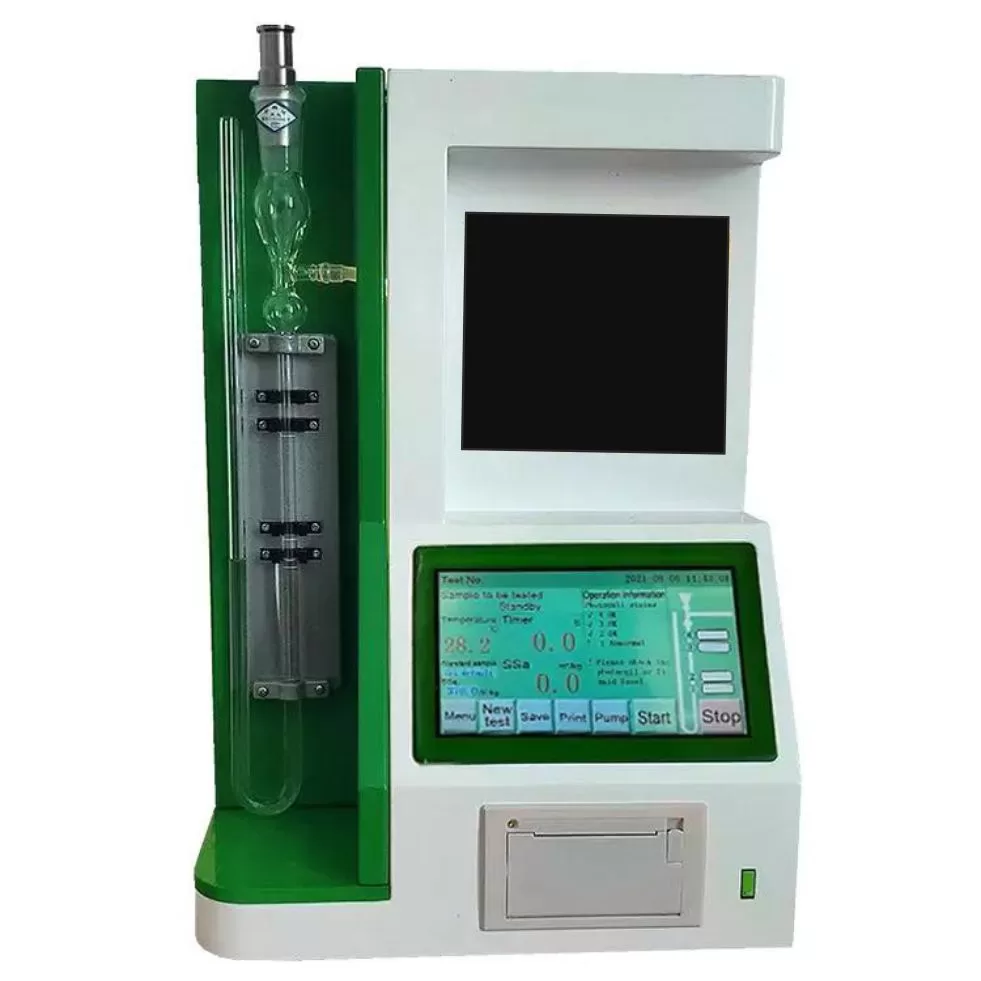

Digital Blaine Air Permeability Apparatus VSLIC-C102

short info

The apparatus is used for determining the Fineness Of Cement in terms of specific surface expressed as total surface area in square centimeters per gram of cement.

The Blaine apparatus draws a defined volume of air through a prepared bed of cement of defined porosity. This is a variable flow type air.

Standard

EN 196-6 DIN 1164 ASTM C204 AASHTO T153 BS 4359:2 UNI 7374 NF P15-442 UNE 80106

Model

VSLIC-C102

Origin

Indian

Make/ OEM

VERTEX

Brochure

DOWNLOAD

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Usage:

The apparatus is used for determining the Fineness Of Cement in terms of specific surface expressed as total surface area in square centimeters per gram of cement.

The Blaine apparatus draws a defined volume of air through a prepared bed of cement of defined porosity. This is a variable flow type air.

Characteristic:

1. The testing procedure is simple and quick.

2. The calculation accuracy of the test results is high.

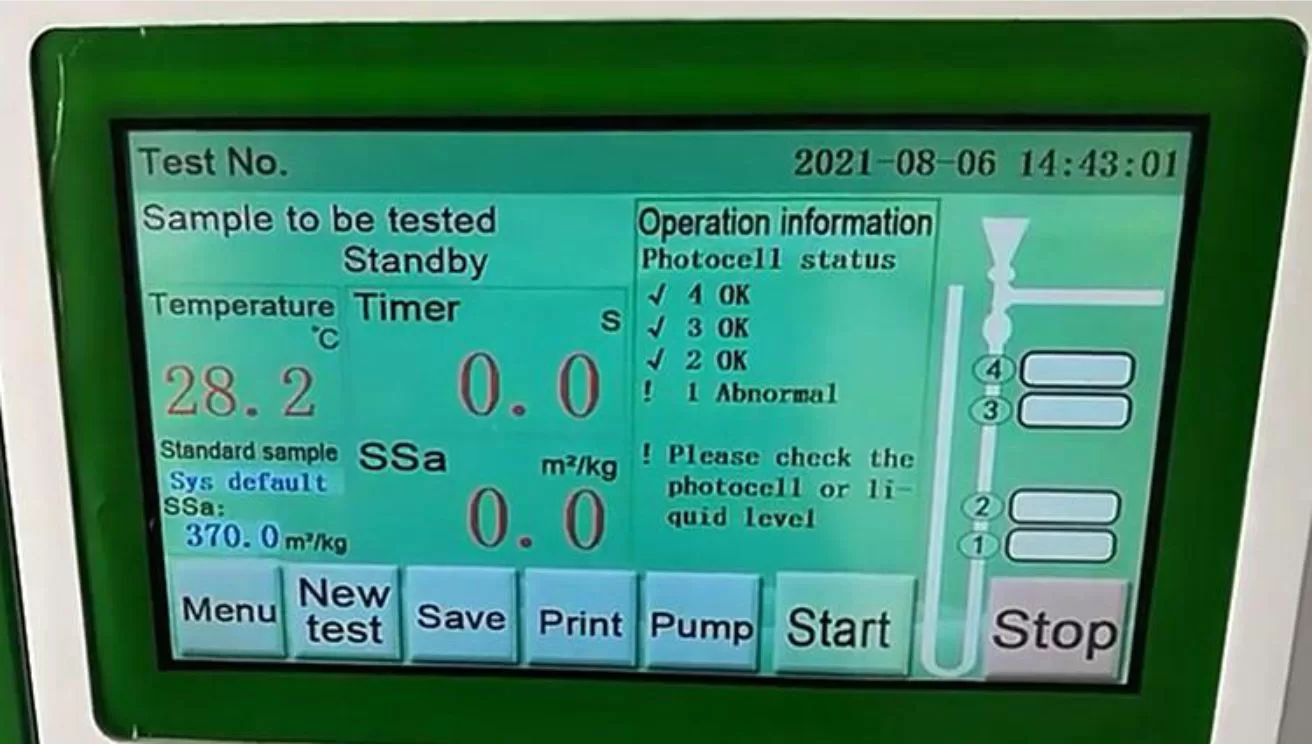

3. 800*480mm color touch screen display.

4. The data export function is available.

5. The test data is printed in real time, and the historical data is printed again


Related Searches

SPECIFICATIONS

Parameters:

Item Mark
Warranty 1 year
Brand Name VERTEX
Product name Blaine air permeability apparatus
technical standard ASTM204
Power supply 220V ± 10%
Timing range 0.1 s < T < 500 s
Timing accuracy < 0.1 second
Measurement accuracy ≤ 1%
Hole number of perforated plate: 35 (hole)
Diameter of the inner cavity of the breathable cylinder: Ф 12.7 mm
Height of test material in the inner cavity of the breathable cylinder: 15 mm

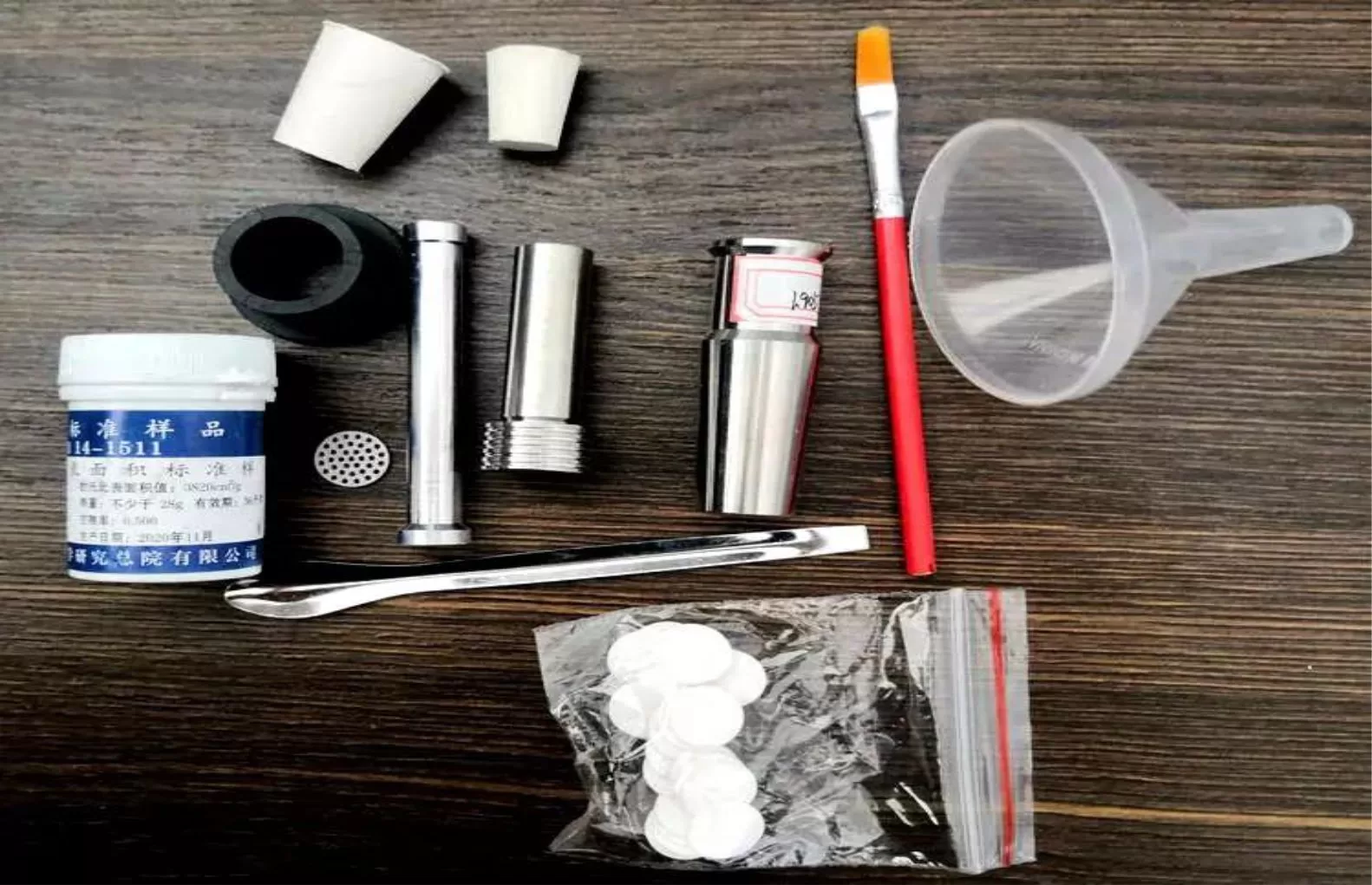

Packing List:

Parts Description QTY
body 1unit
Standard Reference Cement to Calibrate the Blaine 1bottle, 28g
Manometer U-Tube made of Glass 2PCS
Cell with Perforated Disc 1set
12.7mm round filter paper 100PCS
Brush 1PC
Spoon 1PC
Plastic funnel 1PC
Plug 2PC
Power line 1PC



FEATURES

Electronic Blaine air permeability apparatus with semi-automatic test-cycle, electric suction pump, time registration and measuring section with photoelectric barrier. After the test, automatic display of the time measured. Precision of time displayed: 0.01 second. The apparatus is delivered complete with filter papers (1000 pcs.), oil, light grease, plug, thermometer, brush and funnel.

Power supply: 110-230V 50-60Hz
Dimensions: 170x300x410 mm
Weight: 100 kg APPROX
