An Automatic Digital Bitumen Penetrometer is a specialized laboratory instrument used in the field of civil engineering and road construction to determine the consistency and penetration resistance of bituminous materials, such as asphalt or bitumen. It plays a crucial role in assessing the quality and performance of these materials, which are widely used in the construction and maintenance of roads, highways, and other pavement structures.

Standard

IS 1448 (part 60), IS 1203, ASTM D5, EN 1426, AASHTO T49

Model

VSLIC-B109

Origin

Indian

Make/ OEM

VERTEX

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Introducing the Automatic Digital Bitumen Penetrometer

The Automatic Digital Bitumen Penetrometer is a cutting-edge testing device that has gained widespread recognition in the construction and civil engineering sectors. Developed with precision engineering, it offers unmatched accuracy and efficiency in evaluating the penetration characteristics of bituminous materials.

The Automatic Digital Bitumen Penetrometer: Revolutionizing Asphalt Testing

In the world of civil engineering and construction, the quality and durability of asphalt are of paramount importance. Roads, highways, airport runways, and even parking lots rely on this versatile material to withstand the test of time and heavy traffic. To ensure the longevity of asphalt structures, precise testing and analysis are essential. That’s where the Automatic Digital Bitumen Penetrometer comes into play, revolutionizing the way asphalt is evaluated for its performance and reliability.

Understanding the Significance of Asphalt Quality

Before delving into the intricacies of the Automatic Digital Bitumen Penetrometer, it’s crucial to comprehend why assessing asphalt quality is indispensable in the construction industry. Asphalt serves as the backbone of our transportation infrastructure, supporting the movement of vehicles and ensuring safe travel for everyone. Poorly constructed asphalt roads not only lead to inconvenience but also pose safety risks.

The quality of asphalt primarily depends on its resistance to deformation under various environmental conditions and traffic loads. Engineers and construction professionals need accurate data to make informed decisions about the type of asphalt mix, its thickness, and other vital parameters. This is where asphalt testing instruments like the Automatic Digital Bitumen Penetrometer play a pivotal role.

Frequently Asked Questions (FAQ) – Automatic Digital Bitumen Penetrometer

In this FAQ, we address common questions regarding the Automatic Digital Bitumen Penetrometer to assist users in understanding its features, benefits, and operation.

Q1: What is the Automatic Digital Bitumen Penetrometer used for?

The Automatic Digital Bitumen Penetrometer is used for measuring the penetration characteristics of bituminous materials. It helps assess the consistency and hardness of bitumen, which is crucial for evaluating its performance in construction applications, such as road and runway pavement.

Q2: How does the penetrometer work?

The penetrometer operates by lowering a penetration needle onto the surface of a bituminous specimen. It measures the depth to which the needle penetrates the material under specific conditions, providing data on the material’s hardness and consistency.

Q3: What are the key features of the Automatic Digital Bitumen Penetrometer?

Some key features of this instrument include:

  • Precision measurement capabilities for accurate results.
  • User-friendly digital interface for easy operation.
  • Versatility in accommodating various penetration needle sizes.
  • Data storage and analysis capabilities for efficient record-keeping and analysis.

Q4: Why is accurate bitumen penetration measurement important?

Accurate bitumen penetration measurements are vital because they provide insights into the material’s quality and suitability for construction projects. This data helps engineers make informed decisions, ensuring the durability and safety of infrastructure.

Q5: Can the Automatic Digital Bitumen Penetrometer be used for different types of bituminous materials?

Yes, this penetrometer is versatile and can be used to test a wide range of bituminous materials, making it suitable for various construction applications.

Q6: Is calibration required before conducting tests?

Yes, it is essential to calibrate the penetrometer to ensure accurate results. Calibration is typically done by setting the instrument to zero before each test, using the “Zero” button.

Q7: What safety precautions should be taken when using the penetrometer?

Safety precautions include wearing appropriate personal protective equipment, ensuring a stable and level surface for the instrument, and keeping hands and clothing away from moving parts. Always disconnect the power source when not in use.

Q8: How can I troubleshoot common issues with the Automatic Digital Bitumen Penetrometer?

For troubleshooting guidance, refer to the manufacturer’s manual provided with the instrument. Attempting to repair or modify the penetrometer without proper authorization is not recommended.

Q9: Where can I find technical specifications for the penetrometer?

Detailed technical specifications, including power requirements, dimensions, and performance parameters, can be found in the manufacturer’s documentation that accompanies the Automatic Digital Bitumen Penetrometer.

Q10: What is the warranty coverage for the penetrometer?

Warranty terms and conditions for the Automatic Digital Bitumen Penetrometer are outlined in the manufacturer’s warranty documentation. Be sure to review and retain this information for warranty-related inquiries.

These frequently asked questions provide valuable information about the Automatic Digital Bitumen Penetrometer, its purpose, operation, and maintenance. If you have any additional queries or require further assistance, please refer to the manufacturer’s manual or contact the manufacturer’s customer support.



SPECIFICATIONS

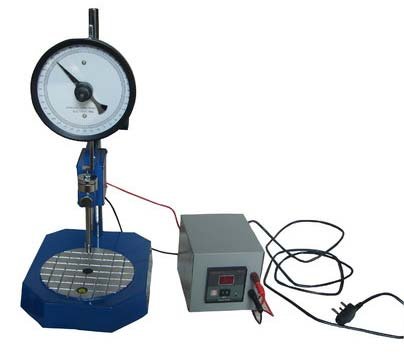

Standard Penetrometer (with automatic time controller):

  1. Base with leveling screws with a vertical pillar mounted on it
  2. Head having a dial graduated in 40 x 0.1 mm divisions, plunger rod and needle sliding on the pillar,
  3. Clamp on the pillar to tighten the needle
  4. Rack, pinion and pointer assembly
  5. Micrometer differential gearing system: Mechanism for fine movement for head
  6. Automatic time controller the timer head allow the plunger rod to fall freely for 5 seconds and clamps it automatically after 5 seconds.
  7. 220V, 50Hz, single phase supply

Accessories:

  1. Container : flat bottomed cylindrical metallic dish, 55 mm in diameter and 35 mm in depth.
  2. Transfer dish or tray
  3. Digital Automatic Timer

Optional Accessories at Extra cost

  1. Low Temp. waterbath to maintain 25 deg C
  2. Digital readout of Penetration Value (In stead of Analog Dial Gauge)
  3. Penetration cup 55 mm dia X 70 mm depth
  4. Penetration cup 70 mm dia X 45 mm depth
  5. Thermometer ASTM 17C (+19 to 27 °C)

FEATURES

Key features of an Automatic Digital Bitumen Penetrometer include:

  1. Digital Control and Display: It is equipped with a digital control panel and display screen, allowing for precise and easy operation. This digital interface makes it user-friendly and enables accurate readings.
  2. Automatic Penetration Measurement: The instrument automates the penetration test process, eliminating the need for manual measurements. This automation ensures consistent and repeatable results.
  3. Penetration Needle: The penetrometer features a specially designed needle, usually made of stainless steel, which is carefully lowered onto the bituminous sample under controlled conditions. The penetration depth is measured in tenths of a millimeter (0.1 mm).
  4. Sample Holder: A sample holder or container securely holds the bituminous material in place during the test. It ensures that the material is evenly distributed and stabilized for accurate penetration measurements.
  5. Temperature Control: Temperature plays a significant role in the properties of bitumen. Some Automatic Digital Bitumen Penetrometers are equipped with temperature control mechanisms to perform tests at specific temperatures, simulating real-world conditions.
  6. Data Recording and Storage: The instrument records and stores test data, including penetration values, time, and temperature (if applicable). This data can be retrieved and analyzed for quality control and research purposes.
  7. Compliance with Standards: Automatic Digital Bitumen Penetrometers are designed to meet industry standards and regulations, such as ASTM (American Society for Testing and Materials) or AASHTO (American Association of State Highway and Transportation Officials) standards, ensuring the reliability and accuracy of test results.

The primary purpose of using an Automatic Digital Bitumen Penetrometer is to assess the consistency of bituminous materials at different temperatures and determine their suitability for various construction applications. This information is essential for engineers and quality control personnel to make informed decisions about the selection and use of bitumen in road construction projects, ensuring the safety and longevity of the resulting infrastructure.

Benefits of Using the Automatic Digital Bitumen Penetrometer

1. Improved Quality Control

By using this advanced testing instrument, construction professionals can enhance the quality control processes associated with asphalt production and placement. It ensures that the asphalt meets the required specifications, resulting in durable and long-lasting infrastructure.

2. Cost Savings

Identifying potential issues with asphalt quality early in the construction process can lead to substantial cost savings. The Automatic Digital Bitumen Penetrometer helps in detecting problems before they escalate, minimizing the need for costly repairs or replacements down the road.

3. Enhanced Safety

Safe roads and runways are a top priority. The penetrometer’s ability to assess the hardness of asphalt ensures that it can withstand heavy traffic and adverse weather conditions, contributing to safer transportation systems.

The Future of Asphalt Testing

As technology continues to advance, so does the field of asphalt testing. The Automatic Digital Bitumen Penetrometer is a testament to the ongoing efforts to improve the quality and performance of asphalt in construction. With its precision, ease of use, and data-driven approach, it has quickly become an indispensable tool for engineers and construction experts worldwide.

In conclusion, the Automatic Digital Bitumen Penetrometer is not just a device; it’s a game-changer in the construction industry. Its ability to provide accurate data, enhance quality control, save costs, and promote safety sets it apart as an invaluable asset. As we look to the future of infrastructure development, this advanced penetrometer will continue to play a pivotal role in ensuring the durability and reliability of asphalt structures.

PRODUCT VIDEO

WORKING PRINCIPALNew

Operating Manual for the Automatic Digital Bitumen Penetrometer

Table of Contents

  1. Introduction
  2. Safety Precautions
  3. Installation
  4. Operating Procedure
  5. Maintenance
  6. Troubleshooting
  7. Technical Specifications
  8. Warranty Information

1. Introduction

The Automatic Digital Bitumen Penetrometer is an advanced testing instrument designed for accurately measuring the penetration characteristics of bituminous materials. This operating manual will guide you through the setup, operation, and maintenance of the penetrometer to ensure precise and reliable test results.

2. Safety Precautions

Before operating the Automatic Digital Bitumen Penetrometer, please adhere to the following safety precautions:

  • Ensure that the instrument is placed on a stable and level surface.
  • Do not operate the penetrometer in a hazardous environment.
  • Keep hands and clothing away from moving parts during testing.
  • Always wear appropriate personal protective equipment, including gloves and safety glasses.
  • Disconnect the power source when not in use.

3. Installation

Follow these steps for the proper installation of the penetrometer:

  1. Place the Automatic Digital Bitumen Penetrometer on a clean and level surface.
  2. Connect the power cord to a suitable power source.
  3. Ensure that the instrument is properly grounded to prevent electrical hazards.
  4. Check that all components and accessories are securely attached.

4. Operating Procedure

To perform penetration tests using the Automatic Digital Bitumen Penetrometer, follow these steps:

  1. Power On:
    • Turn on the penetrometer using the power switch.
    • Wait for the device to initialize.
  2. Sample Preparation:
    • Prepare the bituminous material specimen according to industry standards.
    • Ensure that the specimen is at the required temperature for testing.
  3. Needle Selection:
    • Choose an appropriate penetration needle size based on the material being tested.
    • Carefully attach the selected needle to the penetrometer’s arm.
  4. Zero Calibration:
    • Place the prepared specimen under the penetration needle.
    • Set the penetrometer to zero by pressing the “Zero” button.
    • The instrument will calibrate to the starting point.
  5. Testing:
    • Lower the penetration needle gently onto the specimen’s surface.
    • Initiate the test using the “Start” button.
    • The penetrometer will automatically record the penetration distance and display the results on the digital screen.
  6. Data Retrieval:
    • Retrieve and record the test results, including penetration depth and any additional data displayed on the screen.
    • Store the data for further analysis.
  7. Power Off:
    • Turn off the penetrometer using the power switch after completing the tests.
    • Disconnect the power cord from the power source.

5. Maintenance

Proper maintenance is essential to ensure the longevity and accuracy of the Automatic Digital Bitumen Penetrometer:

  • Regularly clean the instrument’s components and accessories.
  • Lubricate moving parts as per the manufacturer’s recommendations.
  • Keep the instrument’s display and controls free from dirt and moisture.
  • Store the penetrometer in a dry and cool environment when not in use.

6. Troubleshooting

If you encounter any issues with the penetrometer, please consult the troubleshooting section of the manufacturer’s manual provided with the instrument. Do not attempt to repair or modify the penetrometer without proper authorization.

7. Technical Specifications

For detailed technical specifications, including power requirements, dimensions, and performance parameters, refer to the manufacturer’s documentation that accompanies the Automatic Digital Bitumen Penetrometer.

8. Warranty Information

The warranty terms and conditions for the Automatic Digital Bitumen Penetrometer are provided in the manufacturer’s warranty documentation. Please retain and review this information for warranty-related inquiries.


This operating manual provides a comprehensive guide to the installation, operation, and maintenance of the Automatic Digital Bitumen Penetrometer. Adhering to safety precautions and proper procedures will ensure accurate and reliable test results for assessing bituminous materials in various construction applications.
