Demountable Mechanical Strain Gauge VSLIC-C245

short info

De-Mountable Strain Gauge These are designed for gauge lengths of 100, 150 or 200mm the reference pins. Supplied complete with vertex 180 dial gauge 0.002 X 5mm or Vertex VSLIC-C245 dial gauge digital 0.001 X 25mm. complete in a case.

Model

VSLIC-C245

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

20 cm Gauge Length.

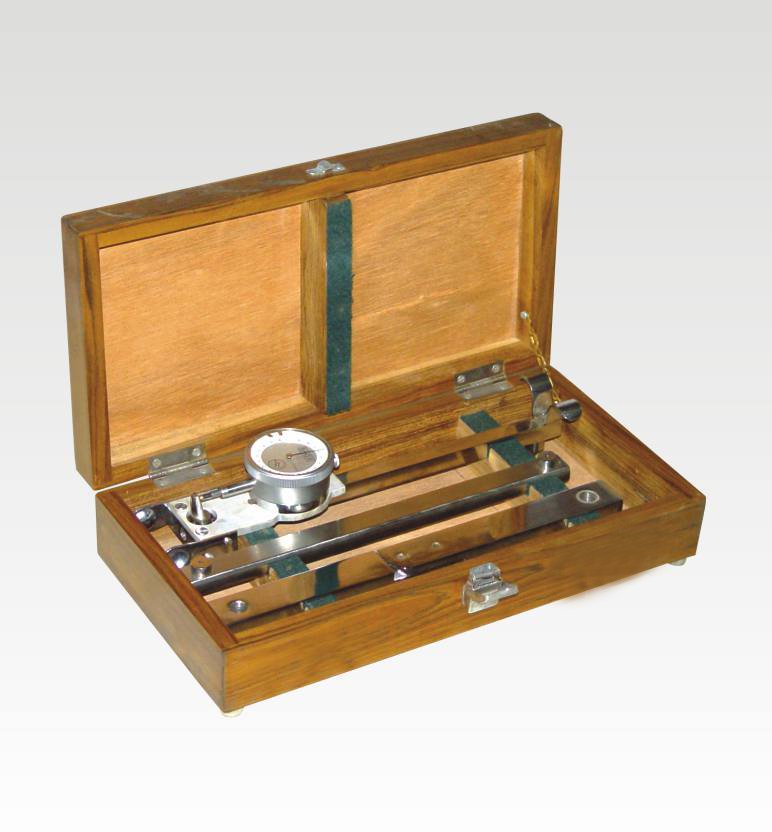

Useful for shrinkage estimation of concrete blocks during hardening, strain measurement in structural members under load, measuring opening and closing of cracks in structures, measuring relative displacement of structures and for monitoring insitu behavior of rock strata in excavated cavities. The instrument consists of a frame with a handle at one end and a dial gauge of 0.002 mm x 5 mm fitted at other end. The frame carries a fixed conical reference point on the handle side and a moving conical point on the dial gauge side.

The plunger of the dial gauge rests against this moving point. It is supplied complete in a wooden case with one standard stainless-steel reference bar and one stainless steel gauge length bar.


Related Searches

SPECIFICATIONS

Order information

  • VSLIC-C24501        Demountable Mechanical Strain Gauge, 100mm, Analogue.
  • VSLIC-C24502        Demountable Mechanical Strain Gauge, 100mm, Digital.
  • VSLIC-C24503        Demountable Mechanical Strain Gauge, 150mm, Analogue.
  • VSLIC-C24504        Demountable Mechanical Strain Gauge, 150mm, Digital.
  • VSLIC-C24505        Demountable Mechanical Strain Gauge, 200mm, Analogue.
  • VSLIC-C24506        Demountable Mechanical Strain Gauge, 200mm, Digital.

FEATURES

20 cm Gauge Length.

Useful for shrinkage estimation of concrete blocks during hardening, strain measurement in structural members under load, measuring opening and closing of cracks in structures, measuring relative displacement of structures and for monitoring insitu behavior of rock strata in excavated cavities. The instrument consists of a frame with a handle at one end and a dial gauge of 0.002 mm x 5 mm fitted at other end. The frame carries a fixed conical reference point on the handle side and a moving conical point on the dial gauge side.

The plunger of the dial gauge rests against this moving point. It is supplied complete in a wooden case with one standard stainless-steel reference bar and one stainless steel gauge length bar.

PRODUCT VIDEO

WORKING PRINCIPALNew
