quick info

Core Cutter of known volume is driven into the soil by a rammer. The core cutter is dug out, trimmed and the soil inside weighed and dried for moisture and density check.

Ref. Standard

IS 2720 (Part XXIX) 1966 & BS 1377-9

Country Origin

Indian

Model

VSLIC-S126

Share Us

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

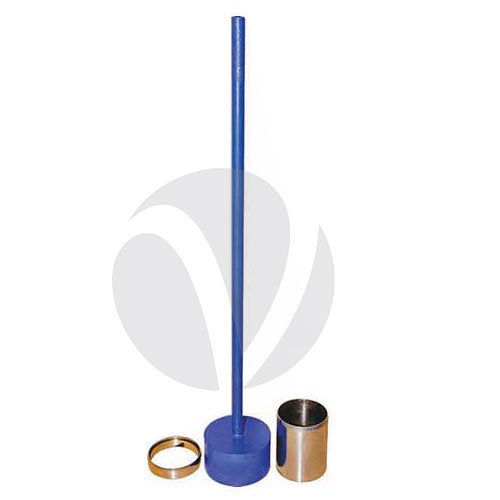

This is used for the determination of in situ dry density of natural or compacted fine-grained soil, free from aggregates. A cylindrical cutter is used to extract a sample of the soil with the help of a dolly and rammer. From the weight, density and the moisture, and dry density of the soil is readily calculated.

SPECIFICATIONS

It consists of one each of the Cylindrical core cutter made of steel. 127.3 mm long and 100mm internal diameter.

  • Spare, an optional extra, and accessories:
  • Cylindrical core cutter 100 mm I.D.
  • Cylindrical core cutter 100 mm I.D.
  • Cylindrical core cutter 100 mm I.D.
  • Dolley.
  • Test form pad of 50.

FEATURES

  • Cylindrical core cutter.
  • Steel Dolley.
  • Steel rammer.
  • Balance, with an accuracy of 1g.

PRODUCT VIDEO

DIMENSION

Length (Inch)Width (Inch)Height (Inch)
