Electrical Core Cutting Drilling Machine upto 300mm Dia VSLIC-R103

short info

Electrical Core Cutting Drilling Machine 4000W can be used for drilling large openings, and for creating ducts or small holes in pipes. It can also be used for wiring, anchoring, placing bolts, or analyzing concrete samples.

Standard

As per IS & ASTM Standards

Model

VSLIC-R103

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

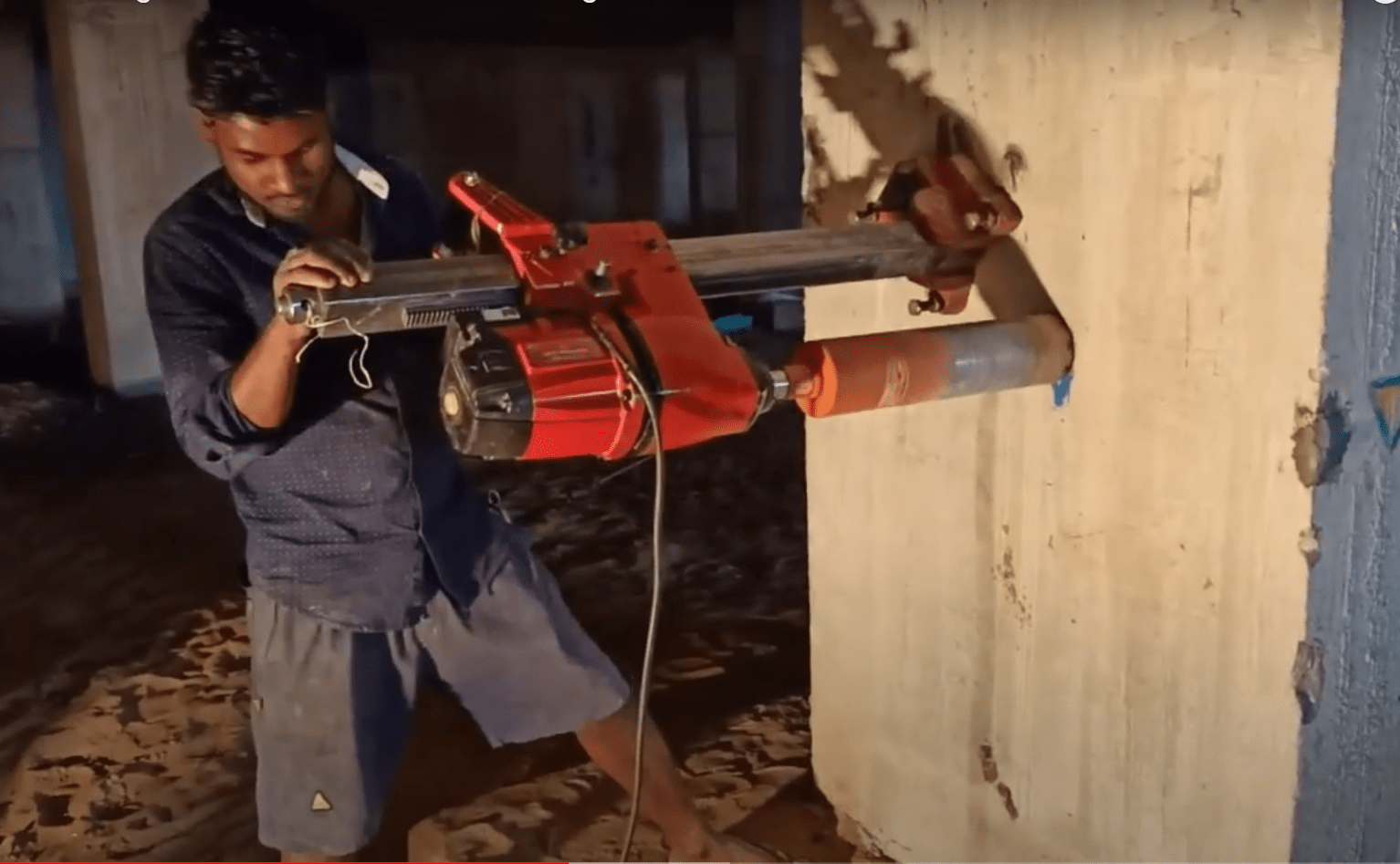

Compact and mobile, Electrical Core Cutting Drilling Machine upto 300mm Dia machine drills through hard rock, concrete, bitumen, tiles, marbles etc. and takes out cores for the preparation of laboratory samples.

Drive is through a powerful multi speed motor.

It can easily cut cores upto 300 mm dia.

The total assembly move on a pillar to adjust the tip height of the bit.

Pillar is fixed on to a base with two wheels for site shifting.

Geared motor moves on a slide and the slide can be rotated through 360o. Travel of the geared motor is approximately 600 mm and the cores of 400-500 mm can be easily taken out in single operation

Power of the Motor : 4000 Watts

RPM: 1440rpm/min

Cutting Depth: 350.00 – 500mm

Color: Red

Features: Safety MC

Power Supply : 220 Volts, 50 Hz AC.

Continuous Running time without damage to bits & barrels : 30 minutes


Related Searches

SPECIFICATIONS

Compact and mobile, Electrical Core Cutting Drilling Machine upto 300mm Dia machine drills through hard rock, concrete, bitumen, tiles, marbles etc. and takes out cores for the preparation of laboratory samples.

Drive is through a powerful multi speed motor.

It can easily cut cores upto 300 mm dia.

The total assembly move on a pillar to adjust the tip height of the bit.

Pillar is fixed on to a base with two wheels for site shifting.

Geared motor moves on a slide and the slide can be rotated through 360o. Travel of the geared motor is approximately 600 mm and the cores of 400-500 mm can be easily taken out in single operation

Power of the Motor : 4000 Watts

RPM: 1440rpm/min

Cutting Depth: 350.00 – 500mm

Color: Red

Features: Safety MC

Power Supply : 220 Volts, 50 Hz AC.

Continuous Running time without damage to bits & barrels : 30 minutes

FEATURES

Product Features

  • Heavy-duty, pillar type frame with 4200W.
  • Varying cutting feeds provided with a winter-fed swivel head which can be connected to the suitable water supply.
  • The provision at the base for water collection/drainage.
  • Core preparation from regular and irregular samples and core size: EX to 100mm.
  • Clamping arrangement to hold specimens with regular/irregular shapes to the base of machines

PRODUCT VIDEO

WORKING PRINCIPALNew
