quick info

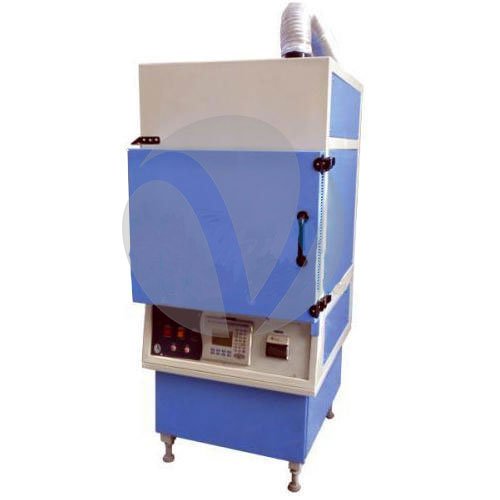

The Content Tester is used to determine the asphalt content of hot mix asphalt (HMA), paving mixtures and pavement samples by removing the asphalt in an ignition furnace by means of sample heating, not by means of solvents.

Ref. Standard

ASTM : 06307

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-B136

Share Us

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

Developed by National Center for Asphalt Technology (NCAT) the USA as an alternative to the then existing methods such as solvent extraction and Nuclear methods. In 1996 use of solvent extraction was banned in the United States of America. Solvent extraction method uses solvents that are carcinogenic, hazardous to human beings and environment.4000g sample capacity, integrated +0.1gm accuracy weighing scale, High-temperature ceramic filtration system, and afterburner for accurate measurement of bitumen content in asphalt mixes.

SPECIFICATIONS

Automatic operation through user-defined automatic endpoint detection and 24-hour start timer. User-defined control of furnace chamber temperature from 200 – 650oC, Digital display, and printing of test data through bright LED displays and integrated printer, Software activated mechanical door lock to prevent the door from opening during the test process and cutting off power from the heating elements upon opening the door. Operates on Single Phase, 220V, 50 Hz, 20 Amp and consumes less than 5000 W.

FEATURES

  • Working temperature: 538 +- 2 degrees Celsius.
  • Combustion temperature: 800-degree Celsius.
  • Weight of the sample: 4500 g.
  • Recommended weight of sample: 1500g.
  • Accuracy of electronic balance: 0.1g x 10kg.
  • Timer for test result: 30 to 45 min.
  • Endpoint sensitively: 0.01% for 3 consecutive minutes.
  • Data output: Through USB.
  • Chamber size : 400mm x 380mm x 380mm.
  • Power rating: 5kW.

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
