short info

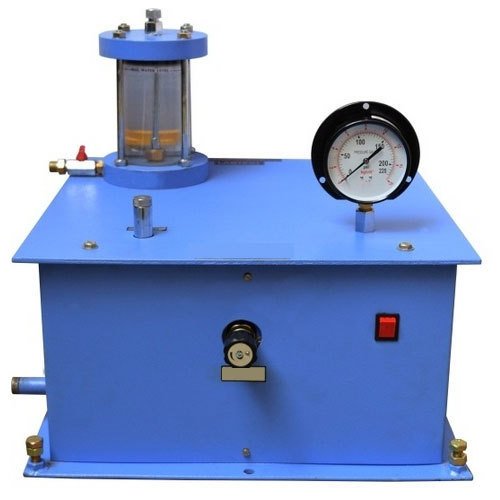

A constant pressure system in triaxial testing is a crucial component designed to apply and maintain constant pressure to the specimen, typically confining pressure (cell pressure) or back pressure, during the test. As per IS:2720(Part-11)

Standard

As Per Standard

Model

VSLIC-S127

Origin

Indian

Make/ OEM

VERTEX

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Product Overview:

The system is used to control and maintain a precise confining pressure on the sample within the triaxial cell. This is essential for simulating the stress conditions the soil or rock would experience in situ. The confining pressure is applied equally in all directions to the specimen, while the axial stress is independently applied.

  • Range 0-20 bar (20 kg/Cm²), steps of pressure 0.5 bar (0.5 Kg/Cm²), Accuracy + 0.5%, Supplied complete with pressure gauge, flow valves and connecting pressure hose.
  • The unit provides continuous variable pressure up to 0-20 kg/Cm².
  • Pressure is increased or decreased simply by turning a control knob.
  • Electric Supply 230 Volt, Single phase, 50 Hz, A.C Supply.



SPECIFICATIONS

Technical Specifications:

Range 0-20 bar (0-20 Kg/Cm²)
Steps of pressure 0.5 bar (0.5 Kg/Cm²)
Accuracy ± 0.5%
Power Supply 230 Volt, Single phase, 50 Hz, A.C Supply.
Overall Dimensions 690 X 390 X 690 (L X W X D) mm
Weight (Approx) 50 kg

FEATURES

Technical Specifications:

Range 0-20 bar (0-20 Kg/Cm²)
Steps of pressure 0.5 bar (0.5 Kg/Cm²)
Accuracy ± 0.5%
Power Supply 230 Volt, Single phase, 50 Hz, A.C Supply.
Overall Dimensions 690 X 390 X 690 (L X W X D) mm
Weight (Approx) 50 kg
