Product Overview:

The standard outfit comprises of a fixed ring type of consolidometer cell for a testing specimen of 60 mm dia X 20 mm thick, but the unit is so designed that specimen of varying sizes from 50 mm dia to 100 mm dia can also be tested.

Standard

ASTM D2435, D3877, D4546, BS 1377: 5

Model

VSLIC-S122

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Product Overview:

The one-way Consolidation Test of the soil sample allows to determine the settlement characteristic over a certain period of time. The loads are applied in incremental increments and the slump values ​​are read at the dial gauge hours. The tests are carried out on samples prepared from intact samples. The data obtained from these tests, together with the classification data and ground loading history information, make predictions about the behavior of the foundations under load.

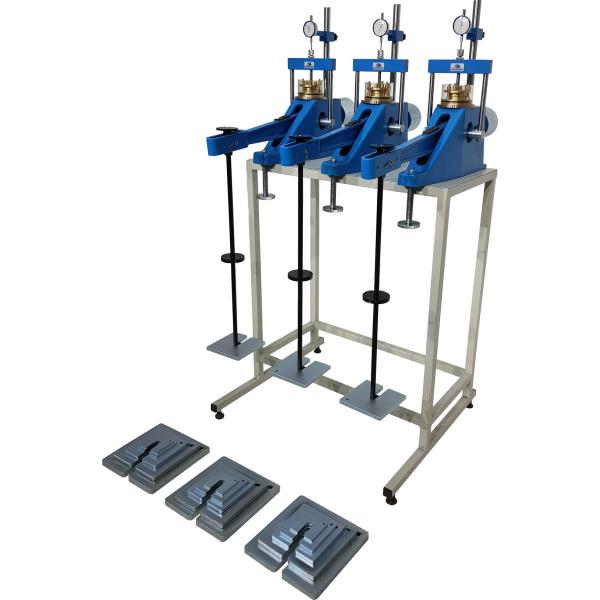

This unit have 3 loading machines instead of one.

The unit comprises:

  • Loading Unit 20 kg/cm² capacity – 3 No.
  • Consolidation cell 60mm x 20mm height – 3 No.
  • Dial gauge 5 x 0.002mm – 3 No.
  • Set of Weights (Stress – up to 10kg/cm²) – 3 Sets


Related Searches

SPECIFICATIONS

Consolidation Test Apparatus-Three Gang:

The one-way Consolidation Test of the soil sample allows us to determine the settlement characteristic over a certain period of time. The loads are applied in incremental increments and the slump values ​​are read at the dial gauge hours.

The tests are carried out on samples prepared from intact samples. The data obtained from these tests, together with the classification data and ground loading history information, make predictions about the behavior of the foundations under load.

It is supplied with a High-Pressure Consolidation Test Set, Loading Frame, Consolidation Table with 3 oedometer carrying capacity, Ø 50 mm Consolidation Cell Set, 10×0.01 mm Comparator Clock, and 64 kg Weight Set.

It is supplied with ASTM Consolidation Test Set, Loading Frame, Consolidation Table with 3 oedometer carrying capacity, Ø 63.5 mm Consolidation Cell Set, 10×0.01 mm Comparator Clock, and 64 kg Weight Set.

IS / BS  Consolidation Test Set is supplied with Loading Frame, Consolidation Table with 3 oedometer carrying capacity, Ø 75 mm Consolidation Cell Set, 10×0.01 mm Comparator Clock, and 80 kg Weight Set.

FEATURES

Other accessories are optional:

  • The Loading Frame is made of cast aluminum alloy and provides a high degree of precision even under load. The frame is designed to load a lever arm assembly and one of three alternative loading ratios as 9: 1, 10: 1 and 11: 1. The lever is equipped with a counterweight and lever support. The cell platform is able to receive the consolidation cells and is equipped with a centering bed to ensure that the cell is properly centered under load.
  • Consolidation Cells are made of corrosion-resistant material and in accordance with the requirements of the relevant standards. All Cells are given with Lower and Upper Porous Stones, Pressure Pad, and Cutting (Sample) Ring. Any Cell Set listed below can be selected.
  • It can be used with any kind of Comparator Clock and Weight Sets listed below.
  • Apparatus for preparing the Consolidation Sample and Calibration Disc must be ordered separately.
