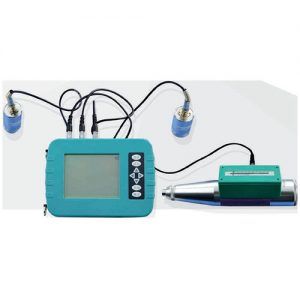

Concrete Ultrasonic Rebound Apparatus

quick info

Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects

Ref. Standard

As Per IS Standard

Country Origin

Indian

Model

GTJ-U200

Share Us

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.

get a quote

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.

Product Features:

  • Upgraded wireless cloud transmission function.
  • Adopt three anti-shell design, waterproof, dust-proof and shock-proof.
  • Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
  • High quality: using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site.
  • Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing.
  • Powerful: The instrument can store 4000 sets of data, and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.

SPECIFICATIONS

Technical Specifications:

Host parameter Waterproof level：IP65 Screen size 5inches

Volume：195X140X45mm Weight：0.85kg
Ultrasonic indication error ±0.1μs
Ultrasonic transducer operating frequency 50KHz
Instrument ultrasonic frequency range 5Hz~500KHz
Data transmission mode Wireless cloud transmission (optional)
Spring back apparatus nominal kinetic energy 2.207J
Stiffness of Spring Strike 785.0±40.0(N/m)
Impact length of ram 75.0±0.3 mm
Rebound value indication error ≤±0.5
Rebound value average steel anvil rate 80±2
Power supply mode Large capacity lithium battery, power supply time is more than 8 hours
Working environment -10℃~40℃
Packing specification Material: engineering plastic              Volume: 420 × 140 × 335mm Weight 5.5kg

FEATURES

  • Upgraded wireless cloud transmission function.
  • Adopt three anti-shell design, waterproof, dust-proof and shock-proof.
  • Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
  • High quality: using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site.
  • Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing.
  • Powerful: The instrument can store 4000 sets of data, and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
