Concrete (Pad Caps And Retainer Rings) VSLIC-C237

short info

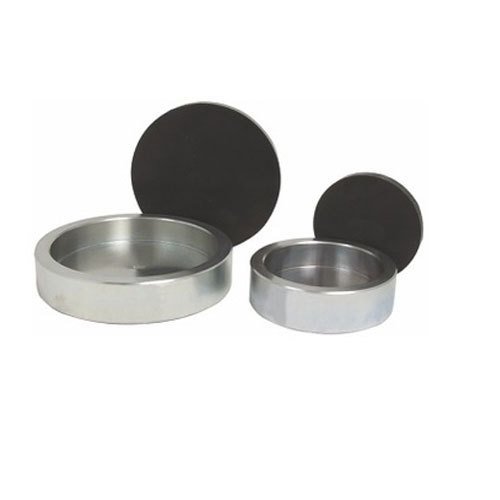

Our pad-cap retainer rings hold neoprene pads that fit into the ends of concrete test cylinders. Made from plated high-alloy steel to resist rust and deformation fatigue. Bearing surfaces machine-planed to within 0.002″. Supplied two per set.



Standard

ASTM C-1231 , AASHTO T-22

Model

VSLIC-C237

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

These neoprene pad inserts are made from a tough elastomeric material that evens out and fills irregularities in the ends of concrete cylinders to assure even distribution of test loads for consistent results.


Related Searches

SPECIFICATIONS

Requirements for use of neoprene pads

Compressive Strength, psi

  • Less than 1,500, Not permitted
  • 1,500 to 6,000, 50 durometer
  • 2,500 to 7,000, 60 durometer
  • 4,000 to 7,000, 70 durometer
  • 7,000 to 12,000, 70 durometer with qualification testing
    Greater than 12 000, Not permitted

FEATURES

PRODUCT VIDEO

WORKING PRINCIPALNew
