quick info

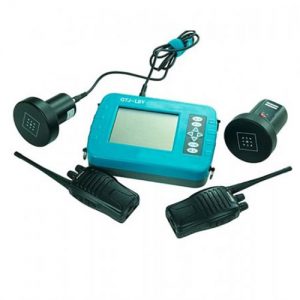

Concrete Thickness Detector is a portable non-destructive testing instrument for measuring the thickness of concrete or other non-ferromagnetic media. When used, the transmitter and receiver probes are placed on the two relative test surfaces of the Concrete, respectively, transmitting and receiving electromagnetic fields.

Ref. Standard

As Per IS Standard

Country Origin

Indian

Make / OEM

VERTEX

Model

GTJ-LBY

Share Us

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

Concrete Thickness Detector is a portable non-destructive testing instrument for measuring the thickness of concrete or other non-ferromagnetic media. When used, the transmitter and receiver probes are placed on the two relative test surfaces of the Concrete, respectively, transmitting and receiving electromagnetic fields. The instrument transmits and receives electromagnetic fields according to the received signals. Strength, test Concrete thickness.

Product Features:

  • Upgraded wireless cloud transmission function.
  • Adopt three anti-shell design, waterproof, dust-proof and shock-proof.
  • Separate design of probe and main engine facilitates on-site measurement and use by operators.
  • Store the measurement results of floor thickness according to components.
  • Simple and easy to use, with perfect measurement, storage and analysis functions
  • Stored data is transmitted to computer through USB interface.
  • Use Windows software to analyze data and generate test reports.

SPECIFICATIONS

Host parameters Screen size: 5-inch LCD resolution: 160 *128 volume: 195 *140 *45mm weight: 0.8kg
Host housing Waterproof, dustproof, shockproof
Thickness test range 40~820mm
Test Accuracy 40 ~500mm: ±1mm 501~600mm: ±2mm   601~700mm:±4mm 701 ~800mm: ±8mm
Data storage capacity 200 components or 30,000 measuring points
Data transmission mode Wireless Cloud Transport (Options)
Power supply Both host and transmitter probes are built-in lithium batteries
Working environment requirements Temperature: -10 ~40 C humidity: <90% RH without strong alternating electromagnetic field shall not be exposed to direct sunlight for a long time
Packing specification Material: engineering plastic volume: 420×140×335mm weight: 6.5kg

FEATURES

Product Features:

  • Upgraded wireless cloud transmission function.
  • Adopt three anti-shell design, waterproof, dust-proof and shock-proof.
  • Separate design of probe and main engine facilitates on-site measurement and use by operators.
  • Store the measurement results of floor thickness according to components.
  • Simple and easy to use, with perfect measurement, storage and analysis functions
  • Stored data is transmitted to computer through USB interface.
  • Use Windows software to analyze data and generate test reports.

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
