The Compaction Factor Apparatus is defined as the ratio of the mass of the concrete compacted in the compaction factor apparatus to the mass of the fully compacted concrete.

Standard

IS : 5515-1983

Model

VSLIC-C206

Origin

Indian

Make/ OEM

VERTEX

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Used for determination of compaction factor of fresh concrete with nominal maximum size of aggregate not exceeding 40 mm as a measure of its workability. It is particularly suitable for mix of stiffer consistency.

It comprises the following :

  • Two conical hoppers with trap doors.
  • One cylindrical receiver 0.005 cu. m. volume.
  • A welded steel stand for mounting the hoppers and the receiver co-axially at specified distances.
  • Two trowels.
  • One hand scoop.
  • One standard tamping rod 16 mm dia x 600 mm long.



SPECIFICATIONS

Technical Specification

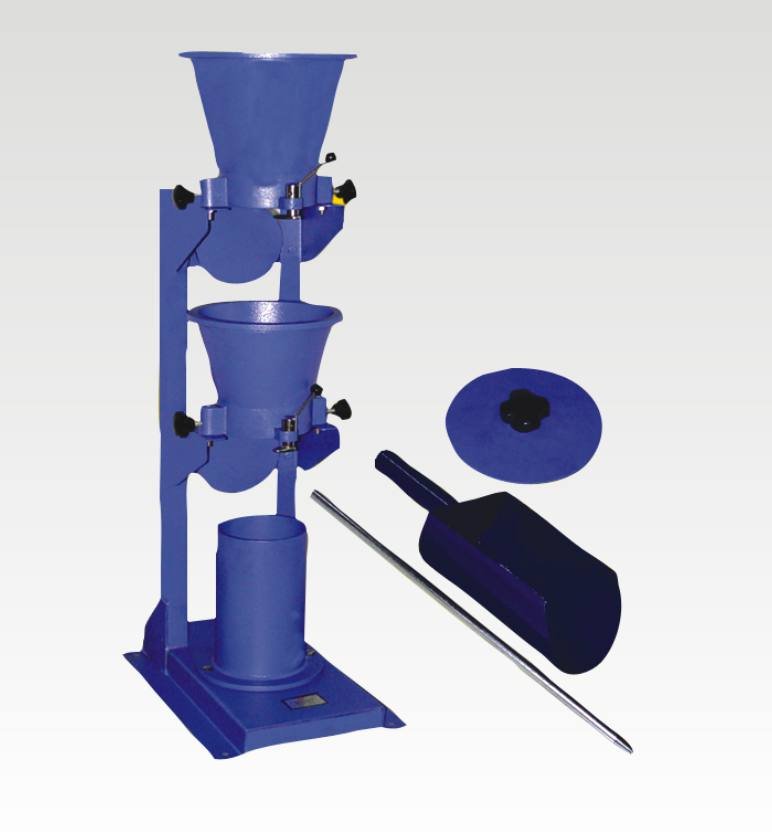

  • The Compaction Factor Apparatus, consisting of a rigid frame that supports two conical hoppers vertically aligned above each other and mounted above a cylinder.
  • The top hopper is slightly larger than the bottom hopper, while the cylinder is smaller in volume than both hoppers.
  • To perform the test, the top hopper is filled with concrete but not compacted.
  • The door on the bottom of the top hopper is opened and the concrete is allowed to drop into the lower hopper.
  • Once all of the concrete has fallen from the top hopper, the door on the lower hopper is opened to allow the concrete to fall to the bottom cylinder.
  • The excess concrete is carefully struck off the top of the cylinder and the mass of the concrete in the cylinder is recorded.
  • This mass is compared to the mass of fully compacted concrete in the same cylinder achieved with hand rodding or vibration.
  • Complete with the trowel and tamping bar 0-60 cms long X 16mm Dia.

FEATURES

Used for determination of compaction factor of fresh concrete with nominal maximum size of aggregate not exceeding 40 mm as a measure of its workability. It is particularly suitable for mix of stiffer consistency.

It comprises the following :

  • Two conical hoppers with trap doors.
  • One cylindrical receiver 0.005 cu. m. volume.
  • A welded steel stand for mounting the hoppers and the receiver co-axially at specified distances.
  • Two trowels.
  • One hand scoop.
  • One standard tamping rod 16 mm dia x 600 mm long.
