A bitumen extractor is a piece of equipment used in the construction industry to determine the proportion of bitumen in bituminous pavement materials. It helps in assessing the quality and composition of asphalt mixes used in roads, highways, and other infrastructure projects.

Standard

ASTM D2172, AASHTO T-58, T-164

Model

VSLIC-B113

Origin

Indian

Make/ OEM

VERTEX

Brochure


  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Construction Details:

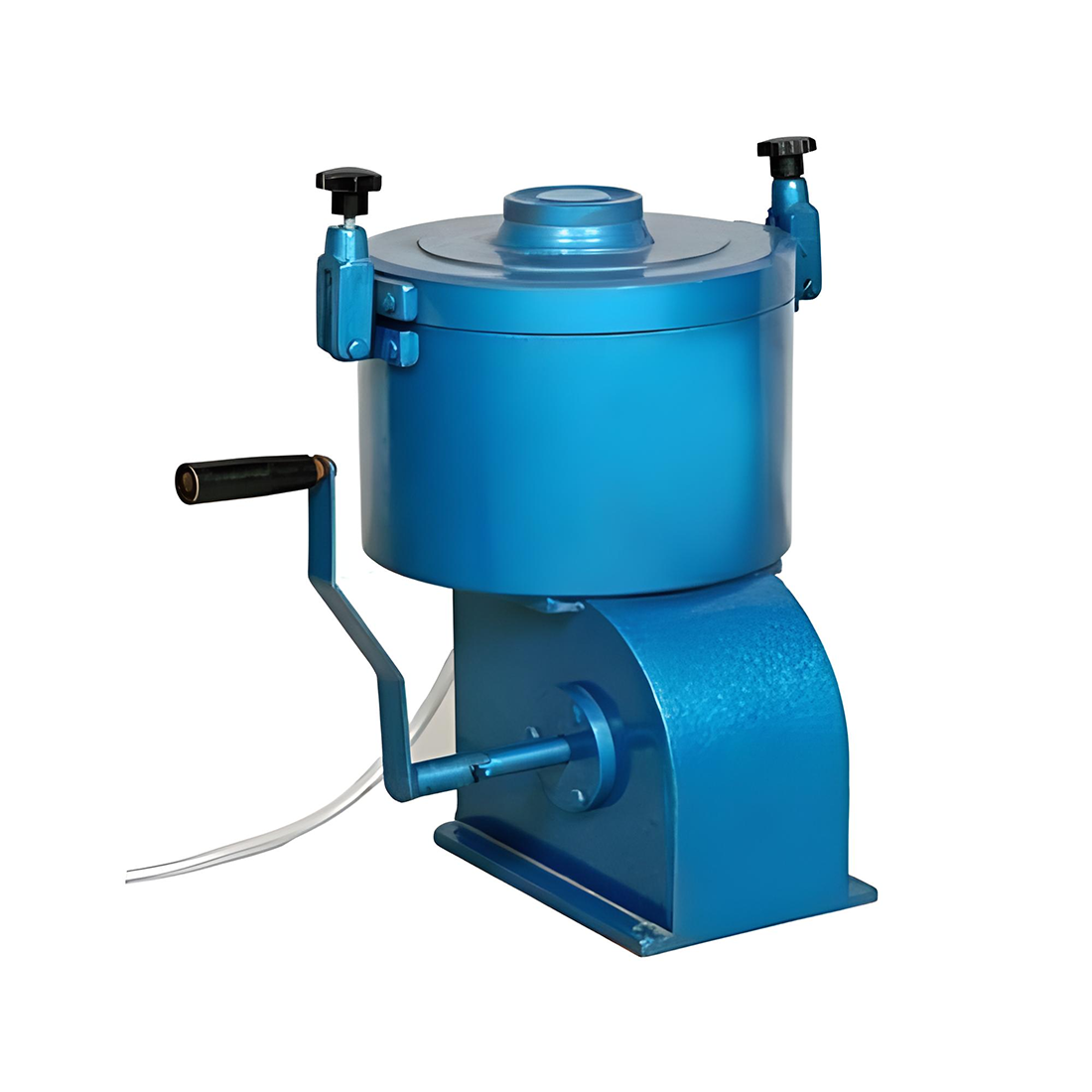

The centrifuge extractor is a safe, portable model of sufficient size for quick and accurate determination of bitumen, corrosion-resistant model which can be used both in the field and the laboratory. It consists of removable cast aluminium rotor bowl mounted on a vertical shaft. A filter paper disc is pressed in between the nut. The bowl assembly is enclosed in a housing mounted on a cast aluminium body. The gears operate in oil bath with splash lubrication.

Weight : 40 kg Approx.

Essential Accessories At Extra Cost:

  1. Filter paper – Box of 100
  2. Electronic Balance ( Capacity : 6000 gms, Accuracy : 0.1 gm)
  3. Benzene or Toluene to be procured locally.

Bitumen Electrical Operated Edition

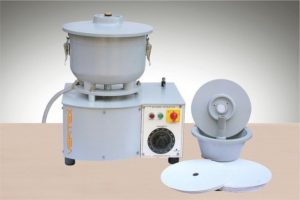

bitumen-extractor-1500gram



SPECIFICATIONS

Construction Details:

The centrifuge extractor is a safe, portable model of sufficient size for quick and accurate determination of bitumen, corrosion-resistant model which can be used both in the field and the laboratory. It consists of removable cast aluminium rotor bowl mounted on a vertical shaft. A filter paper disc is pressed in between the nut. The bowl assembly is enclosed in a housing mounted on a cast aluminium body. The gears operate in oil bath with splash lubrication.

Weight : 40 kg Approx.

Essential Accessories At Extra Cost:

  1. Filter paper – Box of 100
  2. Electronic Balance ( Capacity : 6000 gms, Accuracy : 0.1 gm)
  3. Benzene or Toluene to be procured locally.

FEATURES

Construction Details:

The centrifuge extractor is a safe, portable model of sufficient size for quick and accurate determination of bitumen, corrosion-resistant model which can be used both in the field and the laboratory. It consists of removable cast aluminium rotor bowl mounted on a vertical shaft. A filter paper disc is pressed in between the nut. The bowl assembly is enclosed in a housing mounted on a cast aluminium body. The gears operate in oil bath with splash lubrication.

Weight : 40 kg Approx.

Essential Accessories At Extra Cost:

  1. Filter paper – Box of 100
  2. Electronic Balance ( Capacity : 6000 gms, Accuracy : 0.1 gm)
  3. Benzene or Toluene to be procured locally.

PRODUCT VIDEO

WORKING PRINCIPALNew

A bitumen extractor is a device used to determine the percentage of bitumen in a bituminous pavement mixture. The process involves extracting the bitumen binder from the aggregate mixture by using a solvent, typically trichloroethylene or tetrachloroethylene, and then measuring the weight of the extracted bitumen to calculate its percentage in the original sample.

Here is a general outline of how to use a bitumen extractor manually:

Equipment Required:

  • Bitumen extractor apparatus
  • Aggregate sample
  • Solvent (trichloroethylene or tetrachloroethylene)
  • Balance

Procedure:

  1. Prepare the Apparatus:
    • Ensure that the bitumen extractor apparatus is clean and in good condition.
    • Assemble the extractor according to the manufacturer’s instructions.
  2. Sample Preparation:
    • Take a representative sample of the bituminous mixture.
    • Weigh the sample accurately on a balance and record the weight.
  3. Extraction Process:
    • Place the sample in the extractor basket or thimble.
    • Add the solvent to the extractor flask or chamber.
    • Set up the heating source (if applicable) to heat the solvent. Be cautious with heating solvents as they are flammable and harmful if inhaled.
    • Lower the sample into the solvent and start the extraction process. The solvent will dissolve the bitumen from the sample.
    • Allow the extraction process to continue for a specified period, usually a few hours, to ensure complete dissolution of the bitumen.
  4. Bitumen Recovery:
    • Once the extraction process is complete, remove the extractor basket or thimble from the solvent.
    • Rinse the extracted sample with fresh solvent to remove any remaining bitumen residue.
    • Dry the sample in an oven to remove any remaining solvent.
  5. Weighing:
    • Weigh the extracted sample (containing bitumen) accurately on a balance after drying.
    • Record the weight of the extracted bitumen.
  6. Calculations:
    • Calculate the percentage of bitumen in the original sample using the following formula: Percentage of Bitumen=Weight of Extracted Bitumen Weight of Original Sample×100
  7. Cleanup:
    • Clean the apparatus thoroughly after use to remove any residues and ensure it is ready for the next test.

It’s crucial to follow safety guidelines when handling solvents and operating the extractor to prevent any accidents or exposure to harmful substances. Additionally, always refer to the specific instructions provided by the manufacturer for your bitumen extractor for accurate and safe usage.
