Cement Sampler VSLIC-C100

short info

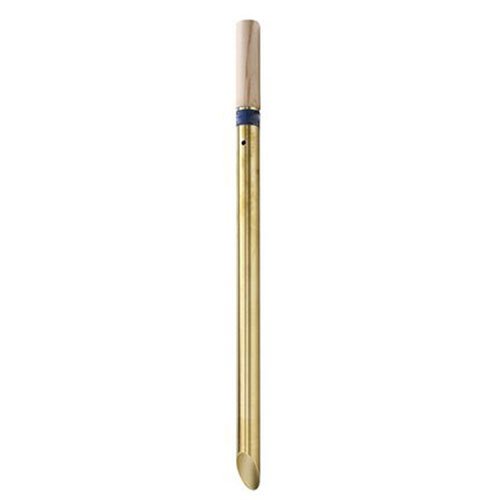

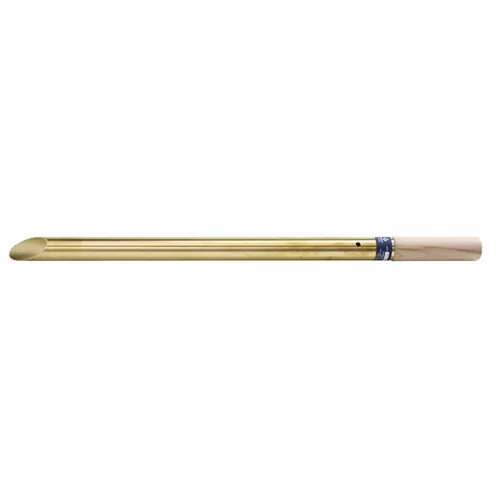

It is used for sampling of cement from bags and consists of a brass tube approximately 28 mm inside diameter. It carries wooden handle at one end and is beveled at the other end. An air hole is provided near the handle. The volume of the sampling tube is approximately 300cc. and it can collect approximately 750g of cement in one operation.

Standard

IS : 3535-1966, (ASTM C-183)

Model

VSLIC-C100

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

It is used for sampling of cement from bags and consists of a brass tube approximately 28 mm inside diameter. It carries wooden handle at one end and is beveled at the other end. An air hole is provided near the handle. The volume of the sampling tube is approximately 300cc. and it can collect approximately 750g of cement in one operation.


Related Searches

SPECIFICATIONS

The Cement Sampler allows fast sampling from tankers etc.. It was designed for the cement industry but can be used on a wide range of free-flowing powders.

The sample is a cross-section through the tanker (from top to bottom). The sample size is approximately 8 liters from a bulk depth of 1.5 meters.

Easy handling: The open tube will penetrate the product to the desired depth. When retracting the patented valve is closed and the sample inside the tube can be withdrawn.

FEATURES

  • The Vertex Packaged Cement Tube Sampler is made of brass and used for collecting cement samples from packages.
  • The Vertex Bulk Cement Sampler is used to collect cement samples from bulk storage or bulk shipments.
  • The sampler consists of 2 brass concentric tubes and each tube has slots.
  • The inner tube rotates to close the slots and take the sample.

PRODUCT VIDEO

WORKING PRINCIPALNew
