quick info

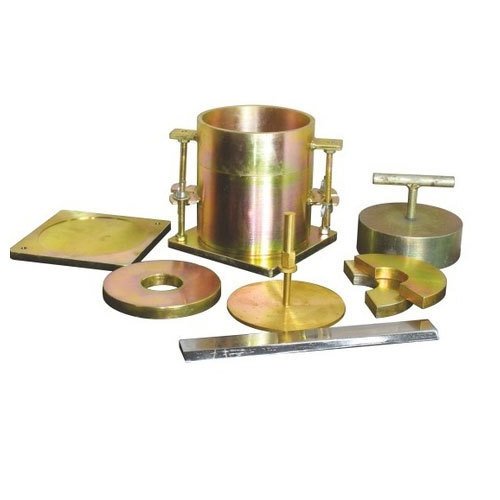

CBR Mould (BS Standard)

Ref. Standard

BS 1377-4

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-S116

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

California Bearing Ratio (CBRMould Set is for use in CBR testing. These moulds are made As per BS Standard

SPECIFICATIONS

Description Dimensions Weight (approx.)

CBR Type Mould BS (modified proctor) / Vibrating Hammer Mould EN, internal dia.: 152 mm,
internal height: 127mm, supplied complete with extension collar and solid base plate



200x200x450 mm



8.5 kg

C- Spanner .E, 2 pcs

200x300x100 mm 1 kg

Assembly tool for Base Plate

350x30x15 mm 1 kg
Cutting Collar, BS 200x200x75 mm 1.5 kg
Compaction plug with T handle BS, 150 mm dia. x 50 mm height 200x200x300 mm 7.5 kg
Annular Surcharge Weight BS/EN, 2 kg 200x200x100 mm 2.6 kg
Split Surcharge Weight BS/EN, 2 kg 200x200x100 mm 2.6 kg
CBR Perforated Base Plate BS 200x200x100 mm 2 kg
Straightedge 300x30x5 mm 300x30x5 mm 1 kg
Filter Paper for CBR Test No:1 x 150 mm dia. (Pack of 100) 200x200x20 mm 3 kg

FEATURES

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
