CBR Apparatus Mould (ASTM Standard)

Ref. Standard

ASTM D 1883 AASHTO T 193

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-S115

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

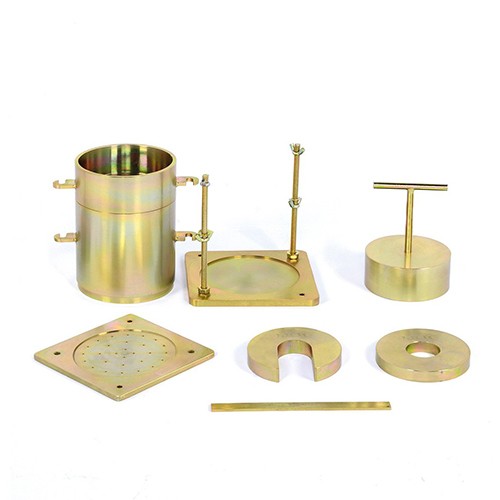

California Bearing Ratio (CBR) Mould Set is for use in CBR testing. The set consists of a 6x7in (152x178mm) Mould Body, 2in (51mm) Compaction Collar, and a perforated Mould Base with threaded rods and wing nuts. Constructed of heavy, rust-resistant plated steel. The Mould Body, Collar, and Base components are also available individually. The set and components can be used with Soil Compaction Hammers or with the Mechanical Soil Compactor.

SPECIFICATIONS

Description Dimensions Weight (approx.)
CBR Mould ASTM / AASHTO, plated steel mould body with 6″ (152.4 mm) dia. x 7″ (177.8 mm)

height, supplied complete with extension collar and perforated base plate

200x200x450 mm

8.5 kg

Spacer Disc with T handle ASTM, 150.8 mm dia. x 61.4 mm height” 200x200x300 mm 7.5 kg
Annular Surcharge Weight ASTM, 2.27 kg 200x200x100 mm 2.3 kg
Slotted Surcharge Weight ASTM, 2.27 kg 200x200x100 mm 2.3 kg
CBR Solid Base Plate ASTM 200x200x100 mm 2.1 kg
Straightedge 300x30x5 mm 300x30x5 mm 1 kg
Cutting Edge 200x200x75mm 1.5 kg
Filter Paper for CBR Test

No: 1×152,4 mm dia. (Pack of 100)

200x200x20 mm 0.3 kg
Filter screen, 144 mm dia. 150 μm mesh ASTM 150x150x20 mm 0.1 kg
