Best Premium Large Box Direct Shear Test Apparatus
VSLIC-S223
Copyright @2023 Vertex Group
Copyright @2023 Vertex Group
short info
Supplied with Load Frame, shear box assembly, set of weight, High sensitivity Proving Ring for shear load measurement, capacity : 30 kN (3000 kgf), Consolidation Dial Gauge 0.01 mm x 25 mm, Strain Dial Gauge 0.01 mm x 25 mm with magnetic spacer, etc.
Suitable for operation on 415 volts, 50 Hz, 3 phase, A.C. Supply.
Standard
IS:2720 (Part 39)/ IS 11593
Model
VSLIC-S223
Origin
Indian
Make/ OEM
VERTEX
Warranty
This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.
All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

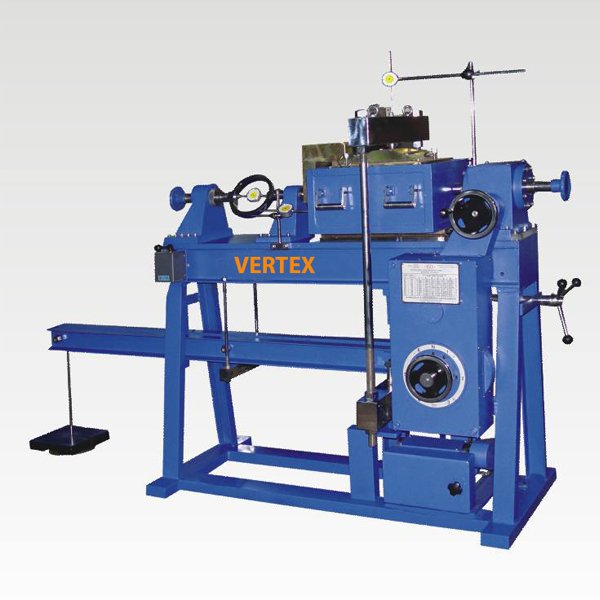

Vertex Large Box Direct Shear Apparatus test, the failure of the soil sample in shear is caused along a predetermined plane. Test is performed as per IS 2720 part XIII The normal load, strain and shearing force are measured directly during the test. It is also used to estimate residual stress of soil. The direct shear testing apparatus utilizes a square box divided horizontally into two halves. The box containing the sample is placed in a water jacket and subjected to constant normal load while a horizontal force is applied till the specimen fails along the plane of juncture of the two halves. A number of specimens are tested under different loads and from the data obtained the angle of internal friction and shearing strength of the soil can be evaluated. Following pages give details of both hand operated and motorised versions of direct shear test apparatus conforming to different Indian Standard Specifications.
This is required for testing 300 mm x 300 mm x 150 mm soil sample containing gravel with particle size more than 4.75 mm.
Load Frame Fitted with a motor, gear box & loading lever system. Shear Load Capacity : 30kN (3000kgf) Vertical Load
Capacity : 30kN/m2 (3.0 kg / sq. cm), No. of Speeds : 72-ranging from 0.0014 mm/min to 10.16 mm/min. change gears : 12
Shear Box assembly for square specimen size 30 x 30 x 15cm, 1 off
Optional
100mm shear box assembly complete with porous stone and gripper plate The unit provides 72 different constant rates of strain for shear load ranging from 0.0014 mm/min. to 10.16 mm/min and is suitable for carrying out residual shear strength test.
The equipment comprises of the following :-
Loading Unit having a normal load capacity of 3 kg/cm² through lever and shearing load capacity upto 5000 kg maximum.
Shear box assembly in two halves, complete with two guide pins and three spacing screws.
Shear box housing, complete with two ball roller strips.
Two perforated gripper plates.
Two plain gripper plates.
Two plain grid plates, one for top and one for bottom.
Two perforated grid plates one for top and one bottom.
One base plate.
One loading pad with lifting handles.
One set of slotted weights to give a maximum normal stress intensity of 3 kg/cm² on the specimen through lever system.
Suitable for operation on 220 V, 50 Hz, single phase supply. Supplied without Proving Ring and dial gauges which are to be ordered separately.
Vertex Large Box Direct Shear Apparatus test, the failure of the soil sample in shear is caused along a predetermined plane. Test is performed as per IS 2720 part XIII The normal load, strain and shearing force are measured directly during the test. It is also used to estimate residual stress of soil. The direct shear testing apparatus utilizes a square box divided horizontally into two halves. The box containing the sample is placed in a water jacket and subjected to constant normal load while a horizontal force is applied till the specimen fails along the plane of juncture of the two halves. A number of specimens are tested under different loads and from the data obtained the angle of internal friction and shearing strength of the soil can be evaluated. Following pages give details of both hand operated and motorised versions of direct shear test apparatus conforming to different Indian Standard Specifications.
This is required for testing 300 mm x 300 mm x 150 mm soil sample containing gravel with particle size more than 4.75 mm.
Optional
100mm shear box assembly complete with porous stone and gripper plate The unit provides 72 different constant rates of strain for shear load ranging from 0.0014 mm/min. to 10.16 mm/min and is suitable for carrying out residual shear strength test.
The equipment comprises of the following :-
Loading Unit having a normal load capacity of 3 kg/cm² through lever and shearing load capacity upto 5000 kg maximum.
Shear box assembly in two halves, complete with two guide pins and three spacing screws.
Shear box housing, complete with two ball roller strips.
Two perforated gripper plates.
Two plain gripper plates.
Two plain grid plates, one for top and one for bottom.
Two perforated grid plates one for top and one bottom.
One base plate.
One loading pad with lifting handles.
One set of slotted weights to give a maximum normal stress intensity of 3 kg/cm² on the specimen through lever system.
Suitable for operation on 220 V, 50 Hz, single phase supply. Supplied without Proving Ring and dial gauges which are to be ordered separately.
FEATURES
Vertex Large Box Direct Shear Apparatus test, the failure of the soil sample in shear is caused along a predetermined plane. Test is performed as per IS 2720 part XIII The normal load, strain and shearing force are measured directly during the test. It is also used to estimate residual stress of soil. The direct shear testing apparatus utilizes a square box divided horizontally into two halves. The box containing the sample is placed in a water jacket and subjected to constant normal load while a horizontal force is applied till the specimen fails along the plane of juncture of the two halves. A number of specimens are tested under different loads and from the data obtained the angle of internal friction and shearing strength of the soil can be evaluated. Following pages give details of both hand operated and motorised versions of direct shear test apparatus conforming to different Indian Standard Specifications.
This is required for testing 300 mm x 300 mm x 150 mm soil sample containing gravel with particle size more than 4.75 mm.
Optional
100mm shear box assembly complete with porous stone and gripper plate The unit provides 72 different constant rates of strain for shear load ranging from 0.0014 mm/min. to 10.16 mm/min and is suitable for carrying out residual shear strength test.
The equipment comprises of the following :-
Loading Unit having a normal load capacity of 3 kg/cm² through lever and shearing load capacity upto 5000 kg maximum.
Shear box assembly in two halves, complete with two guide pins and three spacing screws.
Shear box housing, complete with two ball roller strips.
Two perforated gripper plates.
Two plain gripper plates.
Two plain grid plates, one for top and one for bottom.
Two perforated grid plates one for top and one bottom.
One base plate.
One loading pad with lifting handles.
One set of slotted weights to give a maximum normal stress intensity of 3 kg/cm² on the specimen through lever system.
Suitable for operation on 220 V, 50 Hz, single phase supply. Supplied without Proving Ring and dial gauges which are to be ordered separately.
PRODUCT VIDEO
WORKING PRINCIPALNew
Shear Strength of Soil by Direct Shear Test
Shear strength of a soil is its maximum resistance to shearing stresses. The shear strength is expressed as
Where C’ = Effective cohesion
= Effective stress = Effective angle of shearing resistance
Using direct shear test, one can find out the cohesion and angle of internal friction of soil which are useful in many engineering designs such as foundations, retaining walls, etc.
This test can be performed in three different drainage conditions namely unconsolidated-undrained, consolidated-undrained and consolidated-drained conditions. In general, cohesionless soils are tested for direct shear in consolidated drained condition.
Apparatus Required for Direct Shear Test
Apparatus required for conduction direct shear test are
Shear box
Shear box container
Base plate with cross groves on its top
Porous stones (2 Nos)
Plain Grid plates (2Nos)
Perforated grid plates (2Nos)
Loading pad with steel ball
Digital weighing machine
Loading frame with loading yoke
Proving ring
Dial gauges (2 Nos)
Weights
Tampering Rod
Spatula
Rammer
Sampler
Fig 1: Direct Shear Test Apparatus
Test Procedure of Direct Shear Test
Test Procedure of Direct shear test contains following steps:
Collect the soil specimen which is either undisturbed or remolded. The sample should be taken using sampler and Rammer. If cohesionless soil is taking then sampler and rammer are not required.
The inner dimensions of sampler should be 60 mm x 60 mm in plan which are also the inner dimensions of shear box. The Thickness of box is about 50 mm while the thickness of sample should be 25mm.Fig 2: Shear Box,Porous Stones, Grid Plates, Loading pad
Now attach the two halves of the shear box with locking pins and place the base plate at the bottom.
Above the bottom plate, Place the porous stone and above it place the grid plate. Plain grid plates are used for undrained conditions while perforated grid plates are used for drained conditions.
Now we have baseplate, porous stone and grid plate in the shear box. Weigh the box at this stage and note down.
After that place the soil specimen above the grid plate. Undisturbed sample is directly transferred to shear box. If sandy soil is using, place it layers wise and tamper the each layer to get the required density.
Note down the weight of shear box with soil specimen.
Above the soil specimen, place the upper grid plate, porous stone and loading pad one above the other.Fig 3: Different Layers Positions in Shear Box
Now the whole box is placed in a container and mounted on the loading frame.
Proving ring is arranged in such a way that it should contact the upper half of the shear box.
Loading yoke is placed on the steel ball of loading pad of shear box.
Two dial gauges are fitted one to the container for measuring shear displacement and other one is to the loading yoke for measuring vertical displacement.
Now locking pins are removed from the shear box and spacing screws are placed in their respective positions of the box.Fig 4: Applying Load on Specimen
The upper half of the box is raised slightly with the help of spacing screws. The spacing is decided depending upon the maximum size of particle.
Now apply the normal stress which is generally 25 kN/m2. Also apply the shear load at a constant rate of strain.
Now the box starts reacting to loads applied and for every 30 seconds note down the readings of proving ring and dial gauges.
If the proving ring reaches maximum and suddenly drops it, means the specimen is failed. Note down the maximum value which is nothing but failure stress.
For some soils, failure point is taken at 20% of shear strain.
Finally remove the box and measure the water content of the specimen.
Repeat the same procedure for different normal stresses of 50, 100, 150,200,250,300,400 kN/m2
Observations and Calculations for Direct Shear Test
Calculations are to be done using the observations taken from the test as follows:
Size of the box =
Area of the box =
Thickness of specimen =
Mass of specimen =
Volume of specimen =
Bulk Density of soil =
Dry density of soil =
Void ratio =
Mass of box + base plate + porous stone + grid plate =
Mass of box + base plate + porous stone + grid plate + Soil specimen =
Calculate the shear stress using below tabulated observations:
S.No
Elapsed time
Horizontal dial gauge reading
Horizontal displacement
Vertical dial gauge reading
Vertical displacement
Proving ring reading
Shear force
Shear stress
Now determine the shear stress at failure for different normal stress values:
Test no.
Normal stress(kN/m2)
Shear Stress at Failure (kN/m2)
Shear Displacement at Failure
Initial Water Content
Final Water Content
Now plot a graph between normal stress and shear stress by taking normal stress on abscissa and shear stress at failure on ordinate. The graph looks like as shown below.
Fig 5: Graph plotted between Normal Stress and Shear stress
From the graph cohesion intercept (c’) and angle of shearing resistance () can be known and shear strength (s) can be calculated from the formula.
Result of Direct Shear Test
Shear strength of the given soil sample is = ______________ kN/m2.
