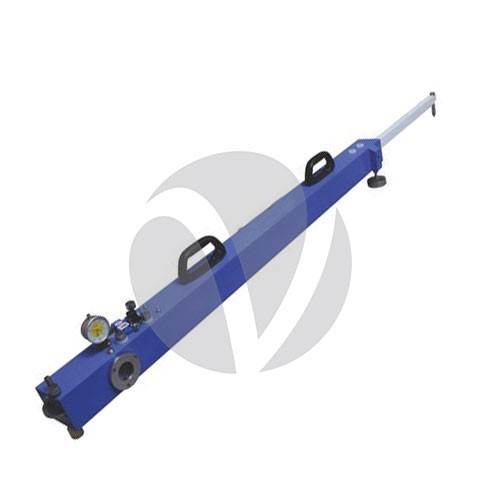

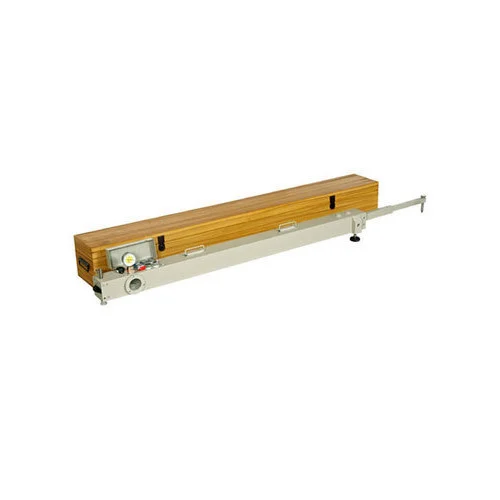

Vertex Benkelman Beam Apparatus utilizes the Technique of using a balanced beam in conjunction with a suitable vehicle for measuring road flexure with the Benkelman Beam measurement method.

Ref. Standard

As Per IS Standard

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-B131

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

The vertical deflection of the road surface is measured after a defined load of 5 tons has rolled away. It is a quasi-static procedure. The vertical deflection is recorded by a special measuring beam, which is mounted on a support frame that can be rotated at a ratio of 1:2.

SPECIFICATIONS

  • Main Body            :   55 ” (1,397 mm) long, black finish aluminum.
  • Probe Beam         :   Aluminum, 8 ft. (2.4 m) long, telescopes into case for storage.
  • Probe Fulcrum     :   Ball pivot bearing, gives lever ratio of 2:1.
  • Vibrator System   :   Operating switch mounted on top of instrument section (requires 4 “D” size batteries).
  • Dial Indicators     :   Compensated for direct reading (not included).
  • Leveling Wheel    :   Adjusts beams to proper elevation.
  • Open Length        :  12 ft. (3.7 m) l.
  • Weight                 :   Net 29 lbs. (13.2 kg).
