short info

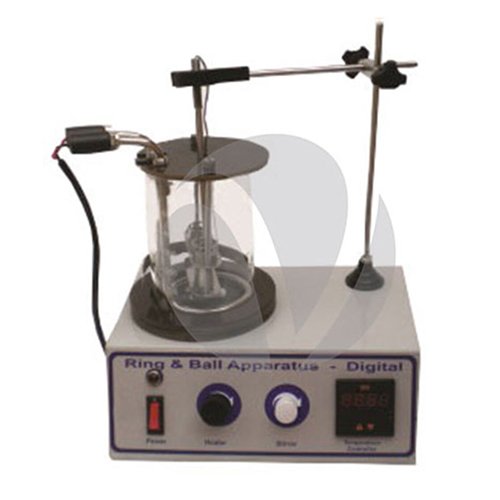

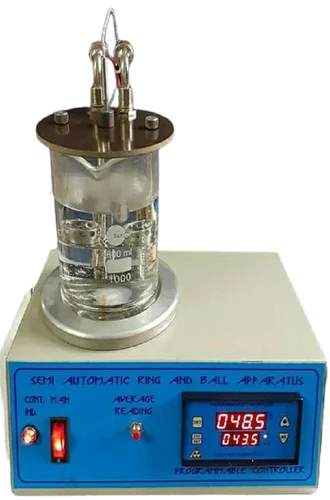

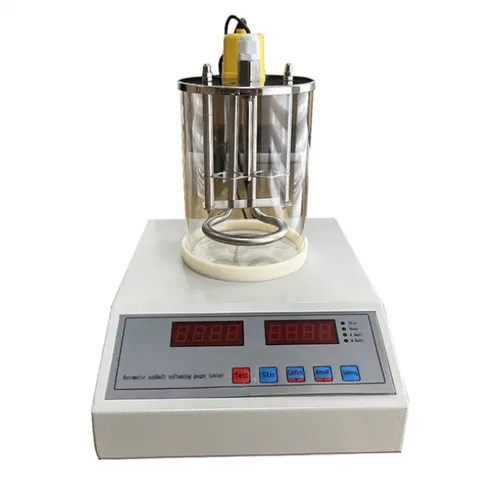

The Automatic Ring and Ball Apparatus is an innovative microprocessor-controlled automatic tester which is used to determine the softening point of bituminous materials using water or glycerol as the heating fluid.

Standard

EN 1427; ASTM D36; AASHTO T53

Model

VSLIC-B102

Origin

Indian

Make/ OEM

VERTEX

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

The softening point determines a disk of the sample held within a horizontal ring is forced downward at a distance of 25.4 mm under the mass of a steel ball as the sample is heated at a prescribed rate in a water or glycerine bath.

The softening point is taken by two suitably positioned light barriers and the temperature is measured by a PT100 sensor. Uniform temperature distribution in the vessel is maintained by a magnetic stirrer, equipped with an adjustable speed control system and the temperature gradient is strictly maintained during the test by the electronic system conforming to the relevant standards.
Software permits to select the test method and the test parameters, run the test automatically, store, retrieve and print data, diagnose and calibrate the instrument. The additional cooling system permits to quickly cool down the sample allowing to handle the glassware and to perform the number of tests during a day by reducing the dead times between consequent analysis.
The apparatus consists of a heater, cooling system, electric lifting system, and magnetic stirrer with speed control, temperature probe, glass beaker, ring, and ball support, a brass ring with the steel ball and ball centering guides (2 pcs. each), light barrier system, microprocessor system and large graphic display with touch screen, RS 232 C port for PC or printer.



SPECIFICATIONS

  • Microprocessor control.
  • Automatic programmable test sequences for water or glycerol.
  • Large graphic display 240×128 pixel.
  • Memory up to 50 tests.
  • Language selection.

FEATURES

PRODUCT VIDEO

WORKING PRINCIPALNew
